User Manual for Altman 1KAF 6" Focusing Fresnel Click to enlarge the picture
Contents of the user manual for the Altman 1KAF 6" Focusing Fresnel
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman 1KAF 6" Focusing Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

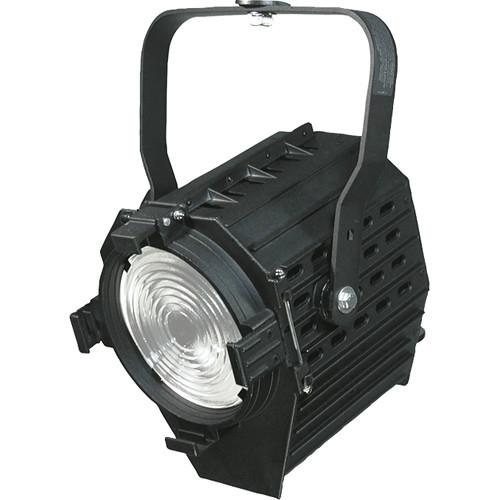

Product description The 1KAF 6" Focusing Fresnel from Altman is a basic set-lighting luminaire for stage, studio and television. The 1KAF produces a soft edge beam which varies in diameter from 5.7 feet to 39 feet at a throw distance of 25 feet. The unit is designed for operation with high intensity, tungsten halogen HPL lamps up to 750W. This luminaire is used in theater for acting area lighting where beam shaping is not required, or in the studio as a key light or back light when a smooth even beam is required. Constructed of cast aluminum and designed to withstand the rigors of traveling event production, the 1KAF is also used in nightclubs, museums and showrooms where high intensity, soft-edged controlled lighting is required. In the Box Altman 1KAF 6" Focusing Fresnel (HPL) Safety Cable Gel Frame Safety Screen for Fresnel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman 1KAF 6" Focusing Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman 1KAF Specs | Material | Die-cast aluminum | | Rating | 120-240 VAC or DC, 8.3/4.2 A, 750 W Max. | | Socket (Lampholder) | HPL | | Lens (Condenser) | 6" Heat Resistant Fresnel | | Reflector (Mirror) | Alzak Aluminum, spherical design | | Yoke | Flat aluminum with 1/2" bolt hole | | Cable | 36" 12/3 | | Certifications | U.L., c.U.L. and CE | | Focusing | Spot to flood focus adjustment with quick set adjustment lever | | Dimensions | 12.5 x 10.75 x 8.5" (32 x 27 x 22 cm) | | Weight | 9.0 lb (4.1 kg) |
