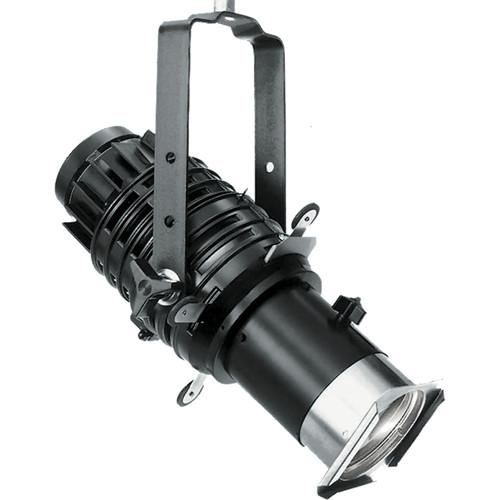

User Manual for Altman 3.5Q-12-MT Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman 3.5Q-12-MT Ellipsoidal
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman 3.5Q-12-MT Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This white-finished 3.5Q-12-MT 18 Degree Ellipsoidal from Altman is a compact, lightweight spotlight which produces an adjustable sharp or soft edged beam. The 3.5Q series is designed for today's long life, high-intensity tungsten halogen lamps up to 575W. Four adjustable integrated stainless steel framing shutters provide beam shaping ability and the pattern slot and (gobo) holder provide the ability to project visual images. The 3.5Q is compatible with Altman Lighting's optional STD-600 yoke mounted DMX dimmer. While primarily designed for theater and studio applications, the 3.5Q Series is also useful in displays, show windows, museums and nightclubs where precision controlled accenting is desirable. - Attributes
-
- Compatible with 375W and 575W compact filament lamps
- Heat-resistant Plano Convex Pyrex lenses
- Aluminum die cast and sheet metal construction
- Axially-mounted lamp base
- Double flatted specular Alzak aluminum reflector
- Tool-free interchangeable lens barrels
- Three 36" Teflon lead wires
- Up to 25' of optional Hi-Temp rubber cable
- Color frame and safety cable with spring clip included
- ETL listed for 575W
- Photometrics
- 10 fc @ 30' (9.0 m) with a beam diameter of 10' (3.0 m)
In the Box Altman 3.5Q-12-MT Ellipsoidal (18 Degree, White) Color Frame for 3.5" Ellipsoidal xucdsbcfxsvqeuxaztcdzybryazfaubdrfab Safety Cable with Spring Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman 3.5Q-12-MT Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman 3.5Q Ellipsoidal Specs | Material | Corrosion-resistant die-cast aluminum and sheet steel construction | | Lamps | Up to 575 W, fully adjustable | | Lamp Base | G9.5 - accessible via hinged, removable door | | Lens | Plano Convex Pyrex glass | | Reflector | Double flatted specular Alzak aluminum | | Beam Angle | 18° | | Yoke | Rigid flat steel with dual handles | | Cable | Three 36" Teflon lead wires in black fiberglass sleeving | | Focusing | Locking heat-resistant knob | | Finish | Black epoxy Sandtex electrostatic application. | | Accessories | Accepts optional drop-in pattern holder and standard 4.1" (104.7 mm) accessories
Accepts 2.31" (58.7 mm) diameter metal patterns with 1.87" (47.6 mm) image size | | Approvals | ETL | | Power | 120-240 VAC, 50/60 HZ, 4.8-2.4 A | | Dimensions | 15.6-16.8 x 9.0 x 13.5" (40-43 x 23 x 34 cm) with shutter blades and yoke extended
Color frame: 4.1 x 4.1" (104.7 x 104.7 mm) | | Weight | 9 lb (4.0 kg) |
