User Manual for Altman 39W MINI-ODEC Miniature Outdoor Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman 39W MINI-ODEC Miniature Outdoor Ellipsoidal
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman 39W MINI-ODEC Miniature Outdoor Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

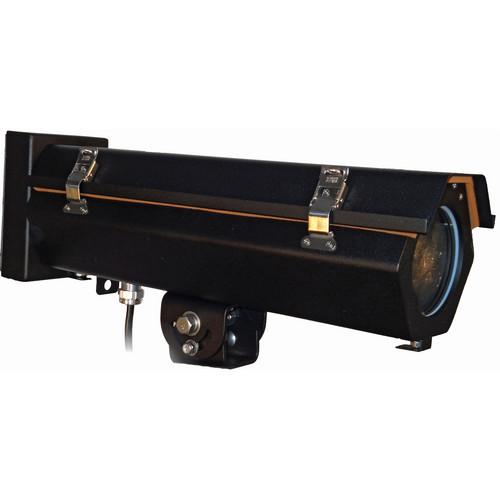

Product description The Altman 39W Mini-ODEC Miniature Outdoor Ellipsoidal is a pattern projector with a 22 - 48° variable zoom focus range. The anti-reflective coated, high performance lens moves smoothly and evenly on steel guide rods with Teflon bushings to provide accurate alignment, delivering bright, crisp patterns or graphic projections via optional steel or glass gobo patterns. Stainless steel framing shutters are employed for precise cropping of the projected light.The weatherproof MINI-ODEC has an IP65 rating making it virtually impervious to water. It's operational indoors or outdoors at temperatures from -10° to 120°F (-23° to 49°C). Its external housing is constructed of 1/8" heavy-gauge aluminum. - 22 - 48° Zoom focus capabilities
- Low-friction Teflon lens glides
- Utilizes 12,000 hour CDM lamps w/ high CRI
- Low noise, high efficiency electronic ballast
- Easily adjustable stainless steel shutters
- Included pattern holder accepts glass or steel templates
- Lamp centering and Peak / Flat field adjustment
- Compact, rugged welded aluminum and stainless steel fabrication
- Link-Lock latches for security
- Designed for indoor / outdoor applications
- Mounting holes located on bottom of luminaire
- Secured safety loop in fixture body
- ETL and cETL listed for wet locations - IP65 rated
In the Box Altman 39W MINI-ODEC Miniature Outdoor Ellipsoidal (White) Pattern Holder 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman 39W MINI-ODEC Miniature Outdoor Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman MINI-ODEC Specs | Housing | External Housing 1/8" (3.17 mm) heavy gauge aluminum
Latches: Link-lock No. 3, stainless steel
Viewing window: glass, 0.25-inch (6.35 mm) thick | | Material | Corrosion-resistant materials and hardware | | Rating | 120 volt AC operation, 50/60Hz | | Socket | G12 | | Lamp | 39W UV block G12 Ceramic Metal Halide
5kV rated
Lamp alignment: in 3 axis | | Lens | Crown glass (white plate) with anti-reflector coated surfaces | | Photometrics | At 22°: 100 center fc with a 16' (4.8 m) diameter @ 40' (12.2 m)
At 48°: 20 center fc with a 36' (11 m) diameter @ 40' (12.2 m) | | Reflector | Proprietary curve, specular aluminum | | Focusing | Lens movement contained within body, adjustable with brass thumb screws | | Accessory Size | Internal slot: 4.0" (101.6 mm) diameter gel or glass filters
Pattern holder: 2.0" OD (50.8 mm), 1.5" (38.1 mm) image area | | Shutter | Stainless steel shutters, adjustable | | Focusing | Lens movements contained within body, adjustable with heat resistant knob | | Finish | White TGIC polyester | | Operating Conditions | Indoor / outdoor -10 to 120°F (-23° to 49°C). | | Dimensions | 22 x 7.0 x 5.0" (55.8 x 17.78 x 12.7 cm) | | Weight | 15 lb (6.80 kg) |
