User Manual for Altman 75Q-CE Fresnel Light Click to enlarge the picture
Contents of the user manual for the Altman 75Q-CE Fresnel Light
- Product category: Tungsten Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Tungsten Lights
|
User manual for the Altman 75Q-CE Fresnel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

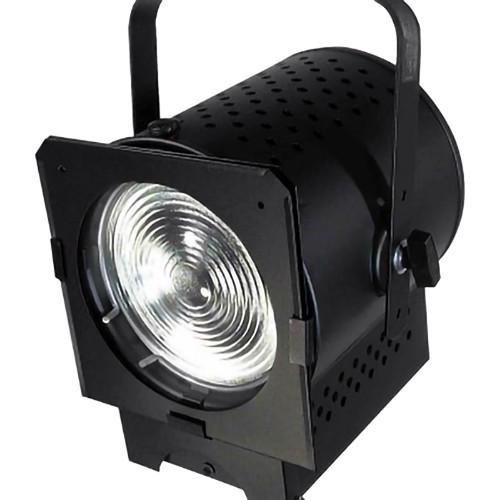

Product description A good choice for theater, museum, club, and public space applications, the 1000W/240V Fresnel Light from Altman is a versatile tungsten light source with an 8" Fresnel lens and expansive 6.7 to 37-degree focusing range for broad flood coverage or spotlight effects. The fixture has a yoke with a 1/2" hole for an optional 5/8" receiver, 1 1/8" Junior pin, or a clamp for hanging. A safety cable is provided for hazard prevention. This version has a Mogul prefocus socket for use with 240 VAC lamps. In the Box Altman 75Q-CE Fresnel Light (1000W/240V) Power Cord (3') Color Frame for 75Q, 175Q wdwwxyrtzybrbaefszzex Steel Safety Cable (36", Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman 75Q-CE Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman 75Q Specs | Material of Construction | Steel | | Lamp | 1000 W max
Hinged tool-less access door | | Socket | Mogul prefocus | | Beam Angle | 6.7 - 37° | | Lens | 8.0" / 20.3 cm Pyrex Fresnel lens with stippling on flat surface | | Reflector | Alzak aluminum, spherical design | | Mounting | 0.5" / 12.5 mm hole on yoke | | Yoke | Steel flat blade | | Finish | Black epoxy sandtex | | Cable | 36" / 91.4 cm Teflon leads in fiberglass sleeving (bare ends) | | Focusing | Bottom-mounted locking thumbscrew | | Photometrics | With 1000 W BVT Lamp
At 6.7°: 272 fc @ 25' / 7.6 m, with beam diameter of 5.3' / 1.6 m
At 37°: 32 fc @ 25' / 7.6 m, with beam diameter of 20.7' / 6.3 m | | Voltage | 240 VAC, 60 Hz, 4.2 A | | Listings | UL, cUL, and CE | | Dimensions | 19 x 11.25 x 11" / 48 x 28.6 x 28 cm (including yoke) | | Weight | 14.5 lb / 6.5 kg |
