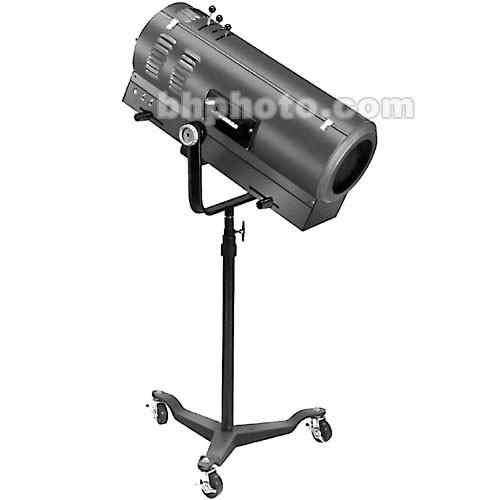

User Manual for Altman Comet Follow Spot with Stand - 410 Watts Click to enlarge the picture
Contents of the user manual for the Altman Comet Follow Spot with Stand
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Comet Follow Spot with Stand contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description A ruggedly constructed medium to long throw 410 watt follow spot, the Comet produces a narrow, hard or soft edged beam which zooms from 2.3° to 12.2°. The Comet can be used in any application where manual control of a lighting beam is required to follow a performer and to vary beam size, quality and color.At its tightest spot setting (with Iris) the Comet throws a beam 80 footcandles, 4 feet in diameter @ 100 feet.
At widest flood, it throws a beam 33 footcandles 21.4 feet in diameter, @ 100 feet. - Vertical tilt of 60° up, 60° down with positive locking knob.
Pans 360° on included stand. - Hinged access door for easy bulb replacement.
- Dual adjustable lenses travel on zinc plated channels.
- Built-in 18-leaf stainlesss steel iris is controlled from top of unit with heat resistant knob.
- 6 Frame color changer allows single or multiple colors to be inserted into beam path.
- Mechanical brass 3 leaf dimmer, top operated with heat resistant knob.
In the Box Altman Comet Follow Spot with Stand - 410 Watts Adjustable castered stand with cable hook 360 Watt, 82 Volt MR-16 Bulb (90-FLE) Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Comet Follow Spot with Stand - 410 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Comet Specs | Rating | 410 watts maximum | | Socket (Lampholder) | G5.3 minature 2-pin with bulb ejector | | Lens (Condenser) | High purity Crown glass | | Reflector (Mirror) | Not applicable | | Mounting | Altman proprietory mount, M12 thread | | Yoke | Flat steel fork with dual locking dog tilt handles | | Cable | 25', 18 gauge with 3 prong Edison plug | | Focusing | Dual lens carriers on zinc plated channels, 3 alignment screws | | Weight | Head: 55 lbs (24.8 kg)
Yoke and Stand: 36 lbs (16.2 kg) | | Dimensions | Head and controls : 34.5 x 15.75 x 17.5" (88 x 40 x 44 cm)
Stand and Yoke: 57.5" (146 cm) Max height, 45.5" (116 cm) Min height | | | | Package Weight | 120.0 lb | | Box Dimensions (LxWxH) | 45.0 x 28.5 x 19.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
