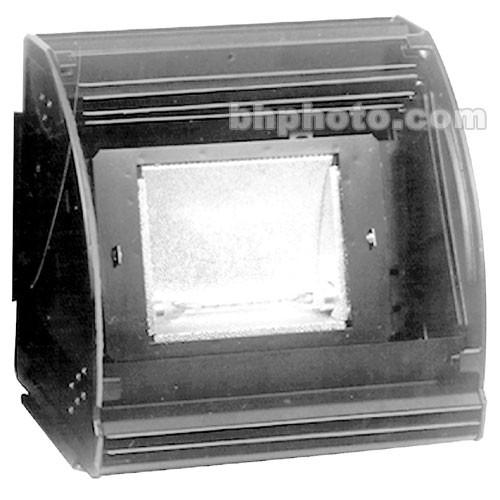

User Manual for Altman Focusing Cyc Borderlight, 1 Section - 300W-1.5KW Click to enlarge the picture
Contents of the user manual for the Altman Focusing Cyc Borderlight, 1 Section
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Focusing Cyc Borderlight, 1 Section contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman Focusing Cyc is a lightweight, compact quartz-halogen hanging or floor mounted fixture. It provides an even wash of light on cycloramas and backdrops, but it can also be used as a multi-purpose flood/fill light for stage and studio lighting applications. The Focusing Cyc has innovative details and features that enhance its versatility, efficiency, and performance. With a wide range of non-proprietary bulbs (available separately) of varying wattage, length, and width to choose from, the versatile Focusing Cyc can easily replace a multitude of standard light fixtures. With a 1500W FDB bulb burning horizontally, this light will provide a 26 footcandles beam of light 66 feet in diameter from 25 feet. - The housing has a pair of rugged tool-free spring-latches which allow multiple units to be safely locked together in a number of ways: a straight row, curved horizontally, curved vertically, or any combination of the three.
- The convenient, fold-down carry handle doubles as a loop for a safety cable, and the heat resistant non-skid feet are height adjustable. This eliminates the need for floor trunnions for most ground cyc applications.
- The optional filter frame holder is hinged and removable without the use of tools.
- A wide selection of yokes and other hanging hardware are also available to accommodate virtually all sky cyc mounting configurations.
- Adjustable lampholders allow the fixture to accept T-3 to T-8 lamps of three different lengths: 4-11/16", 5-5/8" and 6-9/16".
- Each compartment has a highly polished, peened reflector that pivots about the bulb for precision focusing, and a heat resistant knob with indexed position markings is located on the rear of the housing for adjusting and locking the reflector into position.
- An optional accessory for the Focusing Cyc is a unique clip that safely secures stripped glass color frames.
- The super thin safety screen is designed to allow maximum light output, and is readily removable for easy access to the bulb for quick installation and replacement.
In the Box Altman Focusing Cyc Borderlight, 1 Section - 300W-1.5KW Steel Safety Cable (36", Black) cayvtcxvfvzqzaetrdydxx 1 Year Manufacturer's Warranty Note: Bulb and power plug not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Focusing Cyc Borderlight, 1 Section - 300W-1.5KW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Focusing Cyc Specs | Rating | 300, 500, 650, 750, 1000 watts -- 1000 watts maximum | | Socket (Lampholder) | R7s Double-ended, size adjustable for 4-11/16, 5-3/8 and 6-9/16" length bulbs | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | Peened specular aluminum with heat sink | | Mounting | Pipe clamp, hanging arms
Hi-temperature height adjustable rubber feet | | Yoke | Optional | | Cable | 3' with black fiberglass sheathing, no plug | | Focusing | Reflector pivots with rear mounted hi-temp plastic lock knob | | Weight | 10.5 lb (4.8 kg) without yoke | | Dimensions | 11.75 x 9 x 12" (30 x 23 x 30 cm) without yoke |
