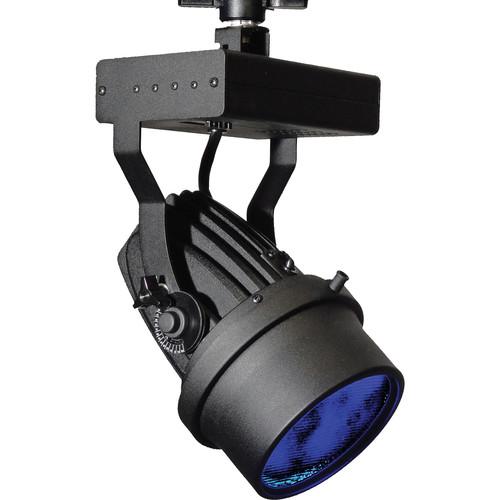

User Manual for Altman IQ38 Spectra PAR 50W RBGA LED Light - Pipe Mount Click to enlarge the picture
Contents of the user manual for the Altman IQ38 Spectra PAR 50W RBGA
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman IQ38 Spectra PAR 50W RBGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description Certified for use for theatrical and architectural applications, the Altman IQ38 Spectra PAR 50W RBGA LED Light utilizes red, green, blue, and amber LED emitters for user-selectable and pre-programmed single colors and various color mixes with feed-through ability with its 5-pin XLR connectors. Its rugged die-cast, extruded aluminum housing features a 4.68" internal accessory holder which accepts a wide variety of optional accessories including lenses, grids, filters and barn doors. With push button addressing, the IQ38 can be controlled by both DMX and RDM protocols. Its multi-voltage power supply allows it to be used virtually anywhere in the world. - Features
-
- PAR 50W RBGA LED Light
- Convection cooled
- Internal accessory holder for up to 3 accessories
- On-board multi-voltage power supply 100-240 VAC
- Feed through data capabilities using 5-pin XLR connectors
- Compatible with DMX and RDM protocols
- User selectable 8 and 16-bit personalities for smooth dimming
- Push button addressing
- Pre-programmed modes for fixed colors, timed color changes and strobes
- ETL and cETL listed
In the Box Altman IQ38 Spectra PAR 50W RBGA LED Light - Pipe Mount (White) Internal Accessory Holder Mini Safety Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman IQ38 Spectra PAR 50W RBGA LED Light - Pipe Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman IQ38 Specs | Materials | Die-cast aluminum construction | | Light Source | Luxeon Rebel full RGBA LEDs (50W) | | Lens | Borosilicate glass | | Yoke | Rigid flat steel with locking-dog tilt handle | | Data Ports | DMX and RDM via 2 male and female flush mount 5-pin XLR receptacles | | Accessory Size | 4.68" (118.8 mm) | | Power Cable | 6.0' (1.8 m) With molded Edison plug | | Photometrics | 108 fc/ 1,158 lux at 10' (3.0 m) with a 3.5 x 3.5' (1.1 x 1.1 m) field size
48 fc/ 515 lux at 15' (4.6 m) with an 5.3 x 5.3' (1.6 x 1.6 m) field size
27 fc/ 289 lux at 20' (6.1 m) with a 7.1 x 7.1' (2.1 x 2.1 m) field size
17 fc/ 185 lux at 25' (7.6 m) with an 8.8 x 8.8' (2.7 x 2.7 m) field size | | Finish | White TGIC Polyester (electrostatic application) | | Approvals and Compliance | ETL and cETL listed | | Voltage | 100-240 VAC | | Dimensions | Light w/o yoke:
8.0 x 6.12 (20.32 x 15.54 cm) (L x D)
Light with yoke:
10.87 x 8.37 x 8.0" (27.6 x 21.25 x 20.32) (L x W x D)
Lens diameter: 5.0" (12.7 cm) | | Weight | 8.0 lb (7.26 kg) |
