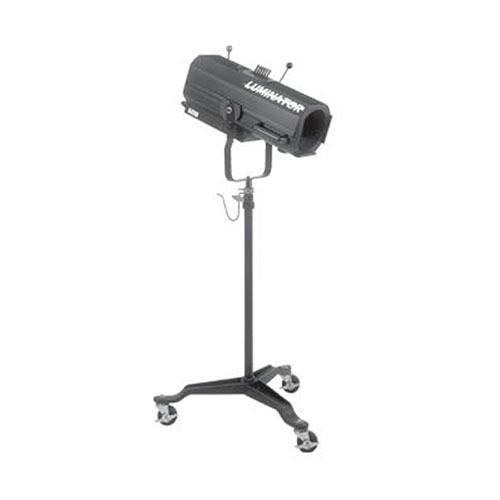

User Manual for Altman Luminator Follow Spot with Castered Stand - 410 Watts Click to enlarge the picture
Contents of the user manual for the Altman Luminator Follow Spot with Castered
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Luminator Follow Spot with Castered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description A ruggedly constructed short to medium throw 410 watt follow spot, the Luminator produces a narrow, hard or soft edged beam which zooms from 1.3° to 9.3°. The Luminator can be used in any application where manual control of a lighting beam is required to follow a performer and to vary beam size, quality and color.At its tightest spot setting (with Iris) the Luminator throws a beam 106 footcandles, 1.4 feet in diameter @ 60 feet.
At widest flood, it throws a beam 45 footcandles 9.7 feet in diameter, @ 60 feet. - Vertical tilt of 60° up, 70° down with positive locking knob.
Pans 360° on included locking castered stand. - Hinged access door for easy bulb replacement.
- Dual adjustable lenses travel on Teflon and nylon bearings on aluminum channels.
- Built-in 18-leaf iris is controlled from top of unit with heat resistant knob.
- 6 Frame color changer allows single or multiple colors to be inserted into beam path. tooless removal.
- Mechanical 3 leaf dimmer, top operated with heat resistant knob.
In the Box Altman Luminator Follow Spot with Castered Stand - 410 Watts Adjustable castered stand with cable hookNote: Bulb is not included, Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Luminator Follow Spot with Castered Stand - 410 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Luminator Specs | Rating | 410 watts maximum | | Socket (Lampholder) | G5.3 minature 2-pin with bulb ejector | | Lens (Condenser) | Front: 6x12 plano conves, Rear: 3.5x8 plano convex | | Reflector (Mirror) | Not applicable | | Mounting | Altman proprietory mount, M12 thread | | Yoke | Flat steel fork with dual locking dog tilt handles | | Cable | 11.5', 18 gauge with 3 prong Edison plug | | Focusing | Dual teflon and nylon lens carriers on aluminum channels, top operated lock knobs | | Weight | Head and yoke: 28 lbs (12.6 kg)
Stand: 28.75 lbs (12.8 kg) | | Dimensions | Head, controls and yoke: 23.4 x 11.25 x 13" (59 x 29 x 33 cm)
Stand: 59.5" (151 cm) Max height, 47.5" (121 cm) Min height | | | | Package Weight | 72.5 lb | | Box Dimensions (LxWxH) | 27.0 x 24.0 x 5.0" |
