Product description

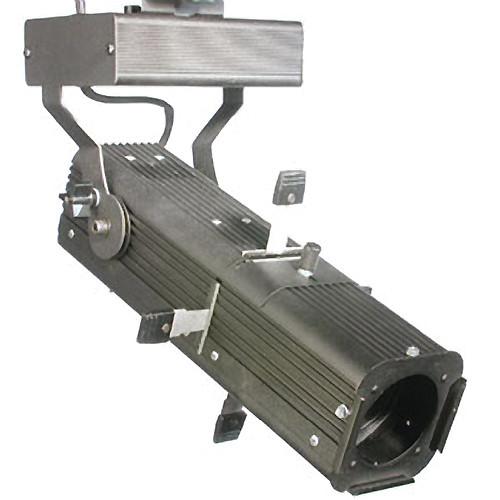

The Altman Master Ellipse profile ellipsoidal provides 20-50° zoom optics and is state of the art in function, style, and efficiency. The fixture is designed and engineered with a number of innovative features enhancing versatility and efficiency without sacrificing performance. The specially designed and bright finished metal reflector maximizes light output and is specifically optimized for Ceramic Discharge Metal Halide lamps. When fitted with a 39 watt HMI bulb (available separately), this 277 Volt fixture will provide a beam of 14 footcandles, 5.2' in diameter @ full spot, from a distance of 25'.
From the same distance, it will throw 9 footcandles 15' in diameter @ full flood.
    Construction
  • Ribbed aluminum, die-cast aluminum housing with black epoxy Sandex, electrostatic finish
    Lens Focus
  • Teflon locking glides are simple to adjust throughout the focusing range
    Ballast
  • Low-noise, high efficiency electronic ballast has a 5 year warranty
    Effects
  • Optional pattern holder for glass or metal patterns
  • Pattern slot accepts size "E" (37.5mm) pattern holder or Master Spin dual-rotating pattern holder
In the Box Altman Master Ellipse CDM - 39 Watts (277V)
  • 3-3/8 x 3-3/8" Color Frame (MCF)
  • 18" Safety Cable with Spring Clip (SC18BK)
  • 4' 3 Conductor AC Cable with Power Plug
  • 1 Year Manufacturer's Warranty for Fixture
  • 5 Year Manufacturer's Warranty for Ballast
  • Note: HMI Bulb and Pipe Clamp not included Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman Master Ellipse CDM - 39 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman Master Ellipse Specs

    Rating 39 watts, (277V)
    Socket (Lampholder) G12
    Lens (Condenser) Crown glass
    Reflector (Mirror) Alzak aluminum, Ellipsoidal
    Mounting 0.5" mounting hole on yoke
    Yoke Twin flat steel blade, locking knob
    Cable 4', 3 conductor with Edison plug
    Focusing Lens movement with adjustment knobs
    Weight ~6.25 lb (2.8kg)
    Dimensions 13 x 9.25 x 6.25" (33 x 23 x 16cm)
