Altman Master Ellipse CDM Light -

Search your instruction manual in PDF to download

User Manual for Altman Master Ellipse CDM Light - 70 Watts

Click to enlarge the picture
Altman Master Ellipse CDM Light - 70 Watts Contents of the user manual for the Altman Master Ellipse CDM Light -
  • Product category: Architectural Lights Altman
  • Brand: Altman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Altman Architectural Lights

User manual for the Altman Master Ellipse CDM Light - contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Altman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!



Product description

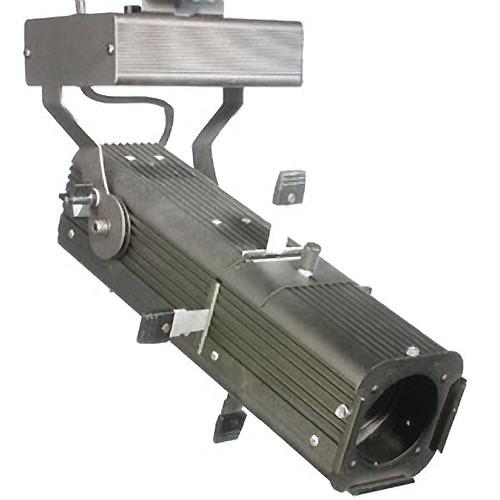

The Master Ellipse profile ellipsoidal provides 20-50° zoom optics and is state of the art in function, style, and efficiency. The fixture is designed and engineered with a number of innovative features enhancing versatility and efficiency without sacrificing performance. The specially designed and bright finished metal reflector maximizes light output and is specifically optimized for Ceramic Discharge Metal Halide lamps. When fitted with a 70 watt HMI bulb (available separately), this 220 volt fixture will provide a beam of 59 footcandles, 5.2' in diameter @ full spot, from a distance of 25'.
From the same distance, it will throw 17 footcandles 15' in diameter @ full flood.
  • The fixture comes complete with pattern holder for glass or metal patterns and a 3.25" color frame accessory slot.
    Pattern slot accepts size "E" (37.5mm) pattern holder or Master Spin dual-rotating pattern holder.
  • The lens focus is modified by means of Teflon locking glides that are simple to adjust throughout the focusing range.
  • Ribbed aluminum, die-cast aluminum housing with black epoxy Sandex, electrostatic finish.
  • Low-noise, high efficiency electronic ballast has a 5 year warranty.
In the Box Altman Master Ellipse CDM Light - 70 Watts (220V AC)
  • 3-3/8 x 3-3/8" Color Frame (MCF)
  • 18" Safety Cable with Spring Clip(SC18BK)
  • 4' 3 Conductor AC Cable with Edison Plug
  • 1 Year Manufacturer's Warranty for Fixture
  • 5 Year Manufacturer's Warranty for BallstNote: HMI Bulb and Pipe Clamp not included
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman Master Ellipse CDM Light - 70 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman Master Ellipse Specs

    Rating 70 watts, 220 Volts AC
    Socket (Lampholder) G12
    Lens (Condenser) Crown glass
    Reflector (Mirror) Alzak aluminum, Ellipsoidal
    Mounting .5" mounting hole on yoke
    Yoke Twin flat steel blade, locking knob
    Cable 4', 3 conductor with Edison plug
    Focusing Lens movement with adjustment knobs
    Weight ~6.25 lb (2.8 kg)
    Dimensions 13 x 9.25 x 6.25" (33 x 23 x 16 cm)
