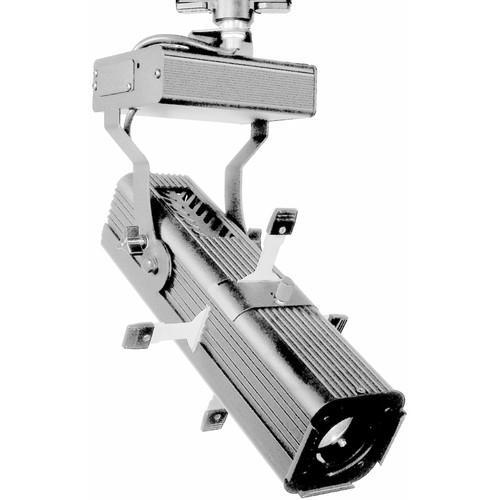

User Manual for Altman ME4 Plus 5000K LED Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman ME4 Plus 5000K LED Ellipsoidal
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman ME4 Plus 5000K LED Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The white, 277V ME4 Plus LED Ellipsoidal from Altman packs many features into a small package. The anti-reflective, 20-40° dual-lens zoom gives the 5000K daylight and balanced output a wide-to-long throw capability. Focusing is especially smooth, allowing crisp projection of E-size glass or metal gobos, while four framing shutters allow you to put light where you want it while keeping it off the areas you don't. The ME4's small size and reasonable cost makes it a natural for museums, architectural interiors, and other public venues. This is a non-dimming fixture; please consult the website for DMX and 0-10V dimming versions of this light. - Benefits
-
- Altman Smart Track compatible
- Track, Canopy, and Unistrut options
- High-efficiency 5000K
- LED white light source: 90 CRI
- 20-40° zoom optics
- Four framing shutters with insulated handles
- Color frame and safety cable included
- Accepts steel or glass E-sized patterns
- 50,000-hour rated life for 30W LED source
- Dimmable (10-100%) on Smart Track, utilizing DMX or 0-10V
- Dimmable with standard track, Canopy, and portable luminaire options
- ETL, cETL, and CE listed for indoor use
- Made in the USA
In the Box Altman ME4 Plus 5000K LED Ellipsoidal (White, 277V) Color Frame Mini Safety Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman ME4 Plus 5000K LED Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman ME4 Plus Specs | Material | Ribbed corrosion-resistant aluminum extrusions
Corrosion-resistant materials and hardware | | Light Source | 30 W LED | | Color Temperature | 5000K | | Dimming | Not dimmable | | CRI | 90 | | Lamp Life | 50,000 h | | Reflector | Ellipsoidal shape, proprietary design | | Lens | Zoom: 20-40°
Dual movable lenses mounted on lens carriers with Teflon glide bearings | | Focusing | Lens movements contained within body, adjustable with heat-resistant handles | | Photometrics | At 20° & 10' (3.05 m):
24.7 fc / 265.3 lux with a beam diameter of 4.4' (1.34 m)
At 30° & 10' (3.05 m):
16.35 fc / 176 lux with a beam diameter of 5.8' (1.78 m)
At 40° & 10' (3.05 m):
11.19 fc / 120.4 lux with a beam diameter of 7.3' (2.23 m) | | Ballast | None | | Rating | 0.25 A @ 120 VAC | | Voltage | 277 VAC | | Cable | 6.0' (1.8 m) pigtail with male Edison plug | | Shutter | Galvanized steel shutters with adjustable and removable heat-resistant handles | | Mount | Not specified by manufacturer | | Front Accessory Size | Front Slot: 3.375 x 0.125" (85.7 x 3.2 mm) | | Compatible Gobos | E 1.5" (37.5 mm) steel or glass patterns (requires optional holder) | | Finish | Black TGIC polyester, electrostatic application | | Approvals and Compliance | ETL, cETL, and CE listed | | Dimensions | 13.3 x 3.4 x 9.0" (33.7 x 8.6 x 22.8 cm), with yoke
13.3 x 3.4 x 3.4" (33.7 x 8.6 x 8.6 cm), without yoke and shutters | | Weight | Approx. 6 lb (2.7 kg) |
