User Manual for Altman MF4 4000K LED Flood Click to enlarge the picture
Contents of the user manual for the Altman MF4 4000K LED Flood
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman MF4 4000K LED Flood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

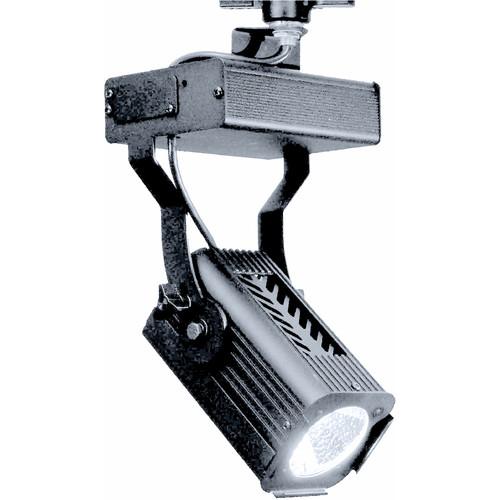

Product description The silver, 120V MF4 4000K LED Flood from Altman is a 25W white light source with excellent color rendering and a flood beam pattern that's ideal for washing large areas with light. The MF4's specular aluminum reflector enhances its 4000K cool tungsten balanced output making it a good choice for short or long throw applications. Made primarily for track applications, the versatile MF4 is dimmable from 10-100% when using Smart Track. It is non-dimmable with standard track, canopy and portable luminaire options. Sturdily made of ribbed aluminum extrusions and corrosion-resistant materials and hardware, the MF4's external front slot accepts 3-3/8" square x 1/8" accessories, such as 4-way barndoors that allow you to put the light output where you want it and keep it from places that you don't. The MF4's small size and reasonable cost makes it a natural for museums, architectural interiors, and other public venues. - Benefits
-
- Altman Smart Track compatible
- Track, Canopy, and Unistrut options
- High-efficiency 4000K with excellent color rendering
- Color frame and safety cable included
- 50,000 hour rated life for 25W LED source
- Dimmable (10-100%) on Smart Track. Non-Dimmable with standard track, canopy and portable luminaire options
- ETL, cETL and CE listed for indoor use
- Made in the USA
In the Box Altman MF4 4000K LED Flood (Silver, 120V) Color Frame Mini Safety Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman MF4 4000K LED Flood in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman MF4 Specs | Material | Ribbed corrosion-resistant aluminum extrusions
Corrosion-resistant materials and hardware | | Light Source | 25 W LED | | Color Temperature | 4000K | | Dimming | 0-10 V on Smart Track (10-100%)
Non-dimmable on standard track | | CRI | Not specified by manufacturer | | Lamp Life | 50,000 Hours | | Reflector | Specular aluminum | | Lens | None | | Beam Angle | Flood | | Focusing | None | | Photometrics | At 4.0' (1.2 m): 56.7 fc/610 lux with a beam size of 7.1 x 7.1' (2.2 x 2.2 m)
At 6.0' (1.8 m): 25.2 fc/271 lux with a beam size of 10.7 x 10.7' (3.3 x 3.3 m)
At 8.0' (3.0 m): 14.2 fc/153 lux with a beam size of 14.2 x 14.2' (4.3 x 4.3 m)
At 10' (3.0 m): 9.1 fc/98 lux with a beam size of 17.8 x 17.8' (5.4 x 5.4 m) | | Rating | 0.20 Amp @ 120 VAC | | Voltage | 120 VAC | | Cable | 6' (1.8 m) Pigtail with male Edison plug | | Front Accessory Size | Front slot: 3.375 x 0.125" (85.7 x 3.2 mm) | | Finish | Black TGIC polyester, electrostatic application | | Approvals and Compliance | ETL, cETL, and CE listed | | Dimensions | Approximately: 6.25 x 3.37 x 9.5" (159 x 86 x 241.3 mm) with yoke
6.25 x 3.37 x 3.5" (159 x 86 x 89 mm) without yoke | | Weight | Approx. 6 lb (2.7 kg) |
