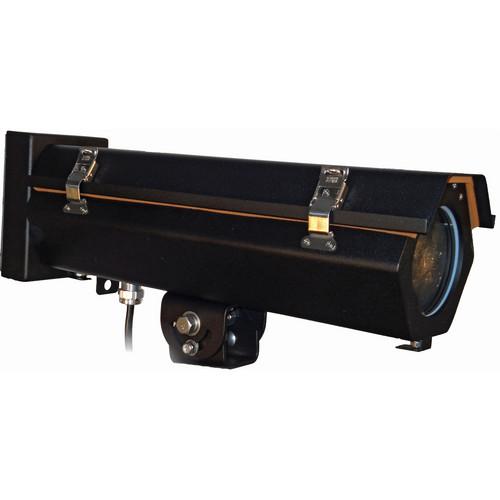

Product description The Altman MINI-ODEC Miniature Outdoor Ellipsoidal (White) is a compact indoor/outdoor theater-type light with a 22 - 48° zoom lens. The MINI-ODEC is fabricated from welded aluminum and stainless steel with a TGIC polyester finish. You'd think that an outdoor fixture might be short on features but not this one. The splash-proof, IP65 rated fixture accepts 4.0" color or glass filters and has a gobo holder for 2.0" OD gobos. A gobo rotator is in the works. The MINI-ODEC comes with a gobo holder, color frame, safety cable, heavy-duty wall mount and pole mount adapter. - 22 - 48° Zoom focus capabilities
- Low-friction Teflon lens glides
- Utilizes 12,000 hour CDM lamps with high CRI
- Low noise, high efficiency electronic ballast
- Easily adjustable stainless steel shutters
- Included pattern holder accepts glass or steel templates
- Lamp centering and Peak/Flat field adjustment
- Compact, rugged welded aluminum and stainless steel fabrication
- Link-Lock latches for security
- Designed for indoor/outdoor applications
- Mounting holes located on bottom of luminaire
- Secured safety loop in fixture body
- ETL and cETL listed for wet locations, IP65 rated
In the Box Altman MINI-ODEC Miniature Outdoor Ellipsoidal (White) Steel Safety Cable (36", Black) Black Outdoor Ellipsoidal Color Frame 70-0560 Pattern Holder 70-0525 Heavy Duty Wall Mount for Outdoor Ellipsoidal Pole Mount Adapter for Outdoor Ellipsoidal 1 Year Manufacturer's Warranty Note: Lamp not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman MINI-ODEC Miniature Outdoor Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman MINI-ODEC Specs | Rating | 150W
Color temperature: 3,000K
CRI: 85
Lamp life: 12,000 hours
Lumens: 14,000
Efficiency: 93 LPW
Lamp position: any | | Materials | Corrosion-resistant materials and hardware
Head: welded aluminum | | Finish | White TGIC polyester | | Socket (Lampholder) | 70W/150W UV Block G12 Ceramic Metal Halide lamp
5kV pulse rated | | Alignment | Fully adjustable in 3 axis with the use of two heat resistant knobs | | Lens (Condenser) | Crown Glass (white plate) with anti-reflector coated surfaces | | Reflector | Proprietary curve, specular aluminum | | Mounting | Wall and pole mounts provided | | Security | Link-lock No. 3, stainless steel (padlocks optional) | | Focusing | Lens movement contained within body, adjustable with brass thumb screws | | Accessory Size | Accepts:
4.0" (101 mm) diameter glass or color filters
2.0" (50 mm) OD, 1.5" (37.5 mm) image area
Locking external slot | | Operating Temperature | Indoor/Outdoor: -10 - 120°F (-23 to 49°C). | | Photometrics | With 150W lamp:
509 center fc with 10' diameter beam @ 22°
50 center fc with 22.5' diameter beam @ 48° | | Power Requirements | 110 - 277V AC, 50/60Hz
0.58A with 70W lamp and 70W ballast
1.25A with 150W lamp and 150W ballast | | Dimensions | Overall: 22 x 6.12 x 7.0 (55.9 x 15.55 x 17.78 cm)
Viewing window: 0.25-inch (6.35 mm) thick | | Weight | 15 lb (6.80 kg) | | Color | White |
