Altman Outdoor 150 Watt CDM Zoom

Search your instruction manual in PDF to download

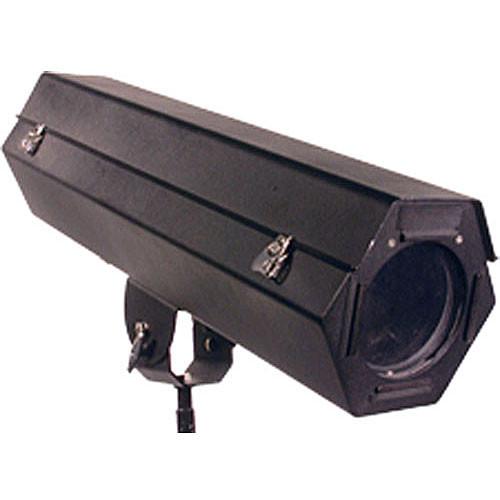

User Manual for Altman Outdoor 150 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver

Click to enlarge the picture
Altman Outdoor 150 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver Contents of the user manual for the Altman Outdoor 150 Watt CDM Zoom
  • Product category: Architectural Lights Altman
  • Brand: Altman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Altman Architectural Lights

User manual for the Altman Outdoor 150 Watt CDM Zoom contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Altman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!



Product description

The Altman 70-150 Watt Outdoor CDM Ellipsoidal is the first fully functioning affordable outdoor ellipsoidal with a 30-55° zoom focus, framing shutters, glass/steel pattern projection capabilities and internal/external accessory mounting options for color media, louver, donut, scroller or douser. The ODEC's removable lid allows for maximum accessibility during installation and for lamp and lens adjustments. Two stainless steel safety cables hold the lid securely when the fixture is opened. This fixture is rate for operation between -10° to +120° F (-23-+49°C). This fixture has a silver finish. Other finishes are available -- black, white, and custom.
    Uses Long Lasting CDM Lamps
  • Utilizes 12,000 hour CDM 70 or 150 watt lamps (available separately), with high color rendering index (CRI)
    Weatherproof
  • The lid is secured to the body with four side-mount link-lock latches that provide a water-tight seal
    Rugged
  • Heavy duty aluminum construction with silver TGIC polyester powdercoat
    Safe
  • Made in the U.S.A.; U.L and c.U.L. listed for outdoor use
    Secure
  • Padlocks of appropriate size can be added for security.
    Light-Shaping Ability
  • Internal slot accepts 7.5" accessories
In the Box Altman Outdoor 150 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver (120VAC)
  • Medium Duty Pedestal Mount (ODE-MDPM)
  • 18" Black Safety Cable (SC-18-BK)
  • One Year Manufacturer's Warranty
  • Note: Bulb and Power Plug not included Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman Outdoor 150 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman ODEC Specs

    Rating 150 watts, 120 volts, 1.25 amps AC
    Socket (Lampholder) G12 ceramic metal
    Lens (Condenser) Crown glass with anti-reflective coating
    Reflector (Mirror) Curved, specular aluminum
    Mounting Medium duty pedestal mount
    Yoke Flat blade fork
    Cable Bottom mounted socket
    Focusing Thumb screw adjustment, Teflon lens glides, lamp centering knob
    Weight 35 lbs (15.9kg)
    Dimensions 33 x 9.9 x 9.4" (88.8 x 25.1 x 24.4cm)
