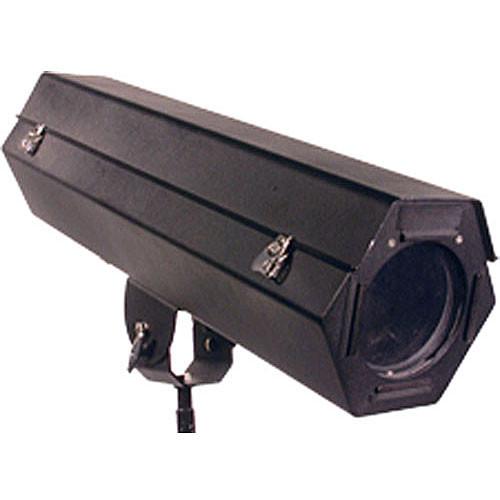

User Manual for Altman Outdoor 70 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver Click to enlarge the picture
Contents of the user manual for the Altman Outdoor 70 Watt CDM Zoom
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman Outdoor 70 Watt CDM Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman 70 Watt Outdoor CDM Ellipsoidal is a fully functioning affordable, outdoor, ellipsoidal with 30-55° zoom focus, framing shutters, glass/steel pattern projection capabilities, and internal/external accessory mounting options for color media, louver, donut, scroller, or douser. The ODEC's removable lid allows for maximum accessibility during installation and for lamp and lens adjustments. Two stainless steel safety cables hold the lid securely when the fixture is opened. This fixture is rated for operation between -10° to +120° F (-23-+49°C. This fixture has a silver finish. Other finishes are available: black or white. - Uses Long Lasting CDM Lamps
- Utilizes 12,000 hour CDM 70 watt lamps (available separately), with high color rendering index (CRI)
- Weatherproof
- The lid is secured to the body with four side-mount link-lock latches that provide a water-tight seal
- Rugged
- Heavy duty aluminum construction with silver TGIC polyester powdercoat
- Safe
- Made in the U.S.A.; U.L and c.U.L. listed for outdoor use
- Secure
- Padlocks of appropriate size can be added for security.
- Light-Shaping Ability
- Internal slot accepts 7.5" accessories
In the Box Altman Outdoor 70 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver (120VAC) Medium Duty Pedestal Mount (ODE-MDPM) 18" Black Safety Cable (SC-18-BK) One Year Manufacturer's Warranty Note: Bulb and Power Plug not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Outdoor 70 Watt CDM Zoom Ellipsoidal 30-55 Degrees, Silver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman ODEC Specs | Rating | 70 watts, 120 volts, 1.25 Amps AC | | Socket (Lampholder) | G12 ceramic metal | | Lens (Condenser) | Crown glass with anti-reflective coating | | Reflector (Mirror) | Curved, specular aluminum | | Mounting | Medium duty pedestal mount | | Yoke | Flat blade fork | | Cable | Bottom mounted socket | | Focusing | Thumb screw adjustment, Teflon lens glides, lamp centering knob | | Weight | 35 lbs (15.9kg) | | Dimensions | 33 x 9.9 x 9.4" (88.8 x 25.1 x 24.4cm) |
