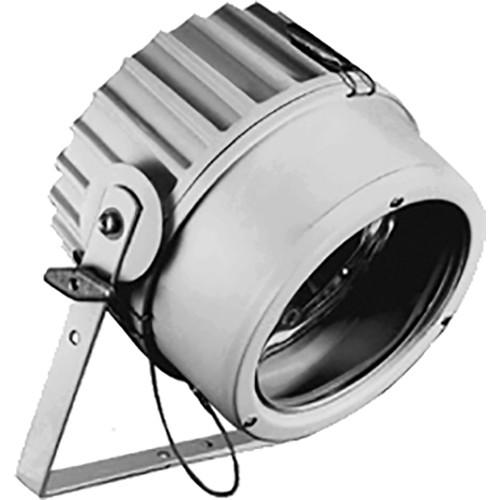

Product description Designed for portable or permanent installations in wet locations, the white-finished Altman Outdoor PAR64 Lamp accepts a wide variety of optional 120-240 VAC, PAR64 500-1000W lamps. The housing is constructed of cast aluminum for maximum durability, while the lens holder and external hardware are made of stainless steel. The unit can be externally rotated to allow for focusing of the lamp. Noncorrosive positive-locking handles make fixture positioning easy. The yoke allows for surface mounting or hanging with an optional pipe clamp. For added convenience, a separate aluminum handle is also provided on the rear. All removable components have gaskets to insure a water-tight seal and wiring is composed of 24" Hi-Temp leads in an overall high-temperature, waterproof, sunlight-resistant jacket through a gasketed, liquid tight strain relief. The borosilicate glass lens also withstands high temperatures and is tempered for maximum strength. An optional accessory snoot / color- frame holder accommodates standard gel and dichroic color media. - Attributes
-
- Cast-and-spun aluminum construction
- Designed for portable or permanent, wet or damp installations
- Tool-free 360° lens rotation
- Mogul end prong socket
- Two-position yoke adjustment
- Safety cable with spring clip included
- 24" Hi-Temp sunlight-resistant waterproof cable
- U.L. and C.U.L. listed for 1,000W and suitable for wet locations
- Made in the U.S.A.
In the Box Altman Outdoor PAR64 Lamp Head (White) Steel Safety Cable (36", Black) sdutxqvurtybcfbdcbdwwcfatcxwfw Hi-temp 24" Rubber Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Outdoor PAR64 Lamp Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Outdoor PAR 64 Specs | Materials | Cast and spun aluminum construction
Corrosion-resistant materials and hardware | | Rating | 1,000 W max. | | Socket (Lampholder) | Mogul end prong | | Lamp | Optional 1,000 W and 500 W PAR64 | | Cable | 24" Hi-temp rubber, sunlight resistant, compression strain relief | | Yoke | Rigid flat aluminum, dual locking dog handles | | Adjustments | Tilt plus enclosed, gasketed cap-and-latch combination that allows for 360° rotation | | Finish | Black epoxy Sandtex, electrostatic application | | Power Requirements | 120-240 VAC, 50/60 Hz, 8.3/4.2 A | | UL Listing | UL and cUL | | Dimensions | 14.75 x 13.25 x 6.75" (37 x 34 x 17 cm) Including yoke handles | | Weight | Approximately: 18 lbs (8.1 kg) |
