User Manual for Altman Outdoor PAR64 Lamp Head Click to enlarge the picture
Contents of the user manual for the Altman Outdoor PAR64 Lamp Head
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman Outdoor PAR64 Lamp Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

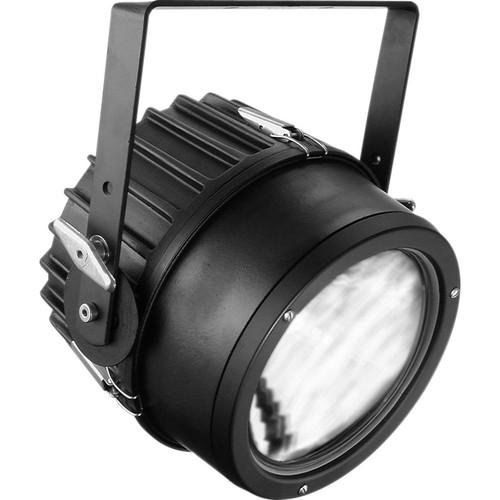

Product description Designed for portable or permanent installations in wet locations, the black-finished Altman Outdoor PAR64 Lamp accepts a wide variety of optional 120-240 VAC, PAR64 500-1000W lamps. The housing is constructed of cast aluminum for maximum durability, while the lens holder and external hardware are made of stainless steel. The unit can be externally rotated to allow for focusing of the lamp. Noncorrosive positive-locking handles make fixture positioning easy. The yoke allows for surface mounting or hanging with an optional pipe clamp. For added convenience, a separate aluminum handle is also provided on the rear. All removable components have gaskets to insure a water-tight seal and wiring is composed of 24" Hi-Temp leads in an overall high-temperature, waterproof, sunlight-resistant jacket through a gasketed, liquid tight strain relief. The borosilicate glass lens also withstands high temperatures and is tempered for maximum strength. An optional accessory snoot / color- frame holder accommodates standard gel and dichroic color media. - Attributes
-
- Cast-and-spun aluminum construction
- Designed for portable or permanent, wet or damp installations
- Tool-free 360° lens rotation
- Mogul end prong socket
- Two-position yoke adjustment
- Safety cable with spring clip included
- 24" Hi-Temp sunlight-resistant waterproof cable
- U.L. and C.U.L. listed for 1,000W and suitable for wet locations
- Made in the U.S.A.
In the Box Altman Outdoor PAR64 Lamp Head (Black) Steel Safety Cable (36", Black) uwfzwvyfsvyqxsadxaeeuvrr Hi-temp 24" Rubber Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Outdoor PAR64 Lamp Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Outdoor PAR 64 Specs | Materials | Cast and spun aluminum construction
Corrosion-resistant materials and hardware | | Rating | 1,000 W max. | | Socket (Lampholder) | Mogul end prong | | Lamp | Optional 1,000 W and 500 W PAR64 | | Cable | 24" Hi-temp rubber, sunlight resistant, compression strain relief | | Yoke | Rigid flat aluminum, dual locking dog handles | | Adjustments | Tilt plus enclosed, gasketed cap-and-latch combination that allows for 360° rotation | | Finish | Black epoxy Sandtex, electrostatic application | | Power Requirements | 120-240 VAC, 50/60 Hz, 8.3/4.2 A | | UL Listing | UL and cUL | | Dimensions | 14.75 x 13.25 x 6.75" (37 x 34 x 17 cm) Including yoke handles | | Weight | Approximately: 18 lbs (8.1 kg) |
