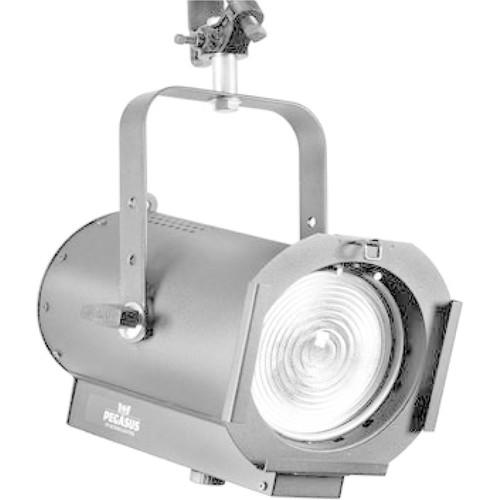

User Manual for Altman Pegasus6 2700K LED Fresnel Click to enlarge the picture
Contents of the user manual for the Altman Pegasus6 2700K LED Fresnel
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Pegasus6 2700K LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman Pegasus6 is a 2700K, white-output LED Fresnel with a 6" lens housed in a white enclosure, capable of operation in both mains dimmable and DMX systems. The fixture uses a 120W lamp and casts soft light similar to that produced by theatrical and studio Fresnels, achieving an output equivalent to that of a 500W incandescent fixture.
The Pegasus6 is designed to seamlessly integrate into preexisting dimmer systems. When the unit is set to Mains Dim Control, it can plug directly into theatrical phase-cut dimmers and functions in both forward- and reverse-phase implementations, replicating the smooth dimming curves of similar incandescent fixtures. The fixture is designed to operate on both 120V and 230V dimming systems, with a voltage selector switch on the rear of the unit. This switch just applies to the operating voltage of the dimming system. The fixture itself has a universal, auto-sensing power supply capable of functioning between 120 and 240 VAC.
The fixture is also fully RDM (Remote Device Management) and DMX compliant. This allows for its use in a lighting system that uses both constant power (for phase-cut dimming) and DMX data control. Simply flip the DMX/Mains Dim switch on the rear of the Pegasus6 to convert it into a DMX/RDM controllable unit.
It can be used with standard theatrical gels as well as with gels formulated for LEDs. The fixture is constructed entirely from metal and is made in the USA. It ships with a C-clamp, a color frame, a safety cable, and a powerCON power cable. - Easily integrates into preexisting dimming systems (both forward and reverse-phase)
- Functions in constant power, DMX, and combination constant power/DMX systems
- DMX and powerCON daisy chaining
- Variable beam angle: 15-85°
- 50,000 hour life expectancy
- High-resolution digital dimming
- Works with standard theatrical gels and gels formulated for LEDs
- Ships with a C-clamp, color frame, safety cable, and powerCON power cable
In the Box Altman Pegasus6 2700K LED Fresnel (6", White Enclosure) Malleable Iron Pipe Clamp uteacsdqdfxvzfau Color Frame, Black - 7-1/2" 19cm) Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Pegasus6 2700K LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Pegasus 6 Specs | Light Source | 1 x 130 W Fixed White LED | | LED Life Expectancy | Up to 50,000 hours | | Beam Angle | 15 - 85° (manual adjustment) | | Color Temperature | 2700 K | | CRI | > 90 | | Dimming | Mains Dim (forward- and reverse-phase)
DMX/RDM | | Illuminance | Spot 15° Beam Angle @ 5' (1.5 m): 12,148 Lux (1,129 fc)
Medium 15° Beam Angle @ 5' (1.5 m): 5,573 Lux (518 fc)
Wide 85° Beam Angle @ 5' (1.5 m): 2,205 Lux (205 fc) | | Lumens | > 9,300 | | Protocols | DMX512 and RDM | | DMX Connectors | 1 x 5-pin XLR, DMX input
1 x 5-pin XLR, DMX output | | Display/Controls | Three-digit display with three-button DMX control system | | Input Voltage | 115 - 230 VAC, 50 - 60 Hz (auto-sensing), 1.2 A | | Current Draw | 1.01 A @ 120 VAC
0.50 A @ 240 VAC | | Power Consumption | 130 W | | Power Connectors | 1 x powerCON input (20 A @ 120 VAC, 15 A @ 230 VAC)
1 x powerCON output (18 A @ 230 VAC, 13 A @ 230 VAC) | | Power Cord Daisy Chain | Yes Do not daisy chain MAINS DIMMABLE fixtures with fixtures that require CONSTANT POWER. When a Pegasus fixture is connected to a dimming system ONLY Pegasus luminaires should be daisy chained together. | | Approvals and Ratings | ETL, cETL & CE pending | | Ambient Temperature | 32 to 104°F (0 to 40°C) | | BTU/h | 425.5 | | Cooling | Silent Active Cooling: < 19 dBA @ 1.64" (0.5 m) | | Construction | All metal with corrosion-resistant materials and hardware | | Housing Color | White | | Dimensions | Fixture: 9.65 x 7.65 x 11.65" (24.5 x 19.4 x 29.6 cm)
Fixture with Yoke: 13.90 x 9.75 x 11.65 (35.3 x 24.8 x 29.5 cm) | | Weight | 11.5 lb (5.22 kg) with C-clamp and yoke |
