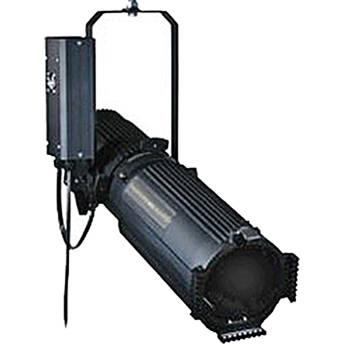

User Manual for Altman Phoenix Blacklight 15-35° U.V. Zoom Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman Phoenix Blacklight 15-35° U.V. Zoom
- Product category: DJ & Effect Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman DJ & Effect Lights
|
User manual for the Altman Phoenix Blacklight 15-35° U.V. Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Phoenix Blacklight 15-35° U.V. Zoom Ellipsoidal from Altman is a variable focus theatrical luminaire intended for dramatic glow-in-the-dark effects in theater and event production. This ellipsoidal has been designed and engineered with a number of details and features enhancing versatility and efficiency without sacrificing performance. The 200W DC ultra short-arc metal halide lamp boasts a 2000 hour lamp life with a 5000 initial lumen output and 50-100% electronic dimmable on-board power supply. The lamp includes an integrated elliptical glass dichroic reflector.
The Phoenix also features tool-free removable heavy gauge stainless steel shutters mounted in separate planes which are fitted with heat-insulated handles. The shutter assembly is spring-loaded to prevent any movement while in operation and will rotate a full 180° to aid in effective illumination of the desired area. An option exists that will allow for full 360° rotation. The smooth, variable focus lens system features Teflon bearings that slide on stainless steel guide rails and produces a 15-35° beam, offering a sharp, distortion-free pattern projection. The generous gobo slot and the two-slot standard 7.5" accessory holder with its self-closing, self-locking retaining latch are just some of the features provided. Altman has gone to great lengths to diminish light leaks from the Phoenix line of fixtures so that no stray light is emitted on unintended areas. This unit includes a European-specification power cable. - Construction
- Durable cast and sheet metal fabrication for long production life
- Dimming
- Integral variable voltage dimmer enabling 100-50% intensity
- Heat-Resistant Controls
- Large, comfortable locking handles
- Yoke
- Indexed tilt angle markings
- Focusing
- Teflon bearings and stainless steel rails for smooth, continuous focus
- Accessory Slots
- Self closing, self locking. The unit can be inverted without fear of falling gel frames or gobos.
In the Box Altman Phoenix Blacklight 15-35° U.V. Zoom Ellipsoidal (90-264 VAC) 2" Pipe Clamp Safety Cable with Carabiner 6.25 x 6.25" Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Phoenix Blacklight 15-35° U.V. Zoom Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman UV Ellipsoidal Specs | Zoom Range | 15-35° | | Rating | 200 W 90-264 VAC | | Lamp | 200 W Ultra Short-Arc Metal Halide | | Lumens | 5000 | | Dimming | 50-100% Variable Integral Power Supply | | Socket (Lampholder) | G12 660 W 600V 5kV Pulse Rated CDM Socket | | Lens (Condenser) | Heat-Resistant 6" Plano-Convex Lenses | | Reflector (Mirror) | Dichroic Glass Reflector | | Yoke | Flat Metal, With Tilt Index Markings, 1/2" Bolt Hole | | Cable | 24" (61 cm) Leads This unit includes a European-specification power cable. | | Certifications | Ul, cUL and CE | | Focusing | Manual Focus, Teflon Glide Bearings on Stainless Steel Guide Rails | | Dimensions | 28.8 x 12.0" | | Weight | 23.5 lb (10.6 kg) |
