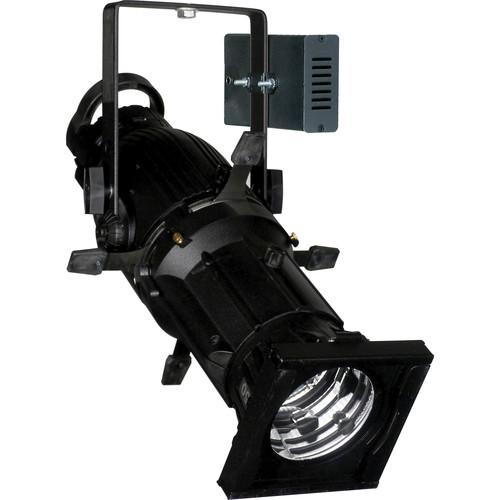

Product description This 70W 5° Altman Phoenix CDM Ellipsoidal Luminaire is a fixed focus ellipsoidal luminaire ideally suited for projecting company logos, spotlighting, and enhancing physical logos and signs, or lighting trade show booths, products, and goods. Configured with a 70W ballast, this lighting fixture and respective Ceramic Discharge Metal Halide Lamp will direct bright, sharp or soft-edged illumination to its subject. There are two accessory slots and two accessory holders on the lens barrel; one to accept pattern holders for metal gobos, and one to accept either a glass pattern holder, drop-in iris, gobo rotator, or a dual gobo rotator. - Features
-
- 12,000 hour CDM lamp with high color rendering index
- Lockable shutters and 360° lens barrel rotation
- Tool-free interchangeable lens barrels provided with unique safety retaining latch
- Clearly marked lens barrel identification system
- First accessory slot accepts pattern holders for metal gobos with 2 5/8" image diameters ("B" size)
- Second accessory slot has a cover to eliminate light leaks when not in use
- Heat resistant plano-convex lensing
- Tool-free operating lamp centering knob and peak or flat field adjustment knob
- Accessory slot provided with locking cover that will accept rotation gobo accessories, glass pattern holder and drop-in iris
- Front accessory holders with self-closing and self-latching safety retainers
- Lens barrels are interchangeable without the use of tools
- Produces a cool light with a high color rendering index that will not seriously impact ambient temperatures
- Heavy gauge stainless steel shutters in separate planes equipped with insulated handles, and spring pressured shutter assembly
- Protective insulated rear mounted handle for easy focusing
- 6" lead of 3 conductor cable
- Color frame, C Clamp and safety cable included
- ETL and cETL listed
- Made in the USA
In the Box Altman Phoenix CDM Ellipsoidal Luminaire (70W, 5°) Color Frame, Black - 7-1/2" 19cm) xzuurqwfrqefsfdrudrzfqufudzs Steel Safety Cable (36", Black) Malleable Iron Pipe Clamp xzuurqwfrqefsfdrudrzfqufudzs Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Phoenix CDM Ellipsoidal Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman PHX CDM Specs | Housing | Die-cast aluminum construction | | Watts | 70 W | | Yoke | Rigid flat steel with dual locking dog tilt handles, two mounting position, indexed tilt angle markings | | Reflector | Alzak aluminum ellipsoidal design | | Lenses | Color coded crown glass (white plate) lenses with anti-reflective coating. Molded front lens made out of polymeric plastic. | | Socket | 5 kV pulse rated socket. Tool-free re-lamping. | | Ballast | Electronic, 39, 70, and 150 W, multi voltage | | Cable | 36" (91.4 cm) Teflon leads encased in black fiberglass sleeving, rear cord wrap provided. | | Shutter | Four 0.037" (0.9 mm) stainless steel, fully adjustable and lockable. Constructed with oversized heat-resistant handles. | | Dimensions | 24.8 x 10.0 x 10.0" (63.0 x 25.4 x 25.4 cm) | | Weight | Approximately 16.4 lb (7.5 kg) |
