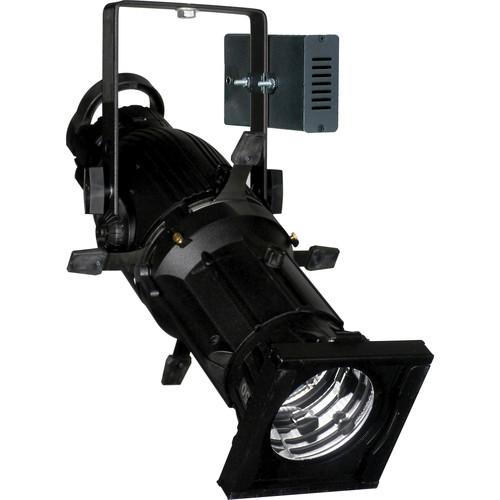

User Manual for Altman Phoenix PHX CDM 39W Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman Phoenix PHX CDM 39W Ellipsoidal
- Product category: Architectural Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Architectural Lights
|
User manual for the Altman Phoenix PHX CDM 39W Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Phoenix 26° PHX CDM Ellipsoidal from Altman is an efficient, advanced-featured luminaire with wide functional versatility. Configured with a 39W ballast and fitted with an optional Ceramic Discharge Metal Halide lamp, the Phoenix CDM is capable of delivering bright, sharp or soft-edged illumination to its subject. The fixture has two accessory slots and two accessory holders on the lens barrel. The slot nearest to the lamp is specifically sized to accept pattern holders for metal gobos with B-sized image diameters. The second slot, which has a cover to eliminate light leaks when not in use, will accept an optional glass pattern holder, drop-in iris, or single or dual gobo rotator. The front of the unit has a 2-channel accessory holder for light modifiers like the optional filter frame. The lens barrel is interchangeable without the use of tools. The high CRI, low wattage, long lamp life unit runs cool enough to have very little impact on ambient temperatures, making it ideally suited to projecting company logos, spot lighting, or enhancing physical logos and signs at trade shows. - Attributes
-
- Optional 12,000 hour CDM lamp with high color rendering index
- Compact, rugged aluminum construction
- Lockable shutters and 360° lens barrel rotation
- Tool free interchangeable lens barrels provided with unique safety retaining latch
- Clearly marked lens barrel identification system
- Heat resistant Plano-Convex lens
- Tool free lamp centering knob and peak/flat adjustment knob
- Accessory slot provided with locking cover knob that will accept gobo rotation accessories, glass pattern holders, and drop-in iris
- Heavy gauge stainless steel shutters on separate planes, equipped with insulated handles and spring pressured shutter assembly
- Insulated protective rear mounted handle for easy focusing
- Rigid flat steel yoke with dual locking tilt handles, two mounting positions, and indexed tilt angle markings
- ETL and cETL listed
- Made in the USA
In the Box Altman Phoenix PHX CDM 39W Ellipsoidal (Black, 26°) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Phoenix PHX CDM 39W Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman PHX CDM Specs | Material | Aluminum housing, stainless steel shutters | | Type | CDM ellipsoidal | | Rating | Optional 39 W/T6 CDM lamps | | Socket | 5 kV Pulse rated socket, tool-free relamping | | Lamp | Optional 39 W CDM (any burn position):
CDM 35/T6/830, Efficiency: >87 LPW, temp.: 3,000K, life: 12,000 h, 3,400 lumens, CRI: 81 | | Lens (Condenser) | 26° Color-coded crown glass (white plate) with anti-reflective coating | | Reflector (Mirror) | Alzak aluminum ellipsoidal | | Mounting | Rigid flat steel yoke for optional C-clamp, pin, or receiver | | Ballast | 39 W Electronic, multi-voltage | | Shutter Type | Four 0.037" (0.9 mm) stainless steel, fully adjustable and lockable | | Cable | 3.0' (0.9 m) Teflon bare leads with cord wrap (no plug) | | Voltage Requirements | 100 - 240 VAC, 50/60 Hz | | Dimensions | 24.84 x 10 x 10" (63 x 25.4 x 25.4 cm) Including shutters | | Weight | 16.4 lb (7.4 kg) |
