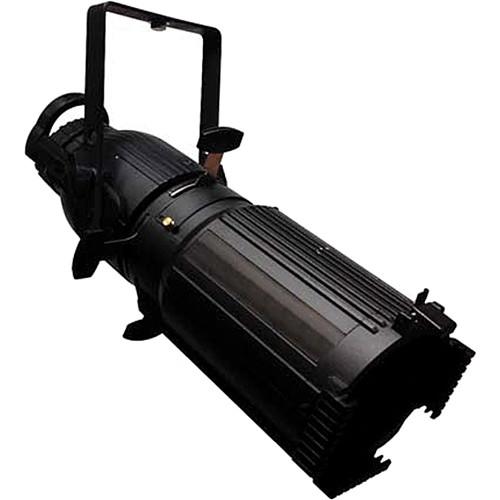

User Manual for Altman Phoenix Zoom Ellipsoidal Click to enlarge the picture
Contents of the user manual for the Altman Phoenix Zoom Ellipsoidal
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Phoenix Zoom Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This white 15 - 35° Phoenix Zoom Ellipsoidal from Altman is a multi-purpose focusing zoom light, particularly useful in theatrical productions or events when the needed spread of light for a particular area or scene may change frequently. This unit has a useful middle zoom range and negates the need to swop out one unit for another with a different lens barrel. The Phoenix features four locking stainless steel shutters and a 360° rotating lens barrel, which allows for advanced light-shaping capabilities. The yoke is marked with tilt angle markings making proper aiming and focus easier.
This rugged, all-metal unit has been designed to withstand the rigors of traveling event production. Light leaks from the fixture have been minimized so you won't have to worry about any stray light illuminating unwanted parts of the scenery. The Phoenix Zoom ellipsoidals are ideal for theatres and long-throw venues such as opera houses. Recognizing that these units can produce a lot of heat during prolonged operation it has been fitted with comfortable, heat-resistant handles. This unit can be ordered with either a G9.5 or HPL lamp socket and uses lamps up to a maximum of 750W. In the Box Altman Phoenix Zoom Ellipsoidal (15-35°, White) Gel Frame C-Clamp Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Phoenix Zoom Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX Zoom Specs | Rating | 100 - 240 VAC, 6.3/3.1 Amps, 750 W max. | | Material | Die-Cast Aluminum Construction | | Socket (Lampholder) | G9.5 | | Lens (Condenser) | Heat Resistant Plano-Convex Lensing | | Reflector (Mirror) | Spring Mounted Dichroic Coated Glass, Ellipsoidal Design | | Yoke | Rigid Flat Steel with Dual Locking Dog Tilt Handles | | Cable | 36" European Specification | | Focusing | Manual | | Certifications | ETL & cETL | | Dimensions | 28.75 x 8.0" (73 x 20 cm) | | Weight | 22 lb (10 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
