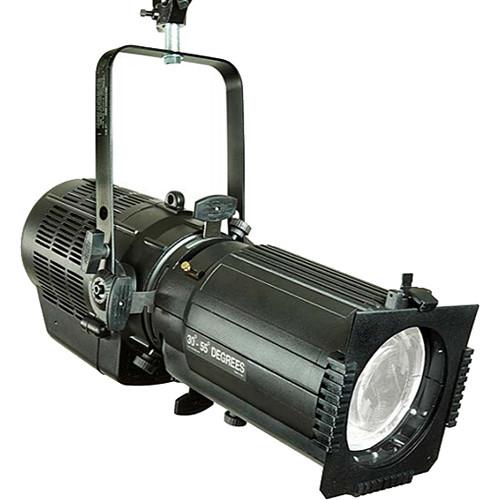

User Manual for Altman PHX LED 150W Zoom Spot Click to enlarge the picture
Contents of the user manual for the Altman PHX LED 150W Zoom Spot
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman PHX LED 150W Zoom Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This black PHX LED 150W Zoom Spot from Altman is an ellipsoidal fixture with a fixed 5600K color temperature output, a 15 to 35° zoom lens, and support for 8-bit and 16-bit dimming. Its metal construction provides convection cooling, allowing this fixture to operate without fan noise in ambient temperatures up to 104°.Integrated locking shutters provide control over beam shape and size, and the included lens projects a variable-sized beam with a zoom range of 15 to 35°. The included soft focus lens and size B pattern holder allow you to use the fixture to project a pattern. The fixture's output is controlled via DMX512 protocol and the 5-pin XLR in/out connectors. Power is provided by the powerCON in/out connectors, which allow you to daisy chain up to eight fixtures on a 20A circuit. -
- A lens tube with a zoom range of 30 to 55° is available as a replacement
- Soft focus lens with size B pattern holder
- Supports DMX512 Protocol
- 5-Pin XLR for DMX - In/Out
- 360 degree rotating barrel
- Locking shutter
- Completely enclosed accessory holder
- Heat-resistant Plano-Convex Lenses
- Die-cast aluminum and sheet metal fabrication
- Convection Cooling
- Tool-free interchangeable barrels
- Spring clip safety cable included
- 5' powerCON power cable included
- Built-in Yoke
- Included pipe clamp
In the Box Altman PHX LED 150W Zoom Spot (15-35°, 5600K, Black) Malleable Iron Pipe Clamp rwctteytvwufytrusxqaebratwdfwxutsfy Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' PHX Soft Focus lens with B Size Pattern Holder Black Color Frame, 7.5" x 7.5" Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman PHX LED 150W Zoom Spot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX Zoom Specs | Color Temperature | 5600K | | Lens | 15 to 35° | | Control Protocol | DMX512
RDM - ANSEI E1.20 Compliant | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | Power Connectors | Input: powerCON
Output: powerCON | | Operating Voltage | 100 to 240 VAC, 50/60 Hz | | Wattage | 150 Watts | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Certifications | ETL
cETL
CE Marked for indoor use | | Dimensions | 24.63 x 10.59 x 6.78" / 62.56 x 26.90 x 17.22 cm | | Weight | 26.45 lb / 12 kg |
