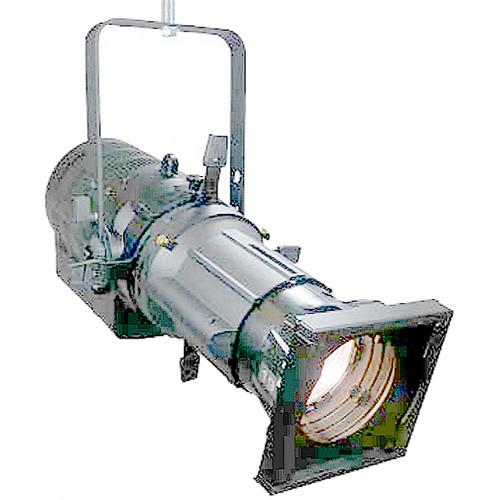

User Manual for Altman PHX LED- 3K5K 250W Engine & SCA Variable LED Array Click to enlarge the picture
Contents of the user manual for the Altman PHX LED- 3K5K 250W Engine
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman PHX LED- 3K5K 250W Engine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This white Altman PHX LED- 3K5K 250W Engine & SCA Variable LED Array is the light engine for an ellipsoidal fixture that accepts all non-zoom PHX lens tubes, although it does not come with one. Instead it is the light engine (LED array) and shutter center assembly (SCA). The fixture's output is variable from 3000 to 5600K and supports 8-bit and 16-bit dimming. As the LED array draws a maximum of to 250 watts, in addition to its metal construction, the fixture uses active cooling, allowing it to work in ambient temperatures up to 104°F.
Integrated fully locking shutters provide control over beam shape and size, while compatible, but not included, lens tubes allow you to focus your beam and contol beam angle spread. Control over the fixture's output is via DMX512 protocol and the 5-pin XLR in/out connectors. Power is provided by the powerCON in/out connectors that allow you to daisy chain up to eight fixtures on a 20 amp circuit. - This fixture is the light engine and does not include the actual lens tube. It can acommodate the PHX lens tubes from Altman, which must be sourced separately.
-
- Available Lens Tubes of 5°, 10°, 19°, 26°, 36°, and 50° fixed focus lenses
- Supports DMX512 Protocol
- 5-Pin XLR for DMX - In/Out
- 360 degree rotating barrel
- Locking shutter
- Completely enclosed accessory holder
- Heat-resistant plano-convex lenses
- Die-cast aluminum and sheet metal fabrication
- Fan-forced air cooling
- Tool-free interchangeable barrels
- Spring clip safety cable included
- 5' powerCON power cable included
In the Box Altman PHX LED- 3K5K 250W Engine & SCA Variable LED Array (White) Malleable Iron Pipe Clamp Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman PHX LED- 3K5K 250W Engine & SCA Variable LED Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX LED Specs | Color Temperature | 3000 to 5600K | | Control Protocol | DMX512
RDM - ANSEI E1.20 Compliant | | Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | Power Connectors | Input: powerCON
Output: powerCON | | Operating Voltage | 100 to 240 VAC, 50/60 Hz | | Wattage | 250 watts | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Certifications | ETL
cETL
CE Marked for indoor use | | Dimensions | 24.63 x 10.59 x 6.78" / 62.56 x 26.90 x 17.22 cm | | Weight | 26.45 lb / 12 kg |
