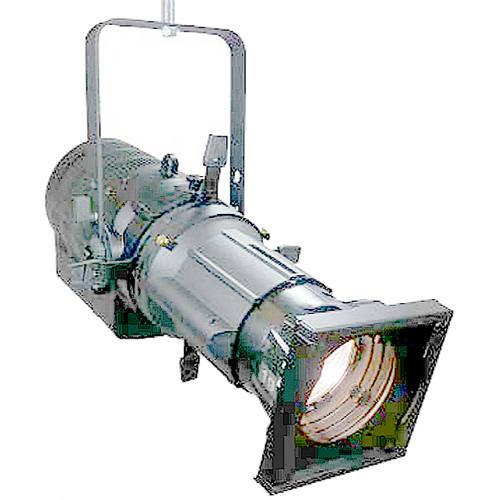

User Manual for Altman PHX LED 3K5K 250W Profile Variable Color Temperature LED 26° Fixture Click to enlarge the picture
Contents of the user manual for the Altman PHX LED 3K5K 250W Profile
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman PHX LED 3K5K 250W Profile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This white Altman PHX LED - 3K5K 250W Profile Variable Color Temperature LED 26° Fixture is an ellipsoidal fixture that features a variable color temperature output from 3000 to 5600K and supports 8-bit and 16-bit dimming. An LED array draws a maximum of 250 Watts, and the metal construction and fan cooling allows it to work in ambient temperatures up to 104°F.
Integrated locking shutters provide control over beam shape and size, and the included lens projects a 26° beam angle for a very tight spot effect. The included soft-focus lens and A-size pattern holder allows you to use the fixture to project a pattern. Control over the fixture's output is via DMX512 protocol and the 5-pin XLR in/out connectors. Power is provided by the powerCON in/out connectors that allow you to daisy-chain up to eight fixtures on a 20A circuit. - This fixture includes the 26° lens tube, it can acommodate other PHX lens tubes from Altman, which must be sourced separately
-
- Available lens tubes of 5°, 10°, 19°, 36°, and 50° fixed focus lenses
- Soft-focus lens with A-size pattern holder
- Supports DMX512 Protocol
- 5-Pin XLR for DMX - in/out
- 360-degree rotating barrel
- Locking shutter
- Completely enclosed accessory holder
- Heat resistant plano-convex lenses
- Die-cast aluminum and sheet metal fabrication
- Fan-forced cooling
- Tool-free interchangeable barrels
- Spring clip safety cable included
- 5-foot powerCON power cable included
- Built-in yoke
- Included pipe clamp
In the Box Altman PHX LED 3K5K 250W Profile Variable Color Temperature LED 26° Fixture (White) Malleable Iron Pipe Clamp tsqewbqs Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' tsqewbqs Soft Focus Lens Accessory for PHX Series LED Ellipsoidals 6.25 x 6.25" White Color Frame Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman PHX LED 3K5K 250W Profile Variable Color Temperature LED 26° Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX LED Specs | Color Temperature | 3000 to 5600K | | Lens | 26° | | Control Protocol | DMX512
RDM - ANSI E1.20 compliant | | Connectors | DMX in/out: 5-Pin XLR
Power: powerCON in/out | | Operating Voltage | 100 to 240 VAC
50/60 Hz | | Wattage | 250 W | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Certifications | ETL
cETL
CE marked for indoor use | | Dimensions | 24.63 x 10.59 x 16.83" / 62.56 x 26.90 x 42.75 cm | | Weight | 25.5 lb / 11.56 kg |
