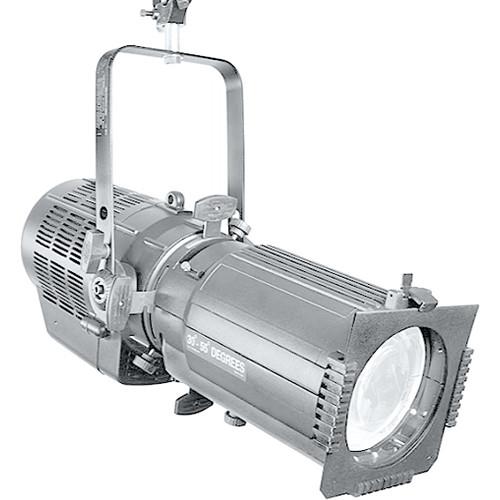

User Manual for Altman PHX LED Variable 3000 to 5600K 150W Profile 30 to 55° Zoom Fixture Click to enlarge the picture
Contents of the user manual for the Altman PHX LED Variable 3000 to
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman PHX LED Variable 3000 to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description This white Altman PHX LED - Variable 3000 to 5600K 150W Profile 30 to 55° Zoom Fixture is an ellipsoidal fixture with a variable 3000 to 5600K color temperature output, a 30 to 55° zoom lens, and support for 8-bit and 16-bit dimming. As the LED array draws a maximum of to 150 Watts, its metal construction provides convection cooling allowing this fixture to operate without fan noise in temperatures up to 104°. This enables the unit to work in ambient temperatures up to 104°F without any fan noise.
Integrated locking shutters provide control over beam shape and size, and the included lens projects a variable sized beam with a zoom range of 30 to 55°. The included soft-focus lens and B-size pattern holder allows you to use the fixture to project a pattern. Control over the fixture's output is via DMX512 protocol and the 5-pin XLR in/out connectors. Power is provided by the powerCON in/out connectors that allow you to daisy-chain up to eight fixtures on a 20 Amp circuit. -
- A lens tube with a zoom range of 15 to 35° is available as a replacement
- Soft-focus lens with B-size pattern holder
- Supports DMX512 protocol
- 5-Pin XLR for DMX - in/out
- 360-degree rotating barrel
- Locking shutter
- Completely enclosed accessory holder
- Heat resistant plano-convex lenses
- Die-cast aluminum and sheet metal fabrication
- Convection cooling
- Tool free interchangeable barrels
- Spring clip safety cable included
- 5' powerCON power cable included
- Built-in yoke
- Included pipe clamp
In the Box Altman PHX LED Variable 3000 to 5600K 150W Profile 30 to 55° Zoom Fixture (White) Malleable Iron Pipe Clamp Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' PHX Soft Focus lens with B Size Pattern Holder Black Color Frame, 7.5" x 7.5" Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman PHX LED Variable 3000 to 5600K 150W Profile 30 to 55° Zoom Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX Zoom Specs | Color Temperature | 3000 to 5600K | | Lens | 30 to 55° | | Control Protocol | DMX512
RDM - ANSI E1.20 Compliant | | Connectors | DMX in/out: 5-Pin XLR
Power: powerCON in/out | | Operating Voltage | 100 to 240 VAC
50/60 Hz | | Wattage | 150 Watts | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Certifications | ETL
cETL
CE marked for indoor use | | Dimensions | 32 x 10.59 x 20.5" / 81.28 x 26.90 x 52.07 cm | | Weight | 28.25 lb / 12.8 kg |
