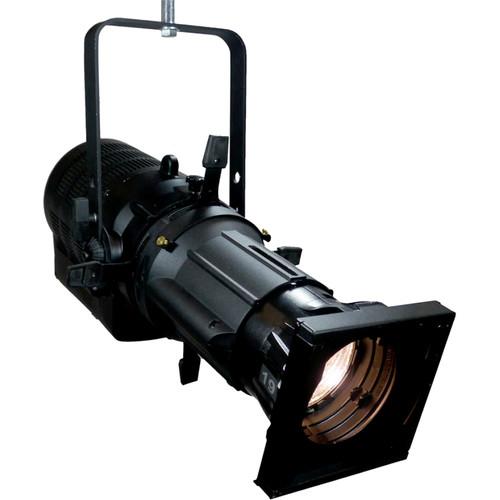

Product description The PHX LED ZOOM from Altman is a 250W RGBA ellipsoidal profile spot with a 15-30° zoom range, housed in a black enclosure. It is designed and engineered with a number of innovative details and features, enhancing versatility and efficiency without sacrificing performance. With its rugged die-cast housing and positive locking double-clutch body, the luminaire is made to last. There's a pattern slot for glass or steel gobos as well as a wide accessory slot with a sliding cover for motorized pattern devices or an iris (devices and iris sold separately). Control is provided by DMX512, which allows 8-bit or 16-bit virtual dimming for smooth, high-quality fades while minimizing color shift. The light is also compliant with RDM (Remote Device Management), for addressing and setting changes. In addition to DMX and RDM control, the fixture is capable of storing and playing up to 5 cues directly from the on-board menu. The PHX LED ZOOM profile spot has a multi-voltage power supply and is ideal for use in theaters, special events, television studios, or any location where high-quality, energy-efficient lighting performance is required. It easily integrates into any preexisting dimming system and is compatible with standard accessories, including drop-in irises, rotators, and scrollers. The light comes with a color frame for filters, safety cable, C-clamp, soft focus pattern holder and a 5' powerCON power cable. Note: If using the Soft Focus Lens Adapter, do not add metal gobos into the metal pattern holder, the heat built up will melt the diffusion material. - Benefits
-
- 360° rotating barrel
- Positive locking double-clutch fixture body
- Pattern slot fits glass or steel gobos
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris (devices and iris sold separately)
- Yoke made from rigid, flat steel with dual locking handles, two mounting positions, and indexed tilt angle markings
- 100-240 VAC, 50/60 Hz universal power input
- DMX512 in/thru via 5-pin XLR connector
- RDM capable for addressing and setting changes
- Console-free Master/Slave mode
- 8-bit or 16-bit virtual dimming engine provides smooth, high-quality fades and minimizes color shift during dimming
- Player Mode: store and play up to five cues from the on-board menu
In the Box Altman PHX LED Zoom 250W RGBA Ellipsoidal Profile Spot (Black, 15-30°) 7.5 X 7.5" Color Frame Phoenix Soft Focus Lens with B-Size Pattern Holder Malleable Iron Pipe Clamp Steel Safety Cable (36", Black) PowerCON to Edison Male Plug 20A Power Cable for Spectra Strip, Cube and Cyc - 5' Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman PHX LED Zoom 250W RGBA Ellipsoidal Profile Spot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Phoenix PHX Zoom Specs | Light Engine | 250 W, 60 LED Array of RGBA type
| | LED Life Expectancy | Up to 50,000 hours | | Lens | 15-30° Zoom | | Lens Material | 2 X bi-convex aspheric lenses with an antireflective coating | | Photometrics | At 15 Degrees
984.2 fc / 10,590,0 lux @ 10' (3.05 m) with a beam diameter of 2.8' (0.85 m)
83.2 fc / 895.5 lux @ 35' (10.67 m) with a beam diameter of 8.5' (2.58 m)
33.7 fc / 362.7 lux @ 55' (16.76 m) with a beam diameter of 13.0' (3.97 m)
At 22.5 Degrees
406.6 fc / 4,375.0 lux @ 10' (3.05 m) with a beam diameter of 4.3' (1.30 m)
33.3 fc / 358.3 lux @ 35' (10.67 m) with a beam diameter 13.7' (4.18 m)
13.5 fc / 145.1 lux @ 55' (16.76 m) with a beam diameter of 21.3' (6.49 m)
At 30 Degrees
245.9 fc / 2,465.5 lux @ 10' (3.05 m) with a beam diameter of 5.9' (1.79 m)
20.8 fc / 223.3 lux @ 35' (10.67 m) with a beam diameter of 19.3' (5.87 m)
8.4 fc / 90.4 lux @ 55' (16.76 m) with a beam diameter of 30.0' (9.14 m) | | Housing | Die-cast aluminum and sheet metal construction | | Yoke | Rigid, flat steel
Dual locking tilt handles
2 x mounting positions
Indexed tilt angle markings | | Protocols | DMX512 and RDM (Remote Device Management) | | DMX Connectors | 1 x XLR 5-pin DMX input
1 x XLR 5-pin DMX output | | Operating Modes | DMX Control
Console-free Master/Slave
Player: store and play up to 5 cues from the on-board menu | | Dimming | 8-bit or 16-bit virtual dimming engine | | Shutter | 4 x blades | | Setup Menu | Yes | | Power Connectors | 1 x powerCON input
1 x powerCON output
| | Power Cable | powerCON 5'(1.5m) U Ground Edison | | Power Cord Daisy Chain | Up to 8 fixtures (20 A max.) | | Power Requirements | 100-240 VAC, 50/60 Hz (universal power input)
Requires power from non-dim source | | Operating Temperature | 14 to 104°F (-10 to 40°C)
Designed for continuous operation up to max. temperature | | Cooling | Near-silent fan cooling | | Listings | ETL, cETL, and CE listed
IP20 rated for indoor use | | Dimensions | 30 x 10.3 x 16.8" (76.2 x 26.1 x 42.6 cm)
Pattern holder: 7.5 x 7.5" (19 x 19 cm) | | Weight | 28.25 lb (12.81 kg) |
