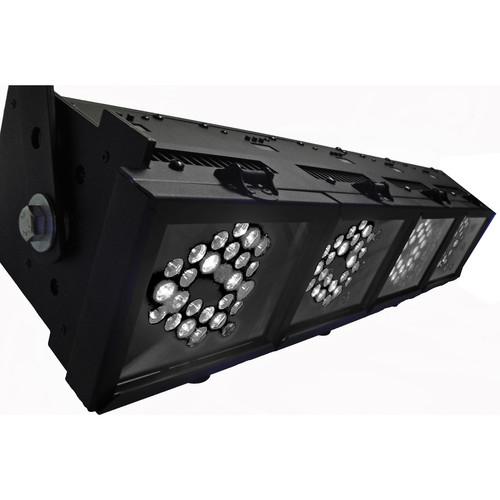

User Manual for Altman Spectra 4.0' RGBA Strip Light Click to enlarge the picture
Contents of the user manual for the Altman Spectra 4.0' RGBA Strip Light
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra 4.0' RGBA Strip Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman Spectra 4.0' RGBA Strip Light (100-240VAC) is a low profile LED linear wash luminaire with 8 compartments of Luxeon Rebel LEDs for RGBA color mixing. Each compartment can be individually filtered, lensed, or diffused using the dual filter slots provided per compartment. The Spectra Strip is compatible with 8/16 bit DMX512 and RDM protocols which can be employed in a maximum run of 1,000'. Security features include a Keypad Lock function to prevent accidental re-programming. The Spectra Strip has a universal power supply (100-240VAC). The overall construction of the fixture utilizes a corrosion protected aluminum housing. - Features and Benefits
-
- On board power supply, microprocessor controller, and current drivers
- Feed thru PowerCON outlets
- Push button addressing
- Stand-alone, pre-programmed Show Mode
- Keypad Lock function to prevent accidental re-programming
- Efficient cooling system offering silent operation with no fans
- Color mixing via red, green, blue and amber Luxeon Rebel LEDs
- Dual-slot accessory frame holders per compartment for use with lenses, diffusing, and color media
- Compatible with DMX and RDM protocols. DMX Address assignable via RDM or on-board push button display
- Feed thru DMX/RDM data with a maximum total run of 1,000 feet
- User selectable 8 and 16-Bit personalities for smooth fades from 0 to 100%
- Flicker-free operation
- Preset modes to emulate 3 and 4 circuit traditional strip lights, as well as cell by cell control
- Low profile fixture suitable for uplighting and footlight applications
- On board multi-voltage power supply
- ETL and cETL pending for indoor use
- Made in the USA
In the Box Altman Spectra 4.0' RGBA Strip Light (100-240VAC) 2 x Safety Cable PowerCON Power Supply Cord with Edison Power Plug 8 x Safety Filter Frame Installation/Instruction Manual 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra 4.0' RGBA Strip Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Strip Specs | Rating | 50W Luxeon Rebel LED's x8 (total 400W)
Lamp life: 50,000 hours | | Lens (Condenser) | No | | Reflector (Mirror) | No | | Mounting | Floor or pipe | | Yoke | Swiveling floor trunnion at each end | | Cable | PowerCON power supply cord with Edison power plug | | Focusing | No | | Power Requirements | 100-240VAC, 50/60Hz (20A) | | Certifications | ETL and cETL pending | | Dimensions | 48.75 x 8.3 x 9.5" (123 x 21 x 24 cm) | | Weight | Approximately 32 lb (14.5 kg) |
