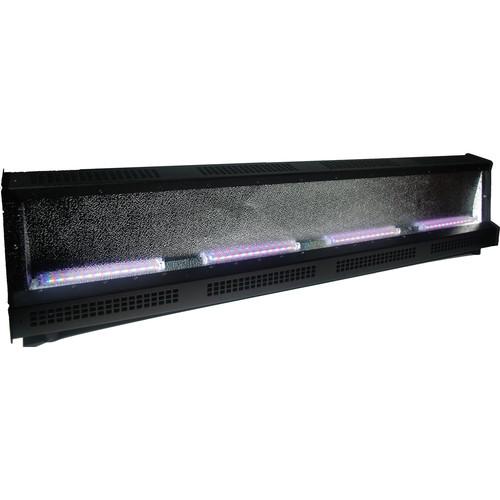

User Manual for Altman Spectra Cyc 400 6000K White LED Wash Light Click to enlarge the picture
Contents of the user manual for the Altman Spectra Cyc 400 6000K White
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Cyc 400 6000K White contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The black Spectra Cyc 400 6000K White LED Wash Light from Altman is a 400W cyclorama luminaire which features four arrays of 6000K LEDs. It's a high-output, lightweight wall wash lighting fixture with multiple control options. Designed for theatrical and architectural applications, the Spectra Cyc utilizes an asymmetrical aluminum reflector to broadly and evenly disperse the light on the whole cyclorama surface, as well as an LED blending lens to reduce the effects of pixelation from direct view.If placed 4-6' away from the surface being lit, the fixture spreads even and intense light for up to 45' vertically, having no visible dip in coverage and "scalloping" effects. If two or more units are used together to enlarge the horizontal coverage area, the maximum distance between them should be 10 to 12' from center to center. The luminaire can be operated as a standalone unit, or controlled via DMX or RDM, providing various light settings. It comes with a library of preset programs, available from the control panel.The fixture is supplied with adjustable rubber leveling feet for ground application, or it can be truss-mounted using a yoke, C-clamp (both available separately), and a safety cable. - Onboard in-rush current limiter and multi-voltage power supply
- DMX control over color intensity, as well as fades and strobes
- Laser-cut aluminum housing
- All corrosion-resistant materials and hardware
- Integrated carrying handles
In the Box Altman Spectra Cyc 400 6000K White LED Wash Light (Black) Steel Safety Cable (36", Black) PowerCON to Edison Cable (5') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Cyc 400 6000K White LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Cyc 400 Specs | Light Source | 4 x 6000K White LED arrays, 3 W per LED | | Life Expectancy | Up to 50,000 hours | | Color Temperature | 6000K | | Color Mixing | No | | Lens | Blending lens | | Reflector (Mirror) | Hammertone asymmetrical reflector | | Built-in Shows | Yes | | Master/Slave Support | Yes | | Operating Modes | Static color, color fade, strobe, DMX/RDM | | Protocols | DMX, RDM | | DMX Connectors | Input: 1 x XLR 5-pin
Output: 1 x XLR 5-pin | | DMX Channel Modes | 1 or 2 channels | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Connectors | Input: powerCON
Output: powerCON | | Power Consumption | 400 W max. | | Power Linking | Up to 3 units | | Power Cable | powerCON to Edison, 5' (1.5 m) | | Display/Controls | LED display with 3-button control panel | | Construction | 18-gauge steel
Aluminum housing | | Ambient Temperature | 34 to 104°F (1 to 40°C) | | Rating | ETL, cETL, & CE listed
IP20 rated for indoor use | | Weight | 37 lb (16.8 kg) | | Dimensions | 48.0 x 14.0 x 7.5" (121.9 x 35.6 x 19.1 cm) |
