User Manual for Altman Spectra Cyc 50 RGBA LED Wash Light Click to enlarge the picture
Contents of the user manual for the Altman Spectra Cyc 50 RGBA LED
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Cyc 50 RGBA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|

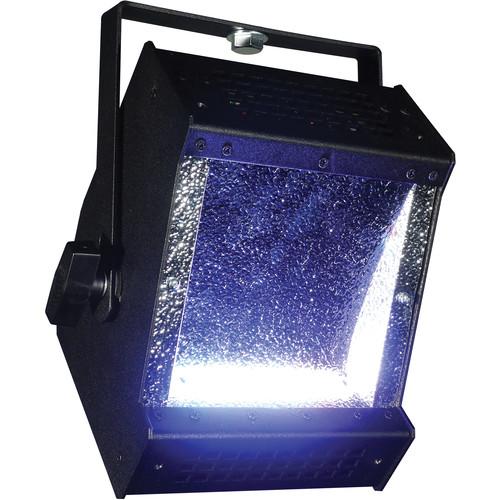

Product description The silver Spectra Cyc 50 RGBA LED Wash Light from Altman is a 50W cyclorama/wall wash lighting fixture that features red, green, blue, and amber-colored Luxeon Rebel LEDs. The Spectra Cyc also utilizes an asymmetrical aluminum reflector to broadly and evenly disperse the light as well as an LED blending lens to reduce the effects of pixelization from direct view. The light also has pre-programmed modes for adjusting dimming from 0-100% as well as setting up a strobe mode.
Connecting the fixture to your setup is simple with male and female 5-pin XLR ports, these let you transfer data through a series of daisy-chained lights. There is also a powerCON AC out port for feed-through power for up to 30 connected lights. Other features of the Spectra Cyc 50 are push-button addressing and a universal built-in 100-240 VAC power supply. It comes with a 5' power cable and is made in the USA. - Designed for use on 8' centers maximum
- DMX512 support with 8- and 16-bit setups allowing for control of each color as well as an additional fine tuning adjustment for each color when using a 16-bit control
- Integrated carrying handle
In the Box Altman Spectra Cyc 50 RGBA LED Wash Light (Silver) 5' Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Cyc 50 RGBA LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Cyc 50 Specs | Type | Wash light | | LEDs | Luxeon Rebel LEDs | | LED Lifetime | 50,000 hours | | LED Color | Red, green, blue, amber | | Power Draw | 50 W max | | Construction | 18-Gauge steel
Aluminum
TGIC polyester finish for electrostatic applications | | Dimming | 0-100% | | Compatibility | DMX512
RDM | | Ports | 1 x Male 5-pin XLR
1 x Female 5-pin XLR
1 x powerCON AC out for feed through (up to 30 Spectra Cyc units) | | Cable | 5' (1.5 m) powerCON in to standard connector | | Mount | Optional steel yoke | | Ingress Protection Rating | IP20 | | Environmental Conditions | Temperature: -4 to 140°F (-20 to 60°C) | | Operating Voltage | 100-240 VAC, 50/60 Hz | | Certifications | ETL
cETL | | Dimensions | Not specified by manufacturer | | Weight | 7 lb (3.2 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
