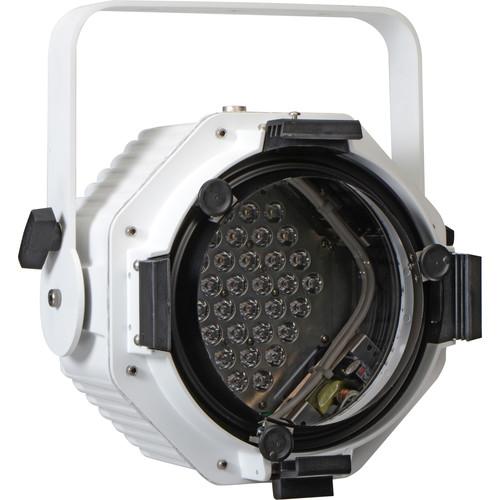

User Manual for Altman Spectra PAR 100 LED Fixture, White Click to enlarge the picture
Contents of the user manual for the Altman Spectra PAR 100 LED Fixture,
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra PAR 100 LED Fixture, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman SS-PAR-100 White Spectra PAR LED Fixture is a portable outdoor weather unit with a flexible power supply cord and male and female DMX-512 data supply cords. The SS-PAR-100 is rated as 100 Watts. It uses red, green, blue and amber LEDs. Designed for theatrical and architectural applications, this fixture comes complete with interchangeable Narrow, Very Narrow Spot, Medium and Wide Flood Lenses for versatility of use. - True Theatrical Fixture
-
- Compatible with 8/16 bit DMX and RDM protocols
- Feed thru power & data capabilities up to 1000 feet, daisy-chained
- Push button addressing
- Pre-programmed modes
- Personalities (color combinations) and Resolutions (transition smoothness) may be finely tuned
- Built-in flicker-free TV mode
- Convection cooling system provides silent operation
- Architectural Fixture
-
- Indoor or outdoor use
- Corrosion-resistant aluminum die-cast housing
- Interchangeable VNSP, NSP, MFL and WFL lenses
- Stand-Alone Pre-Programmed Operational Modes (Control board not required)
- Stand, pipe or floor mounting is possible (with optional equipment)
- Outdoor IP65 rating
- ETL and c-ETL pending under Altman File 9700680 for Portable Electric Luminaires (UL Standard 153) and Surface Mount Luminaires (UL Standard 1598)
In the Box Altman Spectra PAR 100 LED Fixture, White (120-240V) Lenses for Star, OD PAR - Set of Four Steel Safety Cable (36", Black) Flat Blade Yoke Power Cord One Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra PAR 100 LED Fixture, White in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Par 100 Specs | Rating | Fixture: 100 Watts, 120-240V AC to integral power unit
Each LED: 3-watts | | Color Range | Luxeon K2 Red, Green, Blue, and Amber | | Operating Voltage | 120V-240V AC | | Dimming | On-board, or thru your control board | | Cable | 6.0' (2.0 m) power cord, DMX512 control cable | | Mount | Flat blade yoke with hole provided
Pipe, stand, or floor mounting possible | | Dimensions | 11.63 x 13.58 x 9.78" (29.5 x 34.5 x 24.8cm) (WxHxD) including yoke | | Weight | ~30 lbs (13.6kg) | | | | Package Weight | 31.5 lb | | Box Dimensions (LxWxH) | 20.5 x 20.5 x 18.7" |
