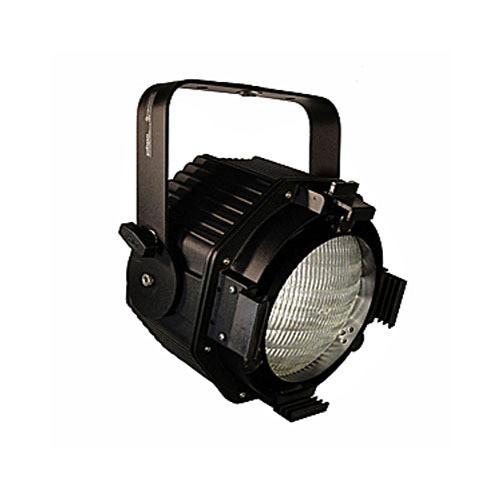

User Manual for Altman Spectra PAR 100W White LED Light Click to enlarge the picture
Contents of the user manual for the Altman Spectra PAR 100W White LED
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra PAR 100W White LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The Altman Spectra PAR 100W White LED Light is a 100W PAR luminaire which is certified for use in both indoor and outdoor theatrical venues. This true PAR comes with a complete set of lenses: VNSP very narrow spot), NSP (narrow spot), MFL (medium flood) and WFL (wide flood). Designed to be used as a single unit or in groups, the light can be connected in a series up to 1,000’ long.
The Spectra PAR 100W has a 3,000K almost maintenance-free 50,000 lamp and can be controlled by with both DMX and RDM protocols. The multi-voltage power supply allows it to be used virtually anywhere in the world. - 3000º Kelvin White Luxeon Rebel LED''s
- Interchangeable VNSP, NSP, MFL, and WFL lenses
- On board multi-voltage power supply; 100-240 VAC
- Feed thru data capabilities
- Compatible with DMX and RDM protocols
- Manual over ride and DMX personality functions
- Die cast aluminum housing
- ETL, c.ETL & CE listed for Indoor / outdoor use
In the Box Altman Spectra PAR 100W White LED Light (Black) Safety Cable with Spring Clip Installation and Instruction Manual Set of 4 Lenses (VNSP, NSP, MFL, WFL) Limited 1-Year Warranty User Manual PDF 442.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra PAR 100W White LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Par 100 Specs | Materials | All corrosion-resistant materials and hardware | | Housing | Die-cast aluminum | | Light Source | 3,000K White Light Luxeon Rebel LED's 100 Watt
lamp life: 50,000 hours | | Lumens | 6,000 | | Lenses | Borosilicate glass - 8.0" (20.3 cm) Diameter PAR 64 | | Photometrics | VSNP lens, H x V
118 fc (1,267 lux) at 20' (6.1 m) with an 3.3 x 3.3 (1.0 x 1.0 m) beam size and 6.7 x 6.7' (2.0 x 2.0 m) field size
NSP lens, V x H
91 fc (979 lux) at 20' (6.1 m) with an 4.4 x 4.4 (1.3 x 1.3 m) beam size and 8.5 x 8.5' (2.6 x 2.6 m) field size
MFL lens, H x V
45 fc (487 lux) at 20' (6.1 m) with an 7.4 x 4.9 (2.3 x 1.5 m) beam size and 16.7 x 12' (4.1 x 2.9 m) field size
WFL lens, H x V
22 fc (237 lux) at 20' (6.1 m) with an 14 x 7.1 (4.3 x 2.1 m) beam size and 21.5 x 13.8' (6.6 x 4.2 m) field size | | Operating Voltage | Multi-voltage; 100 - 240V AC 50/60Hz operation | | Data Ports | 1 Male and 1 female 5-pin XLR - each on 6.0' ( m) long cable | | Cable | 6.0' (1.82 m) total length bare lead | | Finish | Black TGIC Polyester, applied electrostatically | | Dimensions | 9.75 x 10.5 x 13.6 (25 x 27 x 35 cm) | | Weight | 22 lb (9.98 kg) |
