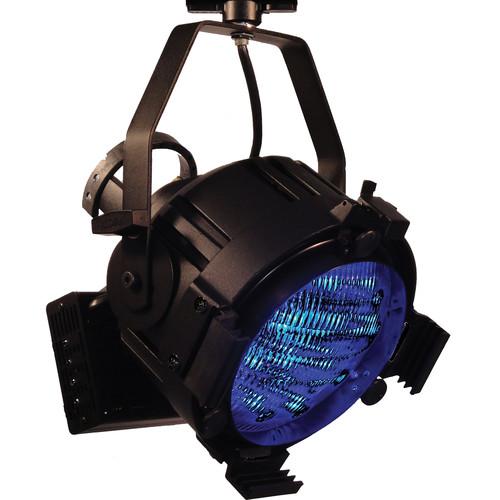

User Manual for Altman Spectra Star PAR 100W 3000K Dimmable LED Luminaire Click to enlarge the picture
Contents of the user manual for the Altman Spectra Star PAR 100W 3000K
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Star PAR 100W 3000K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The die-cast silver Altman Spectra Star PAR 100W 3000K Dimmable LED Luminaire is a rugged, lightweight, fixture with DMX control and RDM bi-directional communication capability that is also mains dimmable. The luminaire uses warm white LED emitters that yield a flicker-free color temperature of 3000K. The fully rotational lens holder conveniently accepts the included VNSP, NSP, MFL, and WFL lenses, which are interchangeable without the use of tools. The removable, two-slot accessory holder has a self-closing, self-locking retaining latch for safety.
- 3000K high CRI Luxeon Rebel LEDs
- Tool-free exchange of included VNSP, NSP, MFL, and WFL lenses and optional XWFL lens
- Compatible with DMX and RDM protocols
- DMX Address assignable via RDM or on-board push button display
- User-selectable 8 and 16-bit personalities for smooth fades from 0-100%
- Flicker-free on-camera operation
- Replaceable two-slot accessory holder with self-closing, self-locking accessory retaining latch accepts standard Star PAR accessories
- Pre-programmed modes for fixed colors, timed color changes, and strobes
- On-board, multi-voltage power supply
- Available black, white, and silver paint finishes
- ETL and cETL pending for indoor use
- Photometrics
- VNSP Lens
471 fc / 5068 lux at 10' / 3 m
209 fc / 2252 lux at 15' / 4.6 m
118 fc / 1267 lux at 20' / 6.1 m
75 fc / 811 lux at 25' / 7.6 m
NSP Lens
364 fc / 3917 lux at 10' / 3 m
162 fc / 1741 lux at 15' / 4.6 m
91 fc / 979 lux at 20' / 6.1 m
58 fc / 627 lux at 25' / 7.6 m
MFL Lens
181 fc / 1948 lux at 10' / 3 m
80 fc / 866 lux at 15' / 4.6 m
45 fc / 487 lux at 20' / 6.1 m
29 fc / 312 lux at 25' / 7.6 m
WFL Lens
88 fc / 947 lux at 10' / 3 m
39 fc / 421 lux at 15' / 4.6 m
22 fc / 237 lux at 20' / 6.1 m
14 fc / 152 lux at 25' / 7.6 m In the Box Altman Spectra Star PAR 100W 3000K Dimmable LED Luminaire (Silver) Set of 4 Lenses (VNSP, NSP, MFL, WFL) 36.00" (0.91 m) Black Safety Cable with Spring Clip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Star PAR 100W 3000K Dimmable LED Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Star Par Specs | Housing | Die-cast aluminum construction | | Materials | Corrosion-resistant materials and hardware | | Yoke | Rigid flat steel with locking-dog tilt handle | | Light Engine | Luxeon Rebel LEDs: 100 W max
341 BTUs: 1 W = 3.41 BTUs | | Color Temperature | 3000K | | Lens | 4 x Borosilicate glass 8" diameter PAR64 lenses provided (total of five lenses available)
Fully rotational lens holder provided with three insulated finger tabs
Lenses interchangeable tool-free
360°beam rotation | | Accessories | Removable front-end accessory holder equipped with two slots accepting standard 10.0" (25.4 cm) accessories
Accessory holder retaining latch self-closing and self-locking for safety | | Operating Voltage | Multi-Voltage; 120-240 VAC 50/60 Hz
0.83 A (120 V) or 0.41 A (240 V) | | Data Connector | DMX-512A and RDM via 6.0' (2.0 m) 5-pin XLR male and female tails (portable units) or Smart Track adapter | | Cable | 6.0' / 2.0 m total length bare end lead | | Finish | TGIC polyester, electrostatic application | | Dimensions | 15.25 x 10.5 x 11.75" / 39.00 x 27.0 x 30.00 cm | | Weight | 16.00 lb / 7.26 kg |
