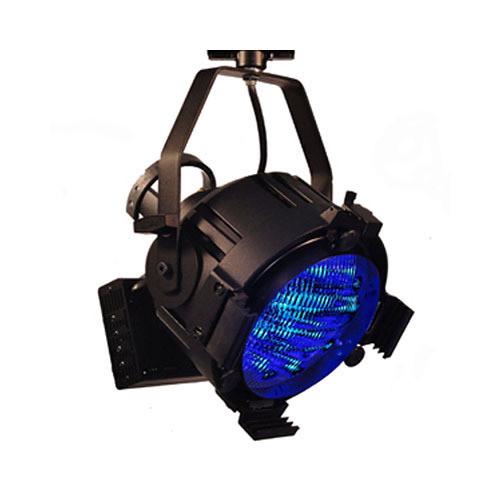

User Manual for Altman Spectra Star PAR 100W RGBA LED Click to enlarge the picture
Contents of the user manual for the Altman Spectra Star PAR 100W RGBA
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Star PAR 100W RGBA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The die-cast Altman Spectra Star PAR 100W RGBA LED (Black) is a rugged, lightweight, fixture with DMX control and RDM bi-directional communication capability. It comes with an on-board library of single color and color combinations which are selectable via a push button display. The fully rotational lens holder easily accepts the included VNSP, NSP, MFL, WFL lenses, which are interchangeable without the use of tools. The removable, two slot accessory holder has a self-closing, self-locking, retaining latch for safety.
- Red, green, blue and amber Luxeon Rebel LEDs
- Tools-free exchange of included VNSP, NSP, MFL, WFL lenses and optional XWFL lens
- Compatible with DMX and RDM protocols
- DMX Address assignable via RDM or on-board push button display
- User selectable 8 and 16-Bit personalities for smooth fades from 0 - 100%
- Flicker-free on-camera operation
- Replaceable two-slot accessory holder with self-closing, self-locking accessory retaining latch accepts standard Star PAR accessories
- Pre-programmed modes for fixed colors, timed color changes and strobes
- On-board, multi-voltage power supply
- Available black, white, and silver paint finishes
- ETL and cETL pending for indoor use
In the Box Altman Spectra Star PAR 100W RGBA LED (Black) Set of 4 Lenses (VNSP, NSP, MFL, WFL) 36" (0.91 m) Black Safety Cable with Spring Clip 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Star PAR 100W RGBA LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Star Par Specs | Housing | Die-cast aluminum construction | | Materials | Corrosion-resistant materials and hardware | | Yoke | Rigid flat steel with locking-dog tilt handle | | Light Engine | Luxeon Rebel LEDs- 100W max at full RGBA | | Lens | 4 Borosilicate glass 8" diameter PAR64 lenses provided (total of five lenses available).
Fully rotational lens holder provided with three insulated finger tabs.
Lenses interchangeable tool-free.
360°beam rotation. | | Photometrics | VSNP lens, H x V
54 fc (579 lux) at 20' (6.1 m) with an 3.3 x 3.3 (1.0 x 1.0 m) beam size and 6.7 x 6.7' (2.0 x 2.0 m) field size
NSP lens, V x H
37 fc (395 lux) at 20' (6.1 m) with an 4.4 x 4.4 (1.3 x 1.3 m) beam size and 8.5 x 8.5' (2.6 x 2.6 m) field size
MFL lens, H x V
20 fc (218 lux) at 20' (6.1 m) with an 7.4 x 4.9 (2.3 x 1.5 m) beam size and 13.4 x 9.6' (4.1 x 2.9 m) field size
WFL lens, H x V
10 fc (109 lux) at 20' (6.1 m) with an 14 x 7.1 (4.3 x 2.1 m) beam size and 21.5 x 13.8' (6.6 x 4.2 m) field size | | Beam Angle | VNSP: 9.5 x 9.5°
NSP 12.5 x 12.5°
MFL: 21 x 14°
WFL 38.5 x 20° | | Field Angle | VNSP: 19 x 19°
NSP: 24° x 24°
MFL: 37 x 27°
WFL: 56.5° x 38° | | Light Sensitivity | Lumens per watt
VNSP: 9.10
NSP: 9.77
MFL: 9.37
WFL: 10.78
Field lumens
VNSP: 855
NSP: 917
MFL: 880
WFL: 1,012
Candela (cd)
VNSP: 21,522
NSP: 14,673
MFL: 8,092
WFL: 4,066 | | Accessories | Removable front-end accessory holder equipped with two slots accepting standard 10" (25.4 cm) accessories.
Accessory holder retaining latch self-closing and self-locking for safety. | | Operating Voltage | Multi-Voltage; 120-240V AC 50/60 Hz
0.83 amps (120V) or 0.41 amps (240V) | | Color Range | RGB | | Data Connector | DMX-512A and RDM via 6.0' (2.0 m) 5-pinXLR male and female tails (portable units) or Smart Track adapter | | Cable | 6.0' (2.0 m) total length bare end lead | | Finish | Black TGIC polyester, electrostatic application | | Dimensions | 15.25 x 10.5 x 11.75" (39 x 27 x 30 cm) | | Weight | 16 lb (7.26 kg) | | | | Package Weight | 25.8 lb | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 19.0" |
