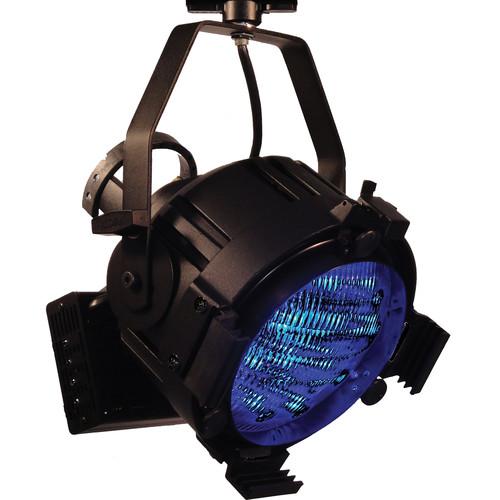

User Manual for Altman Spectra Star PAR 100W RGBW LED Luminaire Click to enlarge the picture
Contents of the user manual for the Altman Spectra Star PAR 100W RGBW
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Star PAR 100W RGBW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The die-cast black Altman Spectra Star PAR 100W RGBW LED Luminaire is a rugged, lightweight, fixture with DMX control and RDM bi-directional communication capability. The luminaire uses red, green, blue, and white LED emitters that yield a flicker-free light with a variety of color options. The fully-rotational lens holder conveniently accepts the included VNSP, NSP, MFL, WFL lenses, which are interchangeable without the use of tools. The removable, two slot accessory holder has a self-closing, self-locking, retaining latch for safety.
- Red, green, blue, and amber high CRI Luxeon Rebel LEDs
- Tools-free exchange of included VNSP, NSP, MFL, WFL lenses and optional XWFL lens
- Compatible with DMX and RDM protocols
- DMX Address assignable via RDM or on-board push button display
- User-selectable 8- and 16-Bit personalities for smooth fades from 0 - 100%
- Flicker-free on-camera operation
- Replaceable two-slot accessory holder with self-closing, self-locking accessory retaining latch accepts standard Star PAR accessories
- Pre-programmed modes for fixed colors, timed color changes and strobes
- On-board, multi-voltage power supply
- Available black, white, and silver paint finishes
- ETL and cETL pending for indoor use
In the Box Altman Spectra Star PAR 100W RGBW LED Luminaire (Black) Set of 4 Lenses (VNSP, NSP, MFL, WFL) 36" (0.91 m) Black Safety Cable with Spring Clip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Star PAR 100W RGBW LED Luminaire in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Star Par Specs | Housing | Die-cast aluminum construction | | Materials | Corrosion-resistant materials and hardware | | Yoke | Rigid flat steel with locking-dog tilt handle | | Light Engine | Luxeon Rebel LEDs- 100W max
341 BTUs - 1 watt = 3.41 BTUs | | Color Temperature | RGBW | | Lens | 4 Borosilicate glass 8" diameter PAR64 lenses provided (total of five lenses available)
Fully rotational lens holder provided with three insulated finger tabs
Lenses interchangeable tool-free
360°beam rotation | | Accessories | Removable front-end accessory holder equipped with two slots accepting standard 10" (25.4 cm) accessories
Accessory holder retaining latch self-closing and self-locking for safety | | Operating Voltage | Multi-Voltage; 120-240 VAC 50/60 Hz
0.83 amps (120V) or 0.41 amps (240V) | | Data Connector | DMX-512A and RDM via 6.0' (2.0 m) 5-pinXLR male and female tails (portable units) or Smart Track adapter | | Cable | 6.0' (2.0 m) total length bare end lead | | Finish | TGIC polyester, electrostatic application | | Dimensions | 15.25 x 10.5 x 11.75" (39 x 27 x 30 cm) | | Weight | 16 lb (7.26 kg) |
