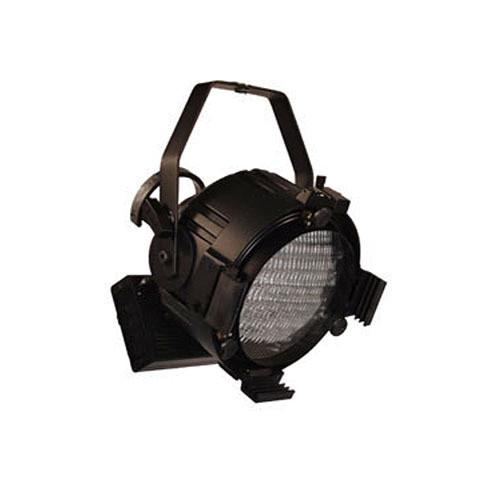

User Manual for Altman Spectra Star White PAR LED Light Click to enlarge the picture
Contents of the user manual for the Altman Spectra Star White PAR LED
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Spectra Star White PAR LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The die-cast Altman Spectra Star White PAR 100W LED (White) is a rugged, lightweight, fixture with DMX control and RDM bi-directional communication capability. The luminaire uses warm white LED emitters that yield a flicker-free color temperature of 3,000K. The fully rotational lens holder conveniently accepts the included VNSP, NSP, MFL, WFL lenses, which are interchangeable without the use of tools. The removable, two slot accessory holder has a self-closing, self-locking, retaining latch for safety.
- 3,000K high CRI Luxeon Rebel LEDs
- Tools-free exchange of included VNSP, NSP, MFL, WFL lenses and optional XWFL lens
- Compatible with DMX and RDM protocols
- DMX Address assignable via RDM or on-board push button display
- User selectable 8 and 16-Bit personalities for smooth fades from 0 - 100%
- Flicker-free on-camera operation
- Replaceable two-slot accessory holder with self-closing, self-locking accessory retaining latch accepts standard Star PAR accessories
- Pre-programmed modes for fixed colors, timed color changes and strobes
- On-board, multi-voltage power supply
- Available black, white, and silver paint finishes
- ETL and cETL pending for indoor use
In the Box Altman Spectra Star White PAR LED Light (White) Set of 4 Lenses (VNSP, NSP, MFL, WFL) 36" (0.91 m) Black Safety Cable with Spring Clip 1 Year Manufacturer's Warranty User Manual PDF 442.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra Star White PAR LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Spectra Star Par Specs | Housing | Die-cast aluminum construction | | Materials | Corrosion-resistant materials and hardware | | Yoke | Rigid flat steel with locking-dog tilt handle | | Light Engine | Luxeon Rebel LEDs: 100 W max
341 BTUs (1 W = 3.41 BTUs) | | Color Temperature | 3,000K | | Lens | 4 Borosilicate glass 8" diameter PAR64 lenses provided (total of five lenses available).
Fully rotational lens holder provided with three insulated finger tabs.
Lenses interchangeable tool-free.
360° beam rotation. | | Photometrics | VSNP lens, H x V
118 fc (1,267 lux) at 20' (6.1 m) with an 3.3 x 3.3 (1.0 x 1.0 m) beam size and 6.7 x 6.7' (2.0 x 2.0 m) field size
NSP lens, V x H
91 fc (979 lux) at 20' (6.1 m) with an 4.4 x 4.4 (1.3 x 1.3 m) beam size and 8.5 x 8.5' (2.6 x 2.6 m) field size
MFL lens, H x V
45 fc (487 lux) at 20' (6.1 m) with an 7.4 x 4.9 (2.3 x 1.5 m) beam size and 13.4 x 9.6' (4.1 x 2.9 m) field size
WFL lens, H x V
22 fc (237 lux) at 20' (6.1 m) with an 14 x 7.1 (4.3 x 2.1 m) beam size and 21.5 x 13.8' (6.6 x 4.2 m) field size | | Beam Angle | VNSP: 9.5 x 9.5°
NSP 12.5 x 12.5°
MFL: 21 x 14°
WFL 38.5 x 20° | | Field Angle | VNSP: 19 x 19°
NSP: 24° x 24°
MFL: 37 x 27°
WFL: 56.5° x 38° | | Light Sensitivity | Lumens per Watt
VNSP: 19.91
NSP: 24.23
MFL: 17.48
WFL: 19.43
Field lumens
VNSP: 1,870
NSP: 2,275
MFL: 1,970
WFL: 2,189
Candela (cd)
VNSP: 47,100
NSP: 36,400
MFL: 18,100
WFL: 8,800 | | Accessories | Removable front-end accessory holder equipped with two slots accepting standard 10" (25.4 cm) accessories.
Accessory holder retaining latch self-closing and self-locking for safety. | | Operating Voltage | Multi-Voltage; 120-240 VAC 50/60 Hz
0.83 A (120 V) or 0.41 A (240 V) | | Color Range | RGB | | Data Connector | DMX-512A and RDM via 6.0' (2.0 m) 5-pin XLR male and female tails (portable units) or Smart Track adapter | | Cable | 6.0' (2.0 m) total length bare end lead | | Finish | White TGIC polyester, electrostatic application | | Dimensions | 15.25 x 10.5 x 11.75" (39 x 27 x 30 cm) | | Weight | 16 lb (7.26 kg) |
