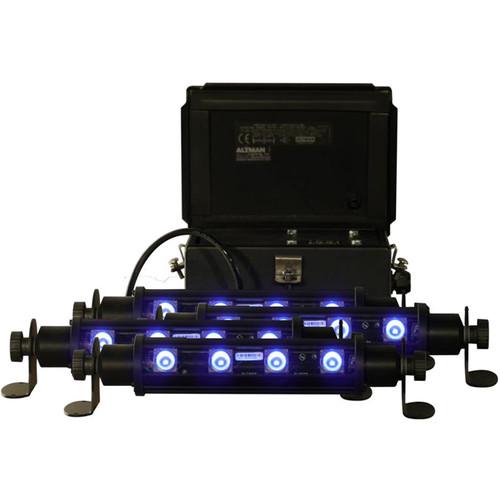

User Manual for Altman Spectra UV 40 LED Blacklight System Click to enlarge the picture
Contents of the user manual for the Altman Spectra UV 40 LED Blacklight
- Product category: DJ & Effect Lights Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman DJ & Effect Lights
|
User manual for the Altman Spectra UV 40 LED Blacklight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description Designed for stage or studio the 60° Spectra UV 40 LED Blacklight System from Altman is a special effects 4-module, microprocessor-controlled fixture with 4 LED emitters in each module. The modules are enclosed in a corrosion-resistant metal housing and its IP65 rating makes it suitable for outdoor use in wet environments. The brackets on each LED module can be removed and repositioned as needed for vertical or horizontal mounting. Features include individual swiveling of the LED cells for precise positioning and coverage. The UV 40 is compatible with both DMX and RDM protocols and can be dimmed via DMX from 0-100%. A separate multi-voltage AC power supply is provided for worldwide use. - Benefits
-
- High-performance, long-life UV-A emitters
- Less visible light than traditional black lights
- Individual focus of the UV cells
- Interchangeable yoke for vertical or horizontal alignment of the LED cells
- Compatible with DMX and RDM protocols
- DMX address assignable via RDM or on-board push-button display
- Feed through power and data capabilities
- User-selectable 8- and 16-bit personalities for smooth fades from 0 to 100%
- Pre-programmed modes for full on, strobe, or manual dimming
- On board multi-voltage power supply
- ETL, cETL and IP65 listed
- Made in the USA
In the Box Altman Spectra UV 40 LED Blacklight System (60°) 4 x SS-UV10 Fixtures Power Supply 4 x Head Cables (6') UV10C IP65 Extension Cable (6') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Spectra UV 40 LED Blacklight System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman UV 40 Specs | Material | Lightweight aluminum, corrosion-resistant materials and hardware | | IP Rating | IP65, Outdoor use | | Light Source | 4 x 10 W UV modules
4 x Nichia 365 nm SMD LEDs per module | | Lens | 60° | | Wavelength | 365 nm UV-A | | Input/Output | 1 x AC input
4 x power outputs
1 x DMX input (5-pin XLR male)
1 x DMX output (5-pin XLR female) | | Protocols | DMX, RDM | | Dimming | Yes, 0-100% via DMX | | Display/Controls | Three-digit LED display with three buttons | | Power Requirements | 100-240 VAC | | Power Cable | 6.0' (1.8 m) waterproof cable with bare leads | | Finish | Anodized black | | Listings | ETL, cETL, RoHS and CE compliance | | Dimensions | Light: 12.75 x 2.57 x 2.8" (323.9 x 65.3 x 71.1 mm)
Power Supply: 9.75 x 6.6 x 4.0" (247.7 x 167.6 x 101.6 mm) | | Weight | Approx. 20 lb (9.0 kg) |
