Altman Star Par CDM Par Light

Search your instruction manual in PDF to download

User Manual for Altman Star Par CDM Par Light - 39 Watts

Click to enlarge the picture
Altman Star Par CDM Par Light - 39 Watts Contents of the user manual for the Altman Star Par CDM Par Light
  • Product category: Architectural Lights Altman
  • Brand: Altman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Altman Architectural Lights

Altman Star Par CDM Par Light - 39 Watts Altman Star Par CDM Par Light - 39 Watts Altman Star Par CDM Par Light - 39 Watts
User manual for the Altman Star Par CDM Par Light contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Altman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!



Product description

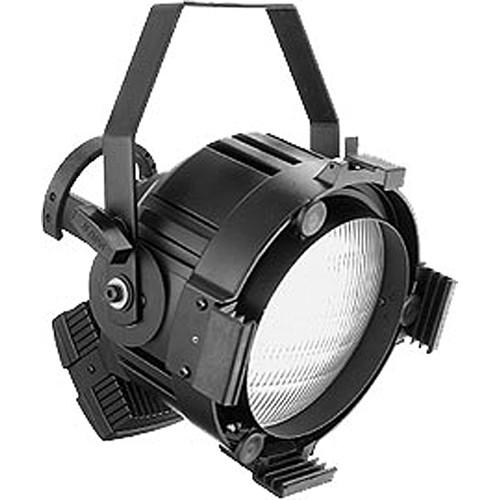

The die-cast Altman CDM Star Par is a rugged, lightweight alternative to conventional Par 64 fixtures. The fully rotational lens holder easily accepts a variety of lenses; the included lenses are interchangeable without the use of tools. The removable, two slot accessory holder has a self-closing, self-locking retaining latch for safety. When fitted with a 39 watt CDM bulb (available separately), and a Narrow Spot Lens (included), this 277 volt fixture will throw a beam of 24.7 footcandles 17x17 feet from a distance of 50 feet.
  • The aesthetic appearance and ergonomically designed function controls add to the appeal of this versatile architectural fixture.
  • Cool-running, low-consumption fixture has a high color rending index.
    Uses CDM bulbs with a 12,000 hour life expectancy.
  • Die-cast aluminum construction. Corrosion-resistant materials and hardware.
  • Four light-shaping lenses are included: Very Narrow Spot, Narrow Spot, Medium, and Wide Flood.
  • Low-friction hi-temp lens holder with plastic handles allows full rotation via 3 insulated finger tabs.
  • Yoke supplied with positive locking dog.
In the Box Altman Star Par CDM Par Light - 39 Watts (277V AC)

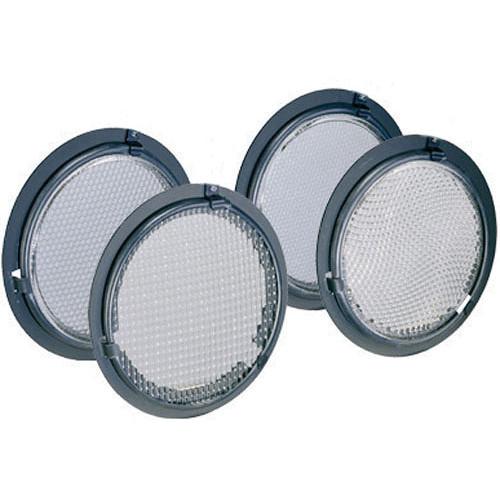

  • 4 x Lenses, 1 each: Very Narrow Spot (VNSP)
    Narrow Spot (NSP)
    Medium Flood (MFL)
    Wide Flood (WFL)

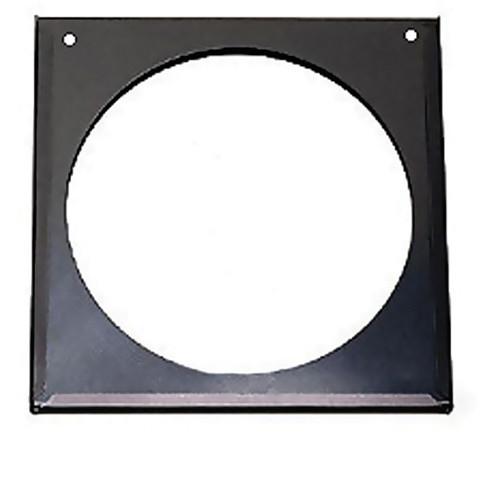

  • 10x10" Color Frame (8CF)

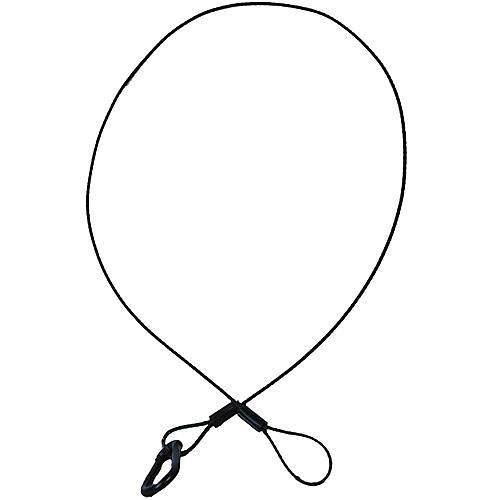

  • Safety Cable with Spring Clip (SC36BK)
  • 3', 3 conductor Power Cable, no plug
  • 1 Year Manufacturer's Warranty Note: CDM Bulb and Pipe Clamp not included
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman Star Par CDM Par Light - 39 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman Star Par CDM Specs

    Rating 39 watts, 277 volts
    Socket (Lampholder) G12 for Ceramic Halide bulb
    Lens (Condenser) 4- included, 1 optional
    Mounting Flat steel yoke with .5" bolt hole
    Weight 25 lbs (11 kg)
    Dimensions 11.5 x 13.6 x 13" (29 x 35 x 33 cm) including yoke

    Rating

    80% users recommend this product to others. And what about you?
    Rating: 4 of 5

    This product has already been rated by 32 owners. Add your rating and experience with the product.
