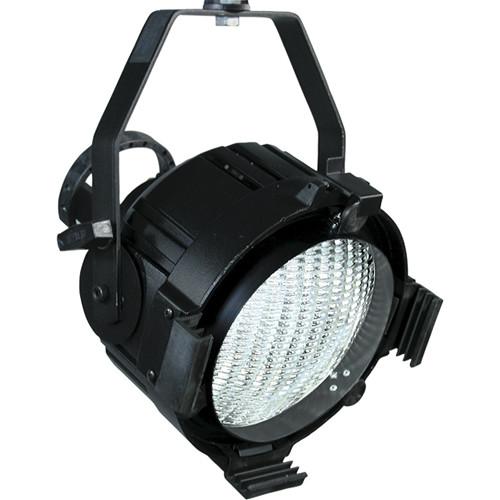

User Manual for Altman Star PAR Luminaire with Four Lenses Click to enlarge the picture
Contents of the user manual for the Altman Star PAR Luminaire with Four
- Product category: Stage & Studio Altman
- Brand: Altman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Altman Stage & Studio
|
User manual for the Altman Star PAR Luminaire with Four contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Altman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!
|
Product description The black Star PAR Luminaire from Altman is a rugged, lightweight alternative to conventional PAR 64 luminaires. The highly polished specular reflector has been designed to operate most efficiently with the new generation of 575-watt tungsten halogen lamps. This model Star PAR is equipped with a G9.5 socket.
The fully rotational lens holder easily accepts a variety of lenses, and the lenses are interchangeable tool-free. The removable, two-slot accessory holder has a self-closing, self-locking retaining latch for safety. A stylish modern-industrial appearance and ergonomically designed function controls add to the appeal of this versatile luminaire. -
- Rugged die-cast aluminum construction
- Reflector made of high-grade aluminum, polished to a mirror finish
- Four interchangeable lenses: very narrow spot through wide flood provided with fixture
- Low-friction, hi-temp lens holder with plastic handles, fully rotatable via three insulated finger tabs
- Replaceable two-slot accessory holder with self-locking accessory retaining latch
- Protective, insulated, rear-mounted handle serving as chord wrap, stand and focusing aid
- Accepts standard 10" accessories
- Color frame and safety cable included
- Three 36" Teflon lead wires
- U.L. and c.U.L. listed for 575W
- Made in the USA
In the Box Altman Star PAR Luminaire with Four Lenses (575W, 120-240V, Black) Color Frame for 75Q, 175Q Steel Safety Cable (36", Black) Very Narrow Spot Lens for Star, OD PARS Narrow Spot Lens for Star, OD PARS Medium Flood Lens for Star, OD PARS Wide Flood Spread Lens for Star, OD PARS Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Altman Star PAR Luminaire with Four Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAltman Star Par Specs | Materials | Construction employs all corrosion-resistant materials and hardware | | Housing | Die-cast aluminum construction | | Yoke | Rigid flat steel yoke with locking dog handle | | Reflector | Aluminum, chemically polished and coated | | Lenses | Very narrow spot, narrow spot, medium flood, and wide flood | | Socket (Lampholder) | G9.5 tool-free relamping | | Rating | 120-240 VAC/VDC operation, 575 W | | Cable | 36" (91.4 cm) Teflon leads encased in black sleeving | | Focusing Mechanism | Rear-mounted protective handle | | Finish | Black epoxy Sandtex, electrostatic application | | Dimensions | 11.5 x 11.5 x 13.6" (29 x 29 x 35 cm) | | Weight | Approximately 8 lb (3.6 kg) |
