Product description - Make ANY loudspeaker wireless -- Alto Professional Stealth Wireless Kit

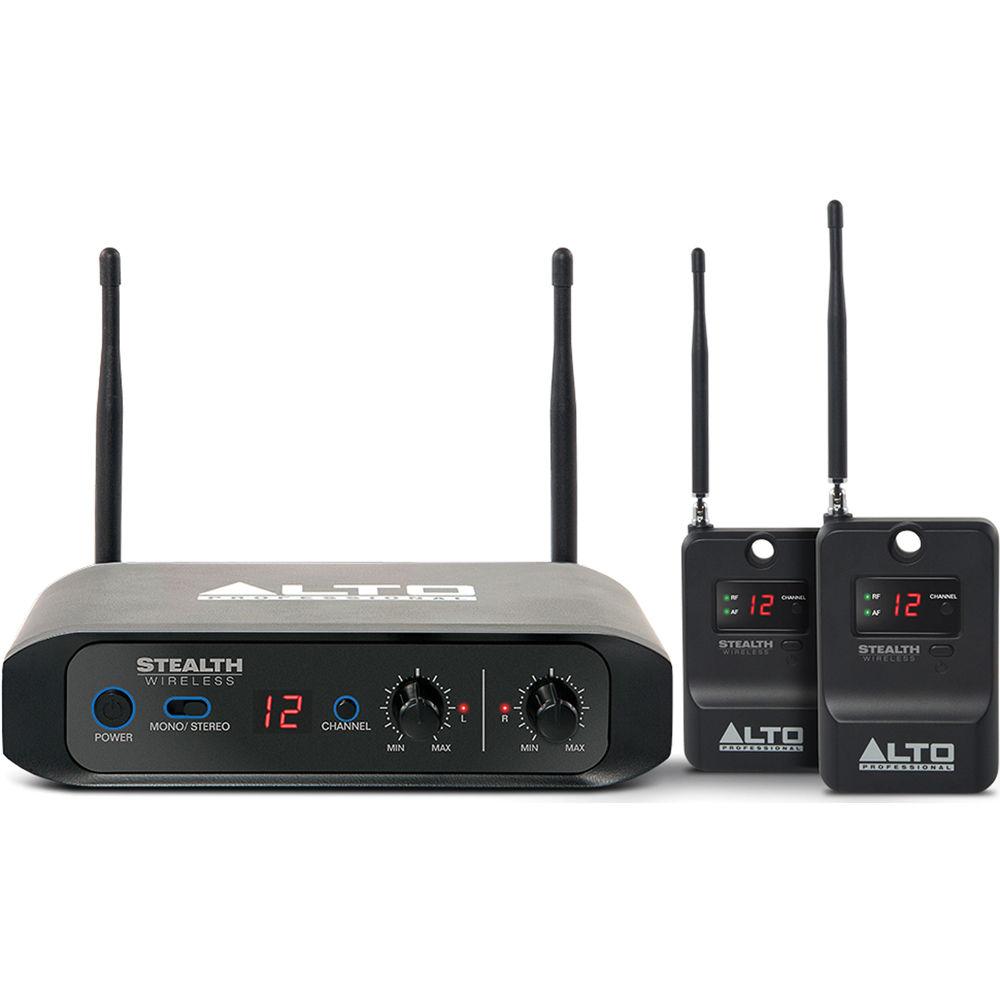

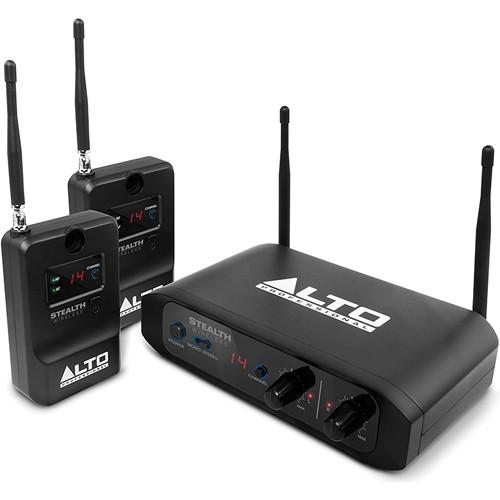

The Alto Stealth Wireless Stereo System is a complete, ready-to-use wireless audio system, which consists of a single dual-channel transmitter and two single-channel receivers. Designed for active loudspeakers, it replaces hundreds of feet of audio cable with a reliable wireless connection. Additionally, the system can accommodate passive speaker and amplifiers as well, resulting much less work, and a huge savings in audio cables.

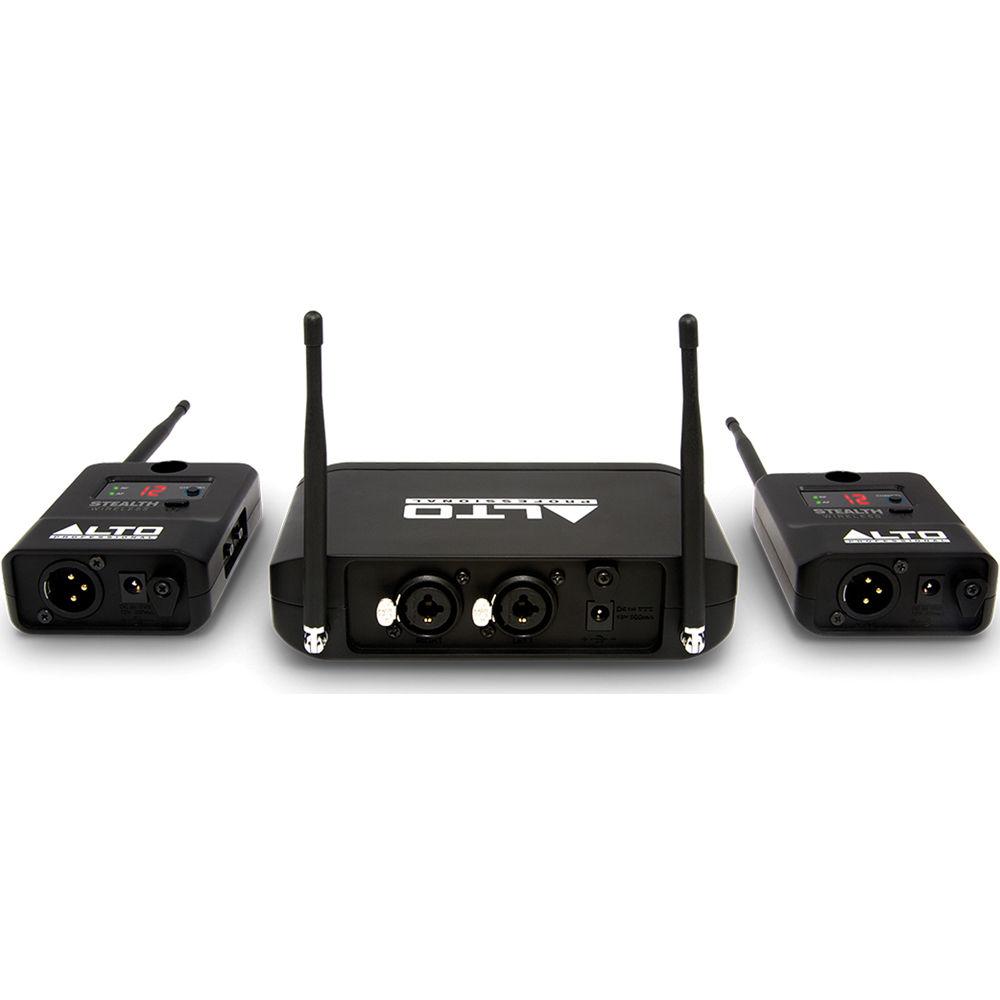

The transmitter features two combo XLR-1/4" inputs for connecting to a variety of professional equipment including mixers, DJ controllers, or any audio source, while the receiver offers a single XLR output. There are up to 16 reliable UHF channels to minimize interference and a manually-set squelch control with three-settings to help optimize performance. The Alto Stealth Wireless Stereo System ships with an assortment of mounting hardware and accessories including three power supplies, two XLR cables, two M10 screws, two machine screws, and two hook-and-loop fasteners. -
- Add wireless audio connectivity to any active loudspeaker
- Enjoy faster setups and teardowns
- Eliminate complex cable runs
- One dual-channel transmitter with two XLR-1/4"
- Two single-channel receivers, each with one XLR output (per unit)
- Replaces up to 200' of console-to-system cabling
- No compromise in audio quality
- Reliable UHF band; 16 selectable channels
- Adjustable squelch eliminates interference
- Grow your system using the optional Stealth Wireless Expander Pack
- Transmitter: 2 x Combo XLR-1/4 inputs
- Receiver: 1 x XLR output (per receiver)
UPC: 816311011068 In the Box Alto Professional Stealth Wireless Stereo System for Active Loudspeakers Stealth Wireless Transmitter 2 x Stealth Wireless Receivers 3 x Power Supplies 2 x XLR Cables 2 x M10 Screws 2 x Machine Screws 2 x Hook-and-Loop Strips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional Stealth Wireless Stereo System for Active Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional STEALTH WIRELESS Specs | | | Type | Dual-Channel Transmitter | | RF Frequency Range | 540 - 570 MHz | | Oscillation Mode | PLL | | Channels | 16 Preset Channels (Stereo) | | Frequency Response | 50 Hz to 17 kHz (3 dB) | | Bandwidth | 24 or 30 MHz | | Frequency Stability | 0.005% | | Frequency Deviation | 20 kHz | | LED Indicators | Power On/Off, Sig/Clip | | Power | External Adapter: 12 VDC / 300 mA | | Output Power | <10 mW | | Controls | Power Switch; Channel Select; Mono/Stereo Switch | | Dimensions | 6.3 x 5.0 x 4.0" / 160.5 x 127.0 x 101.6 mm (with Antennas) | | Weight | 10.2 oz / 289.2 g | | | | Type | Single-Channel Receiver | | Channels | 16 Preset Channels | | RF Frequency Range | 540 - 570 MHz | | Signal to Noise Ratio | >100 dB/A | | RF Sensitivity | -100 dBm | | Image Rejection | >70 dB | | Total Harmonic Distortion | <0.5% @ 1 kHz | | LED Indicator | Power On, RF/AF LED Indicator | | AF Output | Impedance: 660 Ohms Balanced | | Squelch | 3-Step and Pilot Tone | | Operating Voltage | 12 VDC, 300 mA | | Dimensions | 4.6 x 2.7 x 1.2" / 116.3 x 69.6 x 31.5 mm (with Antenna) | | Weight | 4.2 oz / 117.7 g | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 13.6 x 13.4 x 2.3" |
