Alto Professional Stealth Wireless System Kit

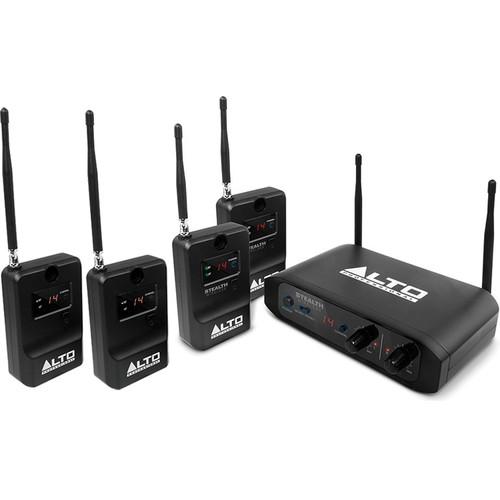

User Manual for Alto Professional Stealth Wireless System Kit with 2-Receiver Expander Pack

• Product category: Speaker Accessories Alto Professional
• Brand: Alto Professional
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Alto Professional Speaker Accessories

Product description

• Alto Professional Stealth Wireless Stereo System for Active Loudspeakers
  • Make ANY loudspeaker wireless -- Alto Professional Stealth Wireless Kit
  The Alto Stealth Wireless Stereo System is a complete, ready-to-use wireless audio system, which consists of a single dual-channel transmitter and two single-channel receivers. Designed for active loudspeakers, it replaces hundreds of feet of audio cable with a reliable wireless connection. Additionally, the system can accommodate passive speaker and amplifiers as well, resulting much less work, and a huge savings in audio cables.

  The transmitter features two combo XLR-1/4" inputs for connecting to a variety of professional equipment including mixers, DJ controllers, or any audio source, while the receiver offers a single XLR output. There are up to 16 reliable UHF channels to minimize interference and a manually-set squelch control with three-settings to help optimize performance. The Alto Stealth Wireless Stereo System ships with an assortment of mounting hardware and accessories including three power supplies, two XLR cables, two M10 screws, two machine screws, and two hook-and-loop fasteners.
  • • Add wireless audio connectivity to any active loudspeaker
    • Enjoy faster setups and teardowns
    • Eliminate complex cable runs
    • One dual-channel transmitter with two XLR-1/4"
    • Two single-channel receivers, each with one XLR output (per unit)
    • Replaces up to 200' of console-to-system cabling
    • No compromise in audio quality
    • Reliable UHF band; 16 selectable channels
    • Adjustable squelch eliminates interference
    • Grow your system using the optional Stealth Wireless Expander Pack
    • Transmitter: 2 x Combo XLR-1/4 inputs
    • Receiver: 1 x XLR output (per receiver)
  UPC: 816311011068
• Alto Professional Stealth Wireless Expander Pack (Pack of 2 Receivers)
  • Make ANY loudspeaker wireless -- Alto Professional Stealth Wireless Kit
  The 2-pack of Alto Stealth Wireless Expander Pack are designed for use with the Stealth Wireless system, which provides a stereo wireless connection between your mixer and your speakers. These single-channel expanders replace hundreds of feet of cable, allowing you to add additional speakers for a larger array or provide a multi-room setup. The Alto Stealth Wireless Expander Pack includes two power supplies, two XLR cables, two M10 screws, two machine screws, and hook-and-loop strips.
  • • Wireless audio connectivity to active loudspeakers
    • Replaces up to 200' of console-to-system cabling
    • No compromise in audio quality
    • Reliable UHF band; 16 selectable channels
    • Adjustable squelch eliminates interference
    • Two single-channel receivers
  UPC: 816311011075

• Stealth Wireless Stereo System for Active Loudspeakers
• Stealth Wireless Transmitter
• 2 x Stealth Wireless Receivers
• 3 x Power Supplies
• 2 x XLR Cables
• 2 x M10 Screws
• 2 x Machine Screws
• 2 x Hook-and-Loop Strips
• Limited 1-Year Warranty

• Stealth Wireless Expander Pack (Pack of 2 Receivers)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Alto Professional Stealth Wireless Stereo System for Active Loudspeakers

  Type	Dual-Channel Transmitter
  RF Frequency Range	540 - 570 MHz
  Oscillation Mode	PLL
  Channels	16 Preset Channels (Stereo)
  Frequency Response	50 Hz to 17 kHz (3 dB)
  Bandwidth	24 or 30 MHz
  Frequency Stability	0.005%
  Frequency Deviation	20 kHz
  LED Indicators	Power On/Off, Sig/Clip
  Power	External Adapter: 12 VDC / 300 mA
  Output Power	<10 mW
  Controls	Power Switch; Channel Select; Mono/Stereo Switch
  Dimensions	6.3 x 5.0 x 4.0" / 160.5 x 127.0 x 101.6 mm (with Antennas)
  Weight	10.2 oz / 289.2 g

  Type	Single-Channel Receiver
  Channels	16 Preset Channels
  RF Frequency Range	540 - 570 MHz
  Signal to Noise Ratio	>100 dB/A
  RF Sensitivity	-100 dBm
  Image Rejection	>70 dB
  Total Harmonic Distortion	<0.5% @ 1 kHz
  LED Indicator	Power On, RF/AF LED Indicator
  AF Output	Impedance: 660 Ohms Balanced
  Squelch	3-Step and Pilot Tone
  Operating Voltage	12 VDC, 300 mA
  Dimensions	4.6 x 2.7 x 1.2" / 116.3 x 69.6 x 31.5 mm (with Antenna)
  Weight	4.2 oz / 117.7 g

  Box Dimensions (LxWxH)	13.6 x 13.4 x 2.3"

• Alto Professional Stealth Wireless Expander Pack (Pack of 2 Receivers)

  Type	Single-channel receiver
  Preset	Channels: 16
  RF Frequency Range	540 to 570 MHz
  S/N Ratio	>100 dB/A
  RF Sensitivity	-100 dBm
  Image Rejection	>70 dB
  THD	<0.5% @ 1 kHz
  LED Indicator	Power On, RF/AF LED indicator
  Output Impedance	AF: 660 Ohms balanced
  Squelch	3-step & pilot tone
  Voltage	Operation: 12 VDC, 300 mA
  Dimensions	4.6 x 2.7 x 1.2" / 116.3 x 69.6 x 31.5 mm with antenna
  Weight	4.2 oz / 117.7 g each

  Box Dimensions (LxWxH)	11.9 x 11.0 x 2.6"
