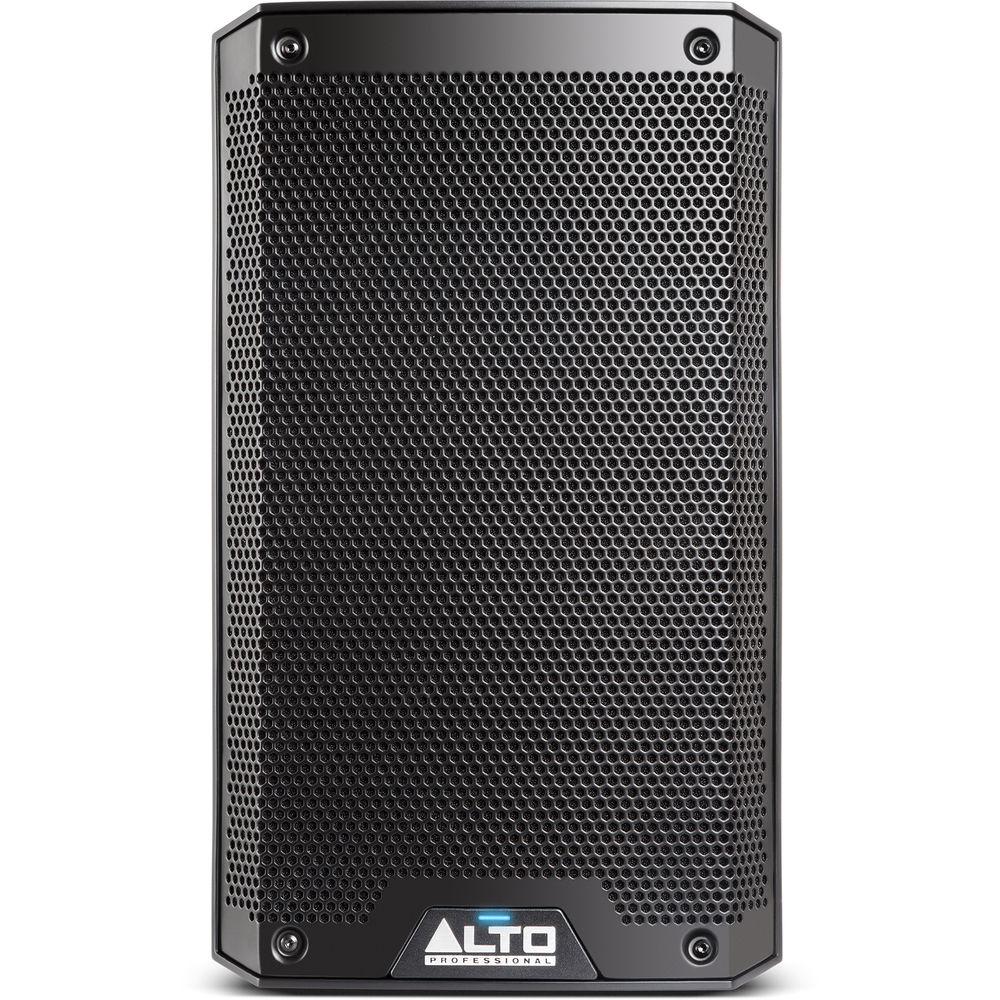

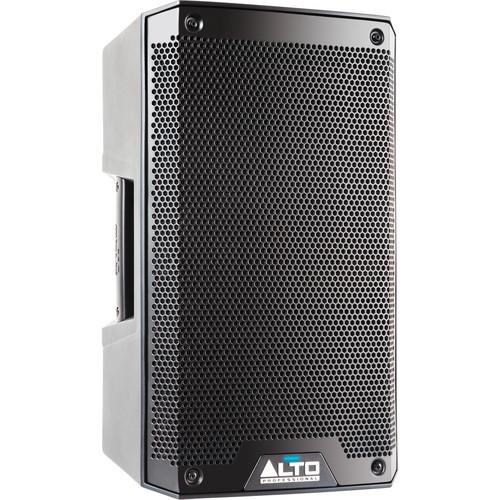

User Manual for Alto Professional Truesonic TS308 8" 2-Way 2000W Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Alto Professional Truesonic TS308 8" 2-Way
- Product category: PA Speakers Alto Professional
- Brand: Alto Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alto Professional PA Speakers
 |
User manual for the Alto Professional Truesonic TS308 8" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alto Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!
|

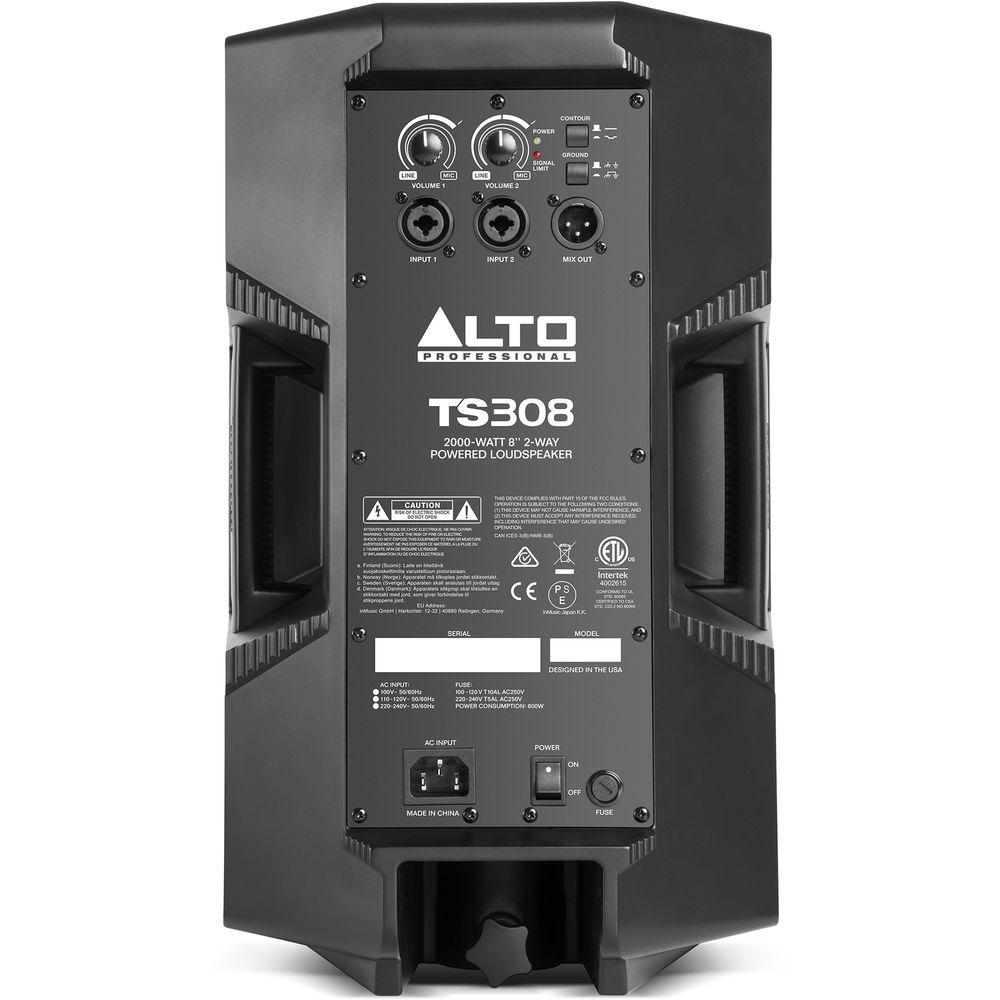

Product description The Alto Professional Truesonic TS308 is an 8" 2-way 2000W powered loudspeaker offering full coverage and high output for musicians, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 2000 watts of Class-D amplification driving the 8" woofer and 1.4" high-frequency compression driver for a frequency response of 62 Hz to 20 kHz and a maximum SPL of 129 dB. The lightweight trapezoidal injection-molded polypropylene enclosure can be placed atop a standard speaker pole, wall- or ceiling-mounted via an optional bracket, or hung from integral M6 suspension points. Additionally, the cabinet angles accommodate floor positioning for wedge configurations. Integrated carry handles enable easy transport and positioning. The XLR-1/4" TRS combo inputs accept sources such as mixer outputs, media players, instruments, or dynamic microphones. Level and tone adjustments are possible via the volume knobs and contour switch. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TS308 is designed and tuned in the USA, and includes an IEC power cable. - Bi-amplified design with an 8" long-excursion woofer and a 1.4" neodymium high-frequency compression driver
- Class-D amplification delivers 2000W peak (1000W continuous)
- Horn-loaded HF driver incorporates a precision waveguide and an enhanced heat sink
- Contour switch adds a 3 dB boost in the low and high frequencies
- Rear-panel volume controls with detents
- Built-in electronic clip, thermal, and transducer overdrive protection
- Ground-lift switch impedes hum from ground loops
- Lightweight and durable enclosure supports configuration as a main speaker or floor wedge
- Pole mount via 36mm socket, wall or ceiling mount via TSB810 bracket (available separately), or hang via integral M6 suspension points
- Metal grille protects speaker components against punctures and dents
- Designed and tuned in the USA
UPC: 816311011747 In the Box Alto Professional Truesonic TS308 8" 2-Way 2000W Powered Loudspeaker IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional Truesonic TS308 8" 2-Way 2000W Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TS308XUS Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 2000 W Peak
1000 W RMS | | Amplifier Power Rating | LF:
1300 W Peak
650 W RMS
HF:
700 W Peak
350 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35 mm Compression Driver | | LF Driver | 1 x 8" / 203 mm Woofer | | LF Voice Coil | 2.5" / 64 mm | | Magnet | HF:
Neodymium | | | | Frequency Range | 52 Hz to 22 kHz -10 dB | | Frequency Response | 62 Hz to 20 kHz +3 dB | | Maximum SPL | 129 dB (Peak)
126 dB (Continuous) | | Coverage Angle | 90° H x 60° V (Horn) | | Protections | Thermal, Transducer Overdrive | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x XLR 3-Pin Male Balanced Output | | | | Crossover | 2.5 kHz | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 VAC, 50 / 60 Hz
110 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | | | Mounting | 1 x 1.4" / 36 mm Pole Socket
2 x Bracket Point | | Construction Material | Polypropylene | | Dimensions | 17.1 x 10.1 x 9.6" / 434.0 x 256.0 x 245.0 mm | | Weight | 20.2 lb / 9.2 kg | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 13.0" |
