Product description - https://www.youtube.com/watch?v=R_b7Z21_pgY

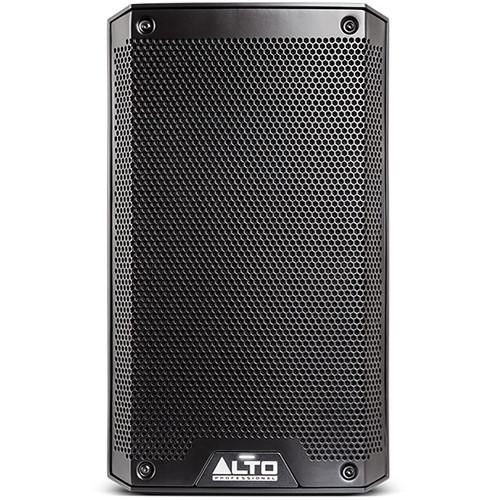

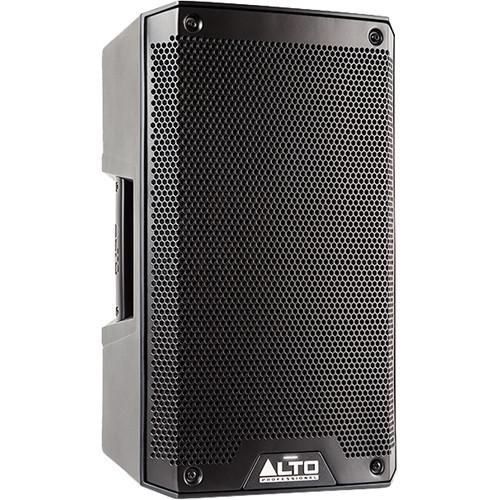

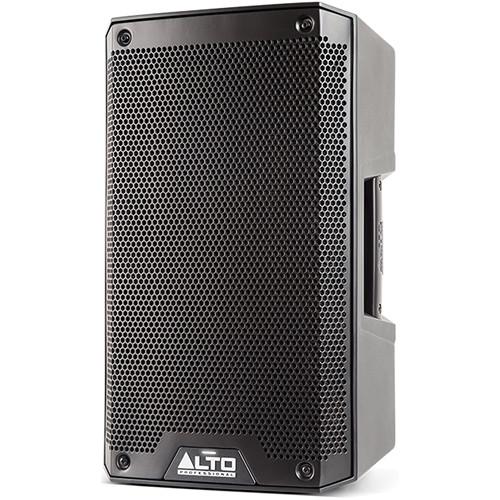

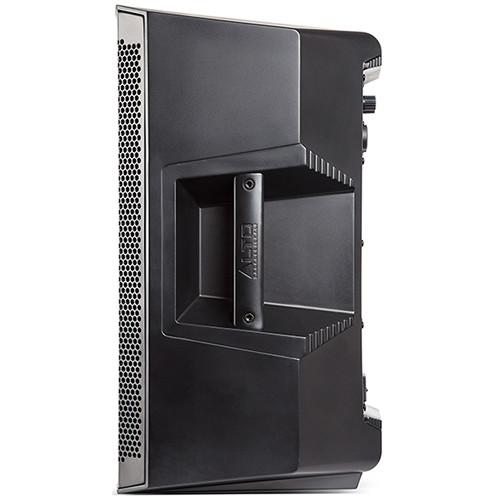

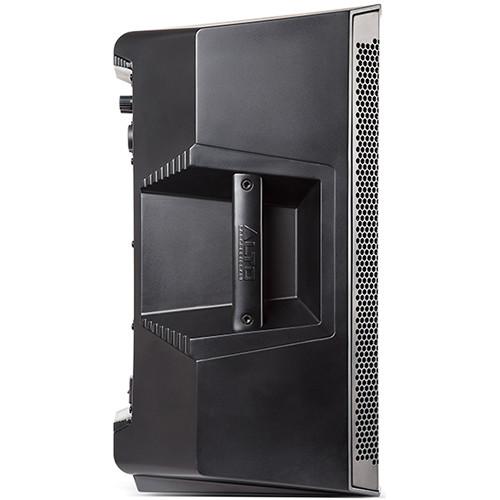

The black Alto TS208 Truesonic 2 is an 8" 2-way powered loudspeaker designed to provide full-range sound reinforcement and convenient I/O for musicians, performers, and DJs in live stage, theater, karaoke, and club setups. Quiet, passively-cooled Class-D amplification drives the 8" woofer and 1" tweeter to produce 1100W of peak power output with a frequency response of 62 Hz to 20 kHz.The two combo jack inputs allow for XLR or 1/4" connections for plugging dynamic mics and instruments. A balanced mix output is available for linking the unit to other active speakers. The built-in mixer includes level controls and a Contour switch to emphasize low and high frequencies when playing music at low levels. LED indicators allow easy identification of settings, power, signal, and limit status. The clip, thermal, and transducer overdrive protection keep the speaker safe.The lightweight trapezoidal cabinet features two integrated handles for easy lifting and transport. The TS208 can be quickly mounted on a stand or pole, or for permanent installations, suspended via its M6 rigging points. With its angled rear panel, it can also be used on stage as a wedge monitor. - Key Features
-
- 550W continuous, 1100W peak Class-D power
- Bi-amplified design with precision active crossover and EQ

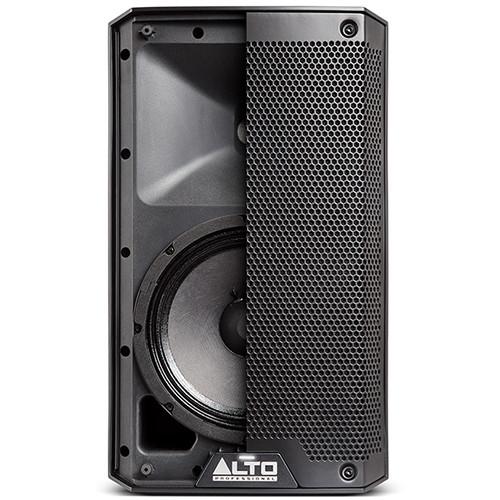

- 8" LF driver, 2" high-temperature voice coil
- 1" neodymium HF driver with precision waveguide

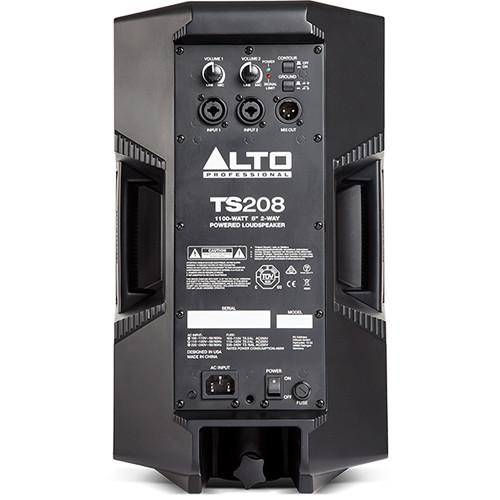

- Integrated 2-channel mixer with dual XLR-1/4" combo mic/line inputs and independent level controls
- Custom-engineered high-efficiency Class-D amplifiers with passive cooling design—no fan means the speaker runs cleaner, quieter, and has greater long-term reliability
- XLR mix output to link to other active speakers
- Ground-lift switch
- Contour switch for increased EQ control
- Electronic clip, thermal, and transducer overdrive protection
- Compact, lightweight, trapezoidal cabinet design for easy transport and installation
- Angled rear panel for wedge monitor applications
- Stand- and pole-mountable with integral M6 suspension points
- Designed and tuned in the USA
UPC: 816311011594 In the Box Alto Professional TS208 Truesonic 2 8" 1100W Two-Way Powered Loudspeaker (Black) Power Cable Limited 1-Year Warranty User Manual PDF 6.1mbcaszwbytdebs Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TS208 Truesonic 2 8" 1100W Two-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TS208X Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1100 W Peak
550 W RMS | | Amplifier Power Rating | LF:
700 W Peak
350 W RMS
HF:
400 W Peak
200 W RMS | | | | HF Driver | 1 x 1" / 25 mm Compression Driver with 1" / 25 mm Throat | | LF Driver | 1 x 8" / 203 mm Woofer | | LF Voice Coil | 2" / 51 mm | | Magnet | HF:
Neodymium | | | | Frequency Range | 52 Hz to 22 kHz -10 dB | | Frequency Response | 62 Hz to 20 kHz ±3 dB | | Maximum SPL | 123 dB SPL (Peak)
120 dB SPL (Continuous) | | Coverage Angle | 90° H x 60° V | | Protections | Thermal, Transducer Overdrive | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x XLR Mix Output | | | | Crossover | 2.5 kHz | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V) | | | | Construction Material | Perforated Metal Grille, Polypropylene | | Dimensions | 10.3 x 9.6 x 17.2" / 261.0 x 244.0 x 437.0 mm | | Weight | 17.6 lb / 7.9 kg | | | | Package Weight | 21.55 lb | | Box Dimensions (LxWxH) | 20.5 x 13.75 x 13.0" |
