User Manual for Alto Professional TS212S 12" 1250W Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the Alto Professional TS212S 12" 1250W Powered
- Product category: PA Speakers Alto Professional
- Brand: Alto Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alto Professional PA Speakers
 |
User manual for the Alto Professional TS212S 12" 1250W Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alto Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!
|

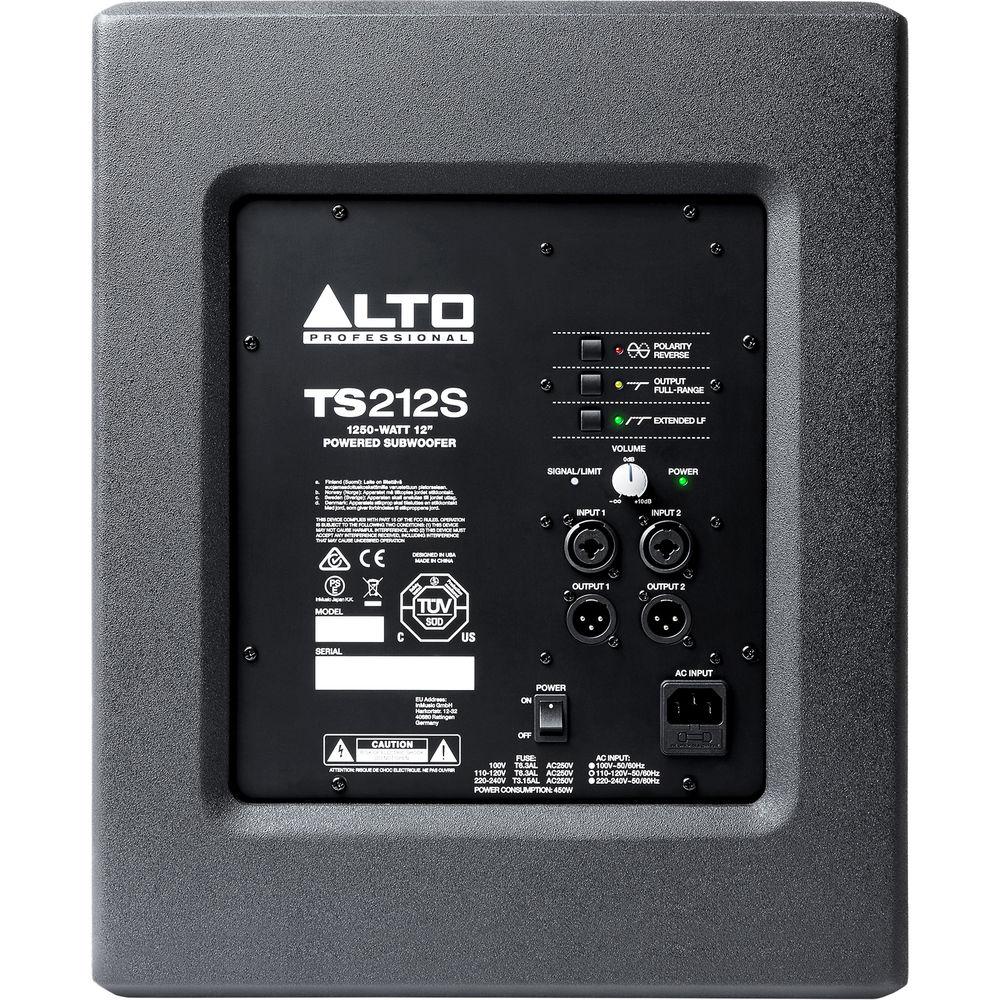

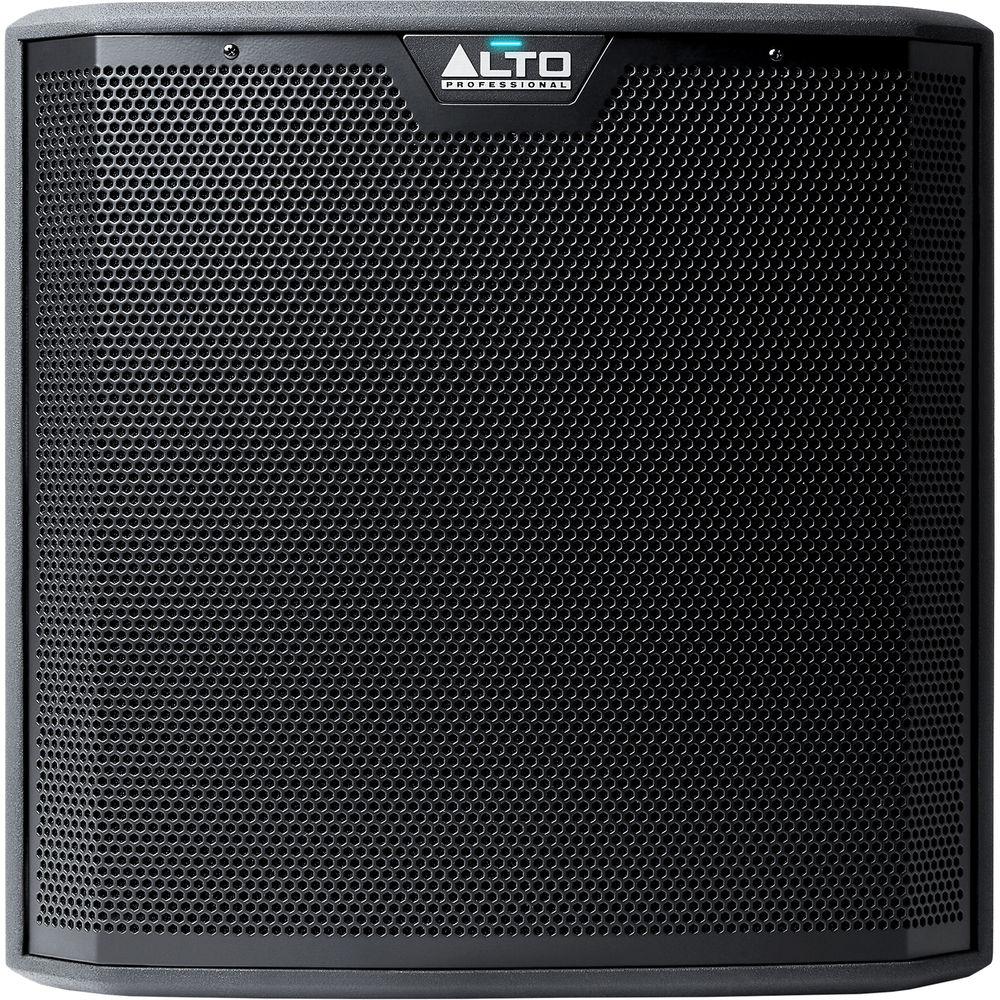

Product description The Alto TS212S is a 12" powered subwoofer designed to provide adjustable low-frequency reinforcement for sound engineers and DJs in live stage, theater, and club setups. Class-D amplification drives the 12" high-excursion woofer to produce 1250W of peak power output and a frequency response of 42 to 100 Hz.The combo jack inputs allow for XLR or 1/4” connections. Balanced analog outputs are available on XLR 3-pin jacks. The built-in EQ controls include a selectable high-pass filter and a switch for extended low-frequencies, giving you the ability to tune the subwoofer to suit your preferences. LED indicators allow easy identification of the selected settings and power, signal, and limit status. The clip, thermal, and transducer overdrive protection keep the subwoofer safe.The internally-braced plywood cabinet features a front port and a 35mm mounting socket. Integrated and recessed carry handles simply transport between gigs. The TS212S ships with an IEC power cable. -
- 1250W of peak power output
- Custom-engineered Class-D amplifier with passive cooling design (no fan) 12" high-excursion woofer
- Two XLR-1/4" combo inputs
- Two balanced XLR line outputs
- Polarity reverse, full-range output, and extended LF controls
- Electronic clip, thermal, and transducer overdrive protection
- Rugged, internally-braced, front-ported plywood cabinet
- Integrated 35mm speaker pole socket
UPC: 816311011464 In the Box Alto Professional TS212S 12" 1250W Powered Subwoofer IEC Power Cable Limited 1-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TS212S 12" 1250W Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TS212S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1250 W Peak
625 W RMS | | | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 3" / 76 mm | | | | Frequency Response | 42 Hz to 100 Hz -10 dB | | Maximum SPL | 127 dB | | Input Sensitivity | Line Input:
+4 dBu (Nominal) | | Protections | Thermal, Transducer Overdrive | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
2 x XLR Output | | | | Dynamic Processing | Peak Limiter | | Phase Adjustment | 0 / 180° | | | | AC Input Power | 110 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V) | | AC Power Connector | 1 x IEC | | Power Consumption | 450 W | | | | Mounting | 1 x 1.3" / 35 mm Pole Socket (Top) | | Construction Material | Plywood | | Dimensions | 18.0 x 17.8 x 20.0" / 456.0 x 451.0 x 508.0 mm | | Weight | 45 lb / 20 kg | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 23.25 x 21.5 x 21.0" |
