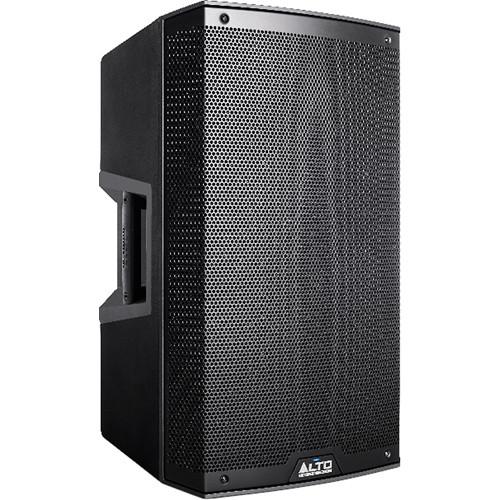

User Manual for Alto Professional TS215 TRUESONIC 1100W 15" 2-Way Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Alto Professional TS215 TRUESONIC 1100W 15"
- Product category: PA Speakers Alto Professional
- Brand: Alto Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alto Professional PA Speakers
 |
User manual for the Alto Professional TS215 TRUESONIC 1100W 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alto Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!
|
Product description - Introducing the TS2 Series loudspeakers from Alto Professional
The black TS215 TRUESONIC 1100W 15" 2-Way Powered Loudspeaker from Alto Professional provides transparent sound for both musicians and live sound engineers. This TS215 enlists its pure signal path, efficient driver design, and durable, lightweight polypropylene enclosure to deliver precise reproduction of deep lows, crystal-clear high end and smooth mid-range.The speaker is designed for versatility and longevity. Its trapezoidal design decreases the resonance of the standing wave in the cabinet, producing a truer and more accurate sound reproduction. The TS215 features a 15" woofer and a 1" high-frequency driver with a precision waveguide that combine to offer a frequency response of 50 Hz to 20 kHz with a peak SPL of 130 dB. Both drivers are designed to be efficient, translating into more power from the amplifier, actually working to generate sound rather than heat. This durable, lightweight enclosure is stand-mountable for weekend gigs and flyable for more permanent installations. The TS215 ships with a standard IEC power cord. -
- 550W continuous, 1100W peak Class-D power
- 15" LF driver, 2.5" high-temperature voice coil
- 1" neodymium driver with precision waveguide
- Bi-amplified design with precision active crossover and EQ
- Integrated 2-channel mixer with dual XLR-1/4" combo mic/line inputs and independent level controls
- XLR mix output
- Ground-lift switch
- Contour switch for increased EQ control
- Electronic clip, thermal and transducer overdrive protection
- Compact, lightweight, trapezoidal cabinet design for easy transport and installation
- Angled rear panel for wedge monitor applications
- Stand- and pole-mountable with integral M10 suspension points
UPC: 816311011297 In the Box Alto Professional TS215 TRUESONIC 1100W 15" 2-Way Powered Loudspeaker (Black) IEC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TS215 TRUESONIC 1100W 15" 2-Way Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TS215 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1100 W Peak
550 W RMS | | Amplifier Power Rating | LF:
700 W Peak
350 W RMS
HF:
400 W Peak
200 W RMS | | | | HF Driver | 1 x 1" / 2.5 cm Tweeter | | LF Driver | 1 x 15" / 38 cm Woofer | | LF Voice Coil | 2.5" / 6.4 cm | | Magnet | HF:
Neodymium | | | | Frequency Range | 43 Hz to 22 kHz -10 dB | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Maximum SPL | 130 dB SPL (Peak)
127 dB SPL (Continuous) | | Coverage Angle | 90° H x 60° V | | Protections | Thermal, Transducer Overdrive | | | | Audio I/O | 2 x Combo XLR / 1/4" Line/Mic Input
1 x XLR Mix Output | | | | Crossover | 2 kHz | | Dynamic Processing | Peak Limiter | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz | | | | Construction Material | Perforated Metal Grille, Polypropylene | | Dimensions | 26.0 x 16.0 x 14.0" / 65.0 x 40.0 x 36.0 cm | | Weight | 32.7 lb / 14.9 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 29.3 x 20.0 x 19.5" |
