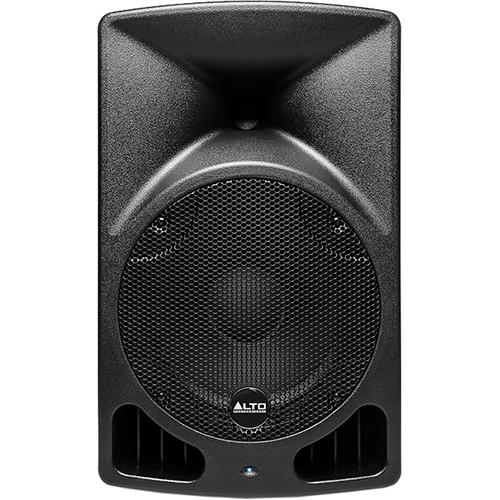

User Manual for Alto Professional TX10 280-Watt 10" 2-Way Active Loudspeaker Click to enlarge the picture
Contents of the user manual for the Alto Professional TX10 280-Watt 10" 2-Way
- Product category: PA Speakers Alto Professional
- Brand: Alto Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alto Professional PA Speakers
 |
User manual for the Alto Professional TX10 280-Watt 10" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alto Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!
|
Product description The Alto TX10 280-Watt 10" 2-Way Active Loudspeaker is designed for spoken word and music live sound reinforcement applications, such as for mobile DJ PA systems, gymnasiums, houses of worship, bars, restaurants, and small clubs among others. The speaker utilizes a a bi-amplified ported design with a class D amplifier that delivers 280 Watts peak (140 Watts continuous) into a 10" low-frequency woofer with a 2" voice coil electronically crossed over at 2.5 kHz to a 1" titanium diaphragm neodymium high frequency compression driver with a 1" voice coil. This combination delivers a frequency response of 75 to 20,000 Hz and a maximum SPL of 116 dB at 1 m.

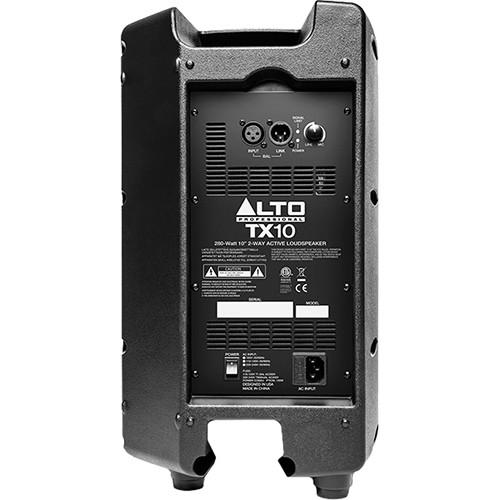

The speaker provides 90° horizontal by 45° vertical coverage with thermal, overload, analog limiting, and power compression protection circuitry with LED indicators for power and clipping. Inputs are provided by balanced XLR combo mic/line inputs. Additional speakers can be connected to the signal using the rear panel output and onboard contour controls allow you to adjust the response of the speaker to your room.
For portability, the speaker box is made of lightweight injection-molded polypropylene with built-in handles, metal grills, and rubber feet. It's trapezoidal shape allows it to be used as either a floor monitor or a main. An integrated 36mm pole socket allows you to mount the speaker on a tripod stand or atop a subwoofer with a speaker pole. The speaker is designed in the USA. UPC: 816311011112 In the Box Alto Professional TX10 280-Watt 10" 2-Way Active Loudspeaker Power Cord Limited 1-Year Warranty User Manual PDF 12.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TX10 280-Watt 10" 2-Way Active Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TX10 Specs | Connector | XLR/TRS combo Mic/Line input
XLR output | | System | 2-way active ported speaker | | LF Driver Size | 10" woofer, 2" voice coil | | HF Driver Size | 1" titanium diaphragm, 1" voice coil | | Amplifier | Class DSMPS, 600 watts peak | | Coverage | 90°H x 45°V | | Frequency Response | At -3 dB: 75 to 20,000 Hz | | Crossover Frequency | 2.5 kHz | | Max SPL Level | 116 dB at 1 m | | External Control | Volume control
Contour
Power ON with green LED
Clip Limiter with red LED | | Protection Circuits | Thermal
Overload
Analog Limiter
Compressor | | Power Supply | 120 to 240 V at 50/60 Hz | | Enclosure | Injection-molded polypropylene enclosure, multi-angle for main or monitor applications with metal grille, rubber, feet, and two handles | | Mounting | 36 mm standard pole mount | | Dimensions (H x W x D) | 18.1 x 11.2 x 10.4" (46.0 x 28.5 x 26.5 cm) | | Weight | 15.26 lb (6.92 kg) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 20.25 x 14.0 x 13.48" |
