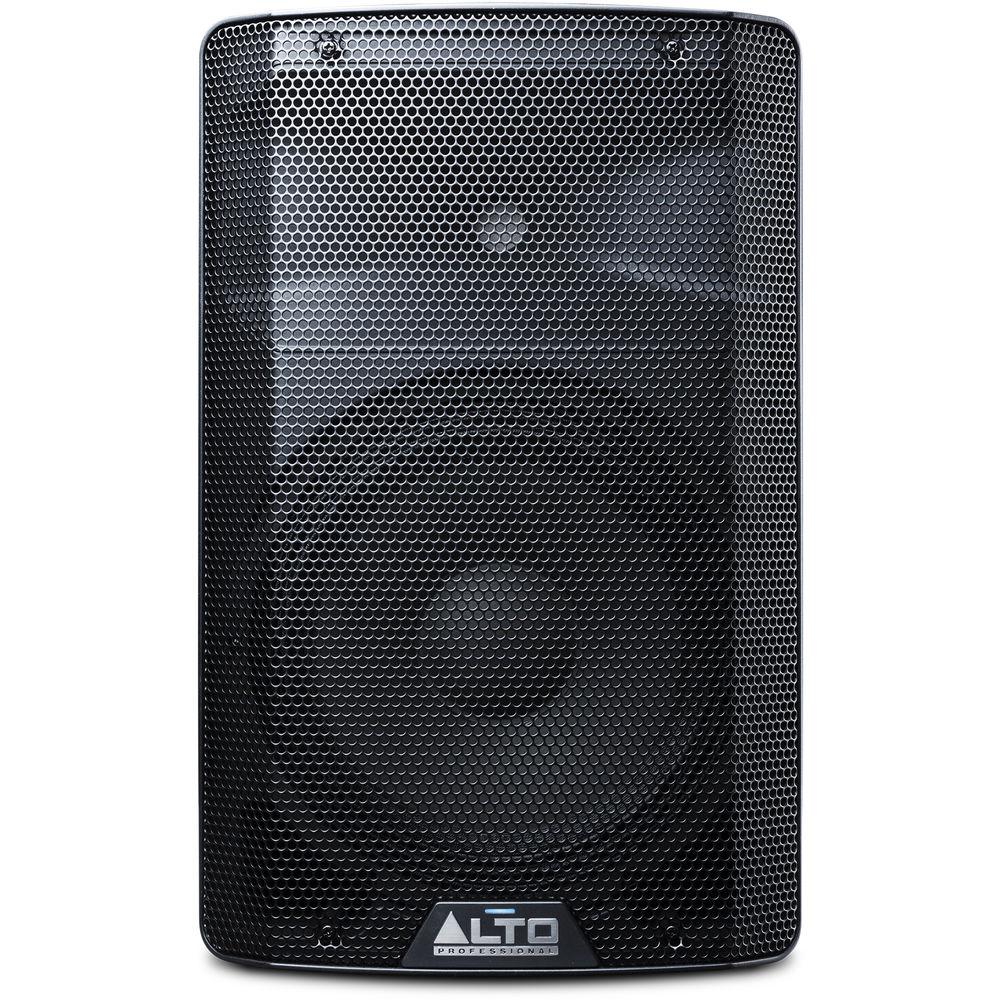

User Manual for Alto Professional TX210 10" 2-Way 300W Powered Loudspeaker Click to enlarge the picture
Contents of the user manual for the Alto Professional TX210 10" 2-Way 300W
- Product category: PA Speakers Alto Professional
- Brand: Alto Professional
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Alto Professional PA Speakers
 |
User manual for the Alto Professional TX210 10" 2-Way 300W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Alto Professional product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!
|
Product description The Alto Professional TX210 is a 10" 2-way 300W powered loudspeaker offering full coverage and high output for bands, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 300 watts of Class-D amplification driving the 10" woofer and 1" high-frequency compression driver for a frequency response of 75 Hz to 20 kHz. The lightweight injection-molded polypropylene enclosure provides a socket for mounting on a standard speaker pole, and is angled to accommodate wedge configurations. A top-panel carry handle enables easy transport. The XLR 3-pin input accepts balanced sources such as a mixer output and includes a volume control. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TX210 is designed and tuned in the USA, and includes an IEC power cable. - Bi-amplified design with a 10" long-excursion woofer and a 1" titanium-diaphragm, high-frequency compression driver
- Class-D amplification delivers 300W peak (150W continuous)
- Built-in analog overload limiter/compressor and thermal protection
- Multi-angle enclosure with rubber feet supports configuration as a main speaker or floor wedge
- Metal grille protects speaker components against punctures and dents
- Designed and tuned in the USA
UPC: 816311011792 In the Box Alto Professional TX210 10" 2-Way 300W Powered Loudspeaker IEC Power Cable Limited 1-Year Warranty User Manual PDF 5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TX210 10" 2-Way 300W Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TX210XUS Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 300 W Peak
150 W RMS | | Amplifier Power Rating | LF:
200 W Peak
100 W RMS
HF:
100 W Peak
50 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25.4 mm Titanium Compression Driver | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 1.5" / 38.1 mm | | | | Frequency Response | 75 Hz to 20 kHz -3 dB | | Maximum SPL | 116 dB | | Coverage Angle | 90° H x 60° V (Horn) | | Protections | Thermal | | | | Audio I/O | 1 x XLR 3-Pin Female Balanced Input
1 x XLR 3-Pin Male Balanced Output | | | | AC Input Power | 100 VAC, 50 / 60 Hz (T 1.6 A L 250 V)
110 to 120 VAC, 50 / 60 Hz (T 1.6 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 800 mA L 250 V) | | Power Consumption | 150 W | | | | Mounting | 1 x Pole Socket | | Construction Material | Polypropylene | | Dimensions | 18.2 x 11.3 x 10.9" / 462.0 x 287.0 x 277.0 mm | | Weight | 16.7 lb / 7.6 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 20.5 x 14.0 x 13.5" |
