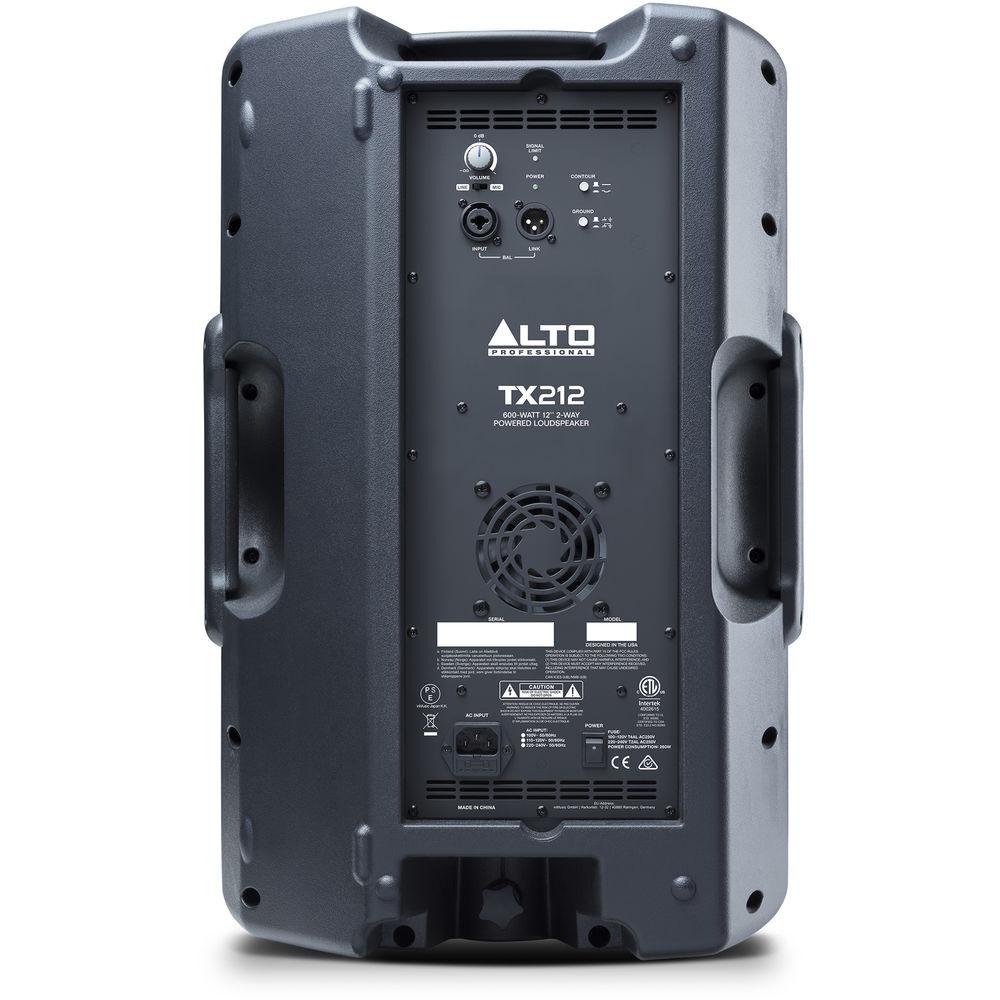

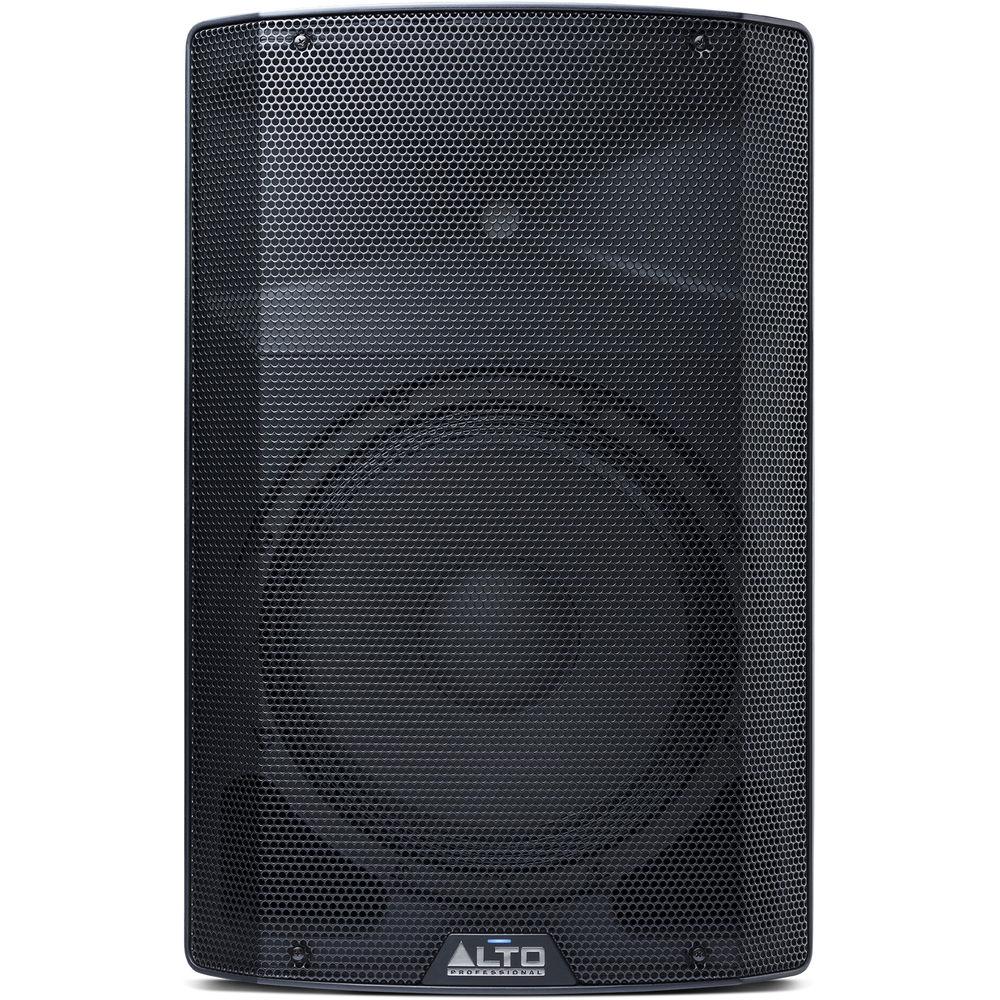

Product description The Alto Professional TX212 is a 12" 2-way 600W powered loudspeaker offering full coverage and high output for bands, DJs, and audio engineers in concert venues, clubs, and live stage applications. It features 600 watts of Class-D amplification driving the 12" woofer and 1" high-frequency compression driver for a frequency response of 70 Hz to 20 kHz. The lightweight injection-molded polypropylene enclosure provides a socket for mounting on a standard speaker pole, and is angled to accommodate wedge configurations. Top- and side-panel carry handles enable easy transport and positioning. The XLR-1/4" input accepts sources such as a mixer output or dynamic microphone. Level and tone adjustments are possible via the volume knob and contour switch. An XLR link output allows simple daisy-chaining to additional powered loudspeakers. LEDs are present for power and clip indication. The TX212 is designed and tuned in the USA, and includes an IEC power cable. - Bi-amplified design with a 12" long-excursion woofer and a 1" neodymium high-frequency compression driver
- Class-D amplification delivers 600W peak (300W continuous)
- Contour switch adds a 3 dB boost in the low and high frequencies
- Rear-panel volume control
- Built-in analog overload limiter/compressor and thermal protection
- Ground-lift switch impedes hum from ground loops
- Lightweight and durable multi-angle enclosure with rubber feet supports configuration as a main speaker or floor wedge
- Metal grille protects speaker components against punctures and dents
- Designed and tuned in the USA
UPC: 816311011808 In the Box Alto Professional TX212 12" 2-Way 600W Powered Loudspeaker IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional TX212 12" 2-Way 600W Powered Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional TX212XUS Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 600 W Peak
300 W RMS | | Amplifier Power Rating | LF:
400 W Peak
200 W RMS
HF:
200 W Peak
100 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 25.4 mm Compression Driver | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | 2" / 50.8 mm | | Magnet | HF:
Neodymium | | | | Frequency Response | 70 Hz to 20 kHz -3 dB | | Maximum SPL | 118 dB | | Coverage Angle | 90° H x 60° V (Horn) | | Protections | Thermal | | | | Audio I/O | 1 x Combo XLR / 1/4" Input
1 x XLR 3-Pin Male Balanced Output | | | | AC Input Power | 100 VAC, 50 / 60 Hz (T 4 A L 250 V)
110 to 120 VAC, 50 / 60 Hz (T 4 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 2 A L 250 V) | | Power Consumption | 260 W | | | | Mounting | 1 x Pole Socket | | Construction Material | Polypropylene | | Dimensions | 23.7 x 15.0 x 13.7" / 602.0 x 381.0 x 348.0 mm | | Weight | 31.3 lb / 14.2 kg | | | | Package Weight | 34.88 lb | | Box Dimensions (LxWxH) | 27.0 x 17.6 x 16.2" |
