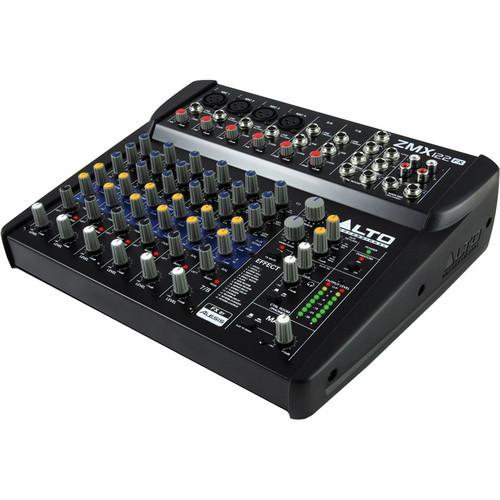

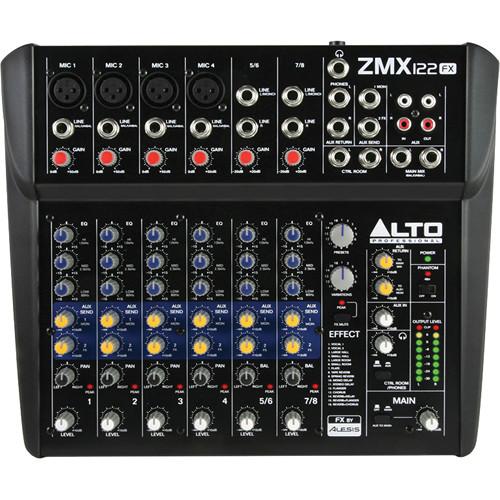

Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer

Search your instruction manual in PDF to download

User Manual for Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects

Click to enlarge the picture
Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects Contents of the user manual for the Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer
  • Product category: Analog Recording Mixers Alto Professional
  • Brand: Alto Professional
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Alto Professional Analog Recording Mixers

Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects
User manual for the Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Alto Professional product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Alto Professional user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Alto Professional product will considerably shorten its lifespan!



Product description

The ZEPHYR ZMX122FX from Alto Professional is a compact, 8-channel audio mixer with 256 built-in digital effects presets, featuring inputs for both microphones and line-level signals such as drum machines and keyboards. Four of the channels feature balanced 1/4" TRS inputs, as well as gold-plated XLR jacks and microphone preamps, and two balanced 1/4" TRS stereo line-level channels are also provided. All six of these channels feature 3-band EQ, Pan, and Level knobs, as well as two Aux Sends. One of the Aux Sends is labeled for external monitors, and the other is dedicated to sending signals to external effects. The two Aux Return inputs, combined with the stereo RCA Aux inputs, make for a total of 12 input channels. The ZMX122FX also features two bus outputs: the Main Outputs and the Control Room outputs. Stereo RCA outputs are also provided.

The effects that are built into the ZEPHYR ZMX112FX are the product of a partnership with Alesis. They feature 16 different effects, and 16 variations of those effects, making a total of 256 presets to choose from. A 1/4" input on the rear of the mixer enables you to attach a separately available footswitch, so you can disable the effects with a tap of the foot. The effects can also be muted with a button on the face of the mixer. All of the knobs are color coded, to make it easier to operate the mixer in dimly lit environments.
  • 12 total inputs including XLR jacks with phantom power on channels one through four
  • Four mic input channels with gold-plated XLR and balanced line inputs
  • Two stereo input channels with balanced TRS jacks
  • Three-band EQ on each channel
  • On-board digital effects processor with effects like Reverb, Delay, Flanger, and Chorus.
  • Footswitch input for effects bypass (footswitch not included)
  • Two aux sends per channel for external effects and monitoring
  • Two bus design with Main and Control Room 1/4" stereo outputs
UPC: 816311010177 In the Box Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with Effects can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Alto Professional ZEPHYR ZMX122FX 8-Channel Mixer with EffectsDownload PDF User Manual - https://www.search-manual.com/ upload/ alto-professional-zephyr-zmx122fx-8-channel-mixer-with-effects-132997-user-manual.pdf
    (PDF file, 4.22 MB)


    Technical parameters

    Alto Professional ZMX122FX Specs

    Total # Of Inputs 12
    Mic/Line Inputs 4x Electronically balanced, discrete XLR inputs
    4x Electronically balanced 1/4" TRS inputs
    Gain Range Mic inputs (Channels 1-4): 0 to 50 dB
    Line inputs (Channels 1-4): 15 to 35 dBu
    Line inputs (Channels 5-8): -20 to +20 dBu, 60 dB Ch. Line to Main Mix out
    Maximum Voltage Gain Mic inputs / Line inputs (Channels 1-4):
    70 dB (mic/line input to main mix output)
    80 dB (mic/line input to control room / phones output)
    60 dB (mic/line input to aux send)

    Line inputs (Channels 5-8):
    20 dB (FX return to main mix output)
    20 dB (aux input to main mix output)
    Stereo Line Inputs 2x 1/4" TRS stereo inputs
    AUX Sends 1x Monitor send
    1x FX send
    AUX Returns 2x 1/4" Aux return

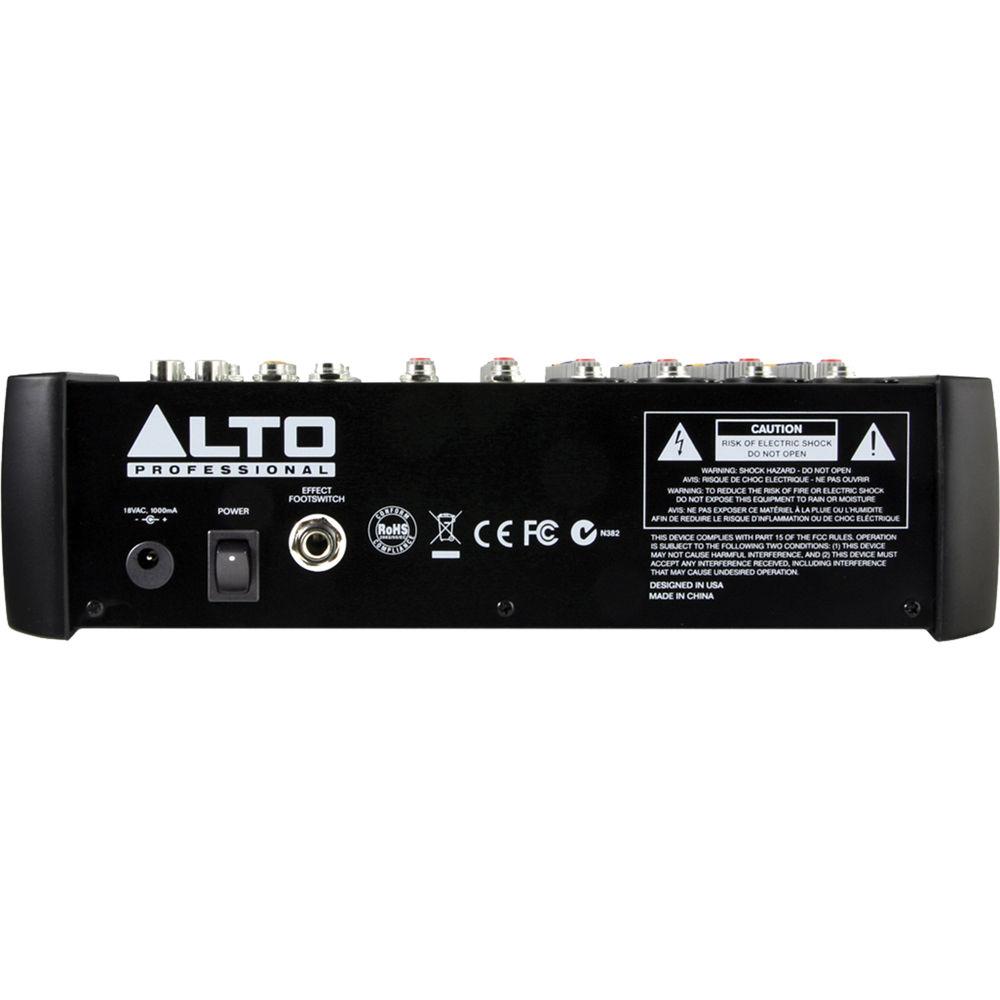

    Footswitch Yes, 1/4" input on rear panel (latching-style footswitch not included)
    Inserts No
    BUS (Group) Outputs Main and Control Room
    2 Trk Master I/O 2x 1/4" TRS stereo outputs
    ALT I/O 2x 1/4" TRS stereo Control Room outputs
    2x RCA stereo outputs
    2x RAC stereo inputs
    Monitor Outputs 1x 1/4" stereo headphone output
    2x 1/4" TRS stereo Control Room outputs
    Equalization 3-Band EQ on Channels 1-8
    High: ±15 dB @ 12 kHz
    Mid: ±15 dB @ 2.5 kHz
    Low: ±15 dB @ 80 Hz
    Channel Level Control Knobs
    Trim/Gain Control Rotary Pot
    Phantom Power +48 V Globally Switched
    Impedance Mic inputs: 3.9 kΩ
    All other inputs: > 10 kΩ
    Aux output: 1 kΩ
    All other outputs: 120 Ω
    Metering 6x Peak LEDs
    8-Segment LED stereo master output meter
    Effects Reverbs: Hall, Room, Vocal, Plate
    Delays: Mono, Stereo (max delay time: 650 ms)
    Modulations: Chorus, Flanger, Reverb
    Combinations: Reverb + Delay, Reverb + Chorus, Reverb + Flanger
    Presets: 256
    Controls: 16 x 16-position preset selector, clip LED, mute switch, foot switch
    Converters A/D and D/A converters: 24-bit
    Internal DSP Resolution DSP Resolution: 24-bit
    Crosstalk Adjacent inputs: < -80 dB @ 1 kHz
    Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-4, panned hard left or right)
    Output Level 0 dBu Unbalanced, 1/4" Jacks
    Max out +22 dBu Unbalanced, 1/4" jacks
    Noise Bus noise: < -90 dB @ 20 Hz to 22 kHz (Channel and Main Mix levels at 0 dB, others at minimum, DSP muted)
    Frequency Response 20 Hz to 22 kHz, +/-1 dB
    Dynamic Range Not Specified By Manufacturer
    Signal-to-Noise Ratio ≧110 dBu
    THD & Noise ≦0.005% at +4 dBu, 1 kHz
    Power Supply 18 V, 1500 mA
    Power Consumption 27W
    Dimensions (W x L x H) 10.08 x 9.84 x 2.8" (256 x 250 x 72 mm)
    Weight 5.07 lb (2.3 kg)
    Package Weight 5.8 lb
    Box Dimensions (LxWxH) 15.4 x 12.7 x 5.8"

    Rating

    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5
