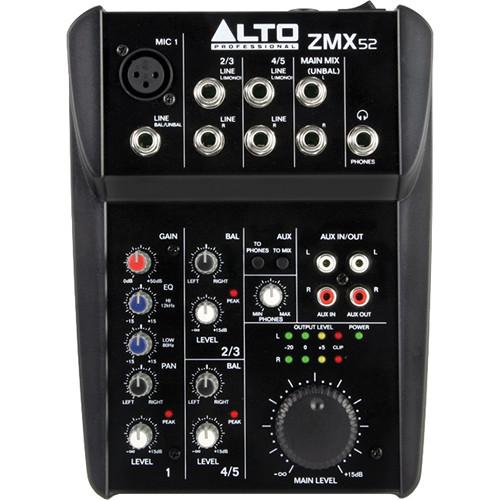

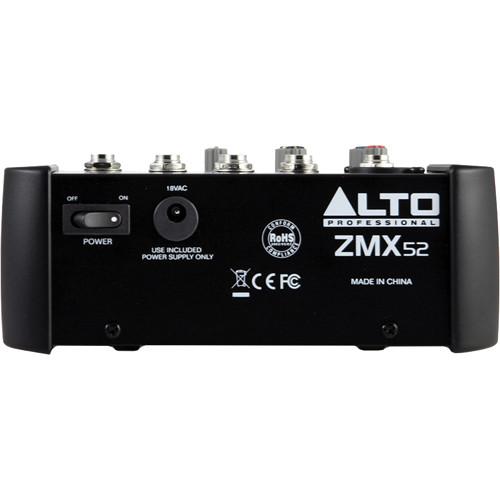

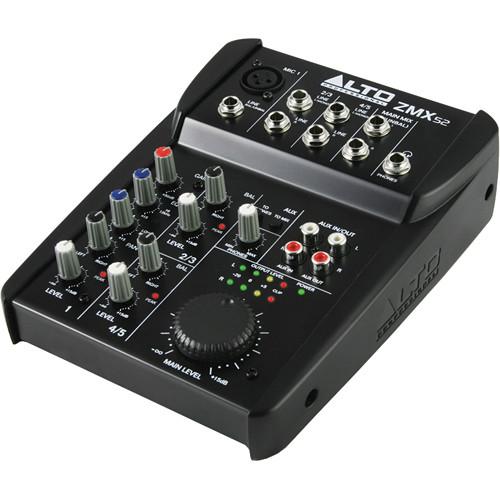

Product description The Alto Professional Zephyr ZMX52 5-Channel Compact Audio Mixer is a small format 5-channel audio mixer. It features one balanced XLR input with +18V phantom power, dual stereo 1/4" TRS stereo inputs, one RCA stereo aux input, one stereo RCA aux output, two 1/4" TRS main outputs, and one 1/4" headphone output.
For controls, the mixer includes rotary knobs for input levels, gain, pan, microphone high EQ, microphone low EQ, and main level output. LED indicator lights show you when the mixer is on and when the input channels are peaking. A pair of LED indicator meters show you when the left and right signals are clipping. Two buttons allow you to assign the Aux input signal to either the main output mix or to the headphone output. UPC: 816311010153 In the Box Alto Professional Zephyr ZMX52 5-Channel Compact Audio Mixer Power Adapter Quickstart Guide Limited 1-Year Warranty Quick-Start Guide PDF 2.1mbysrxscrsedbqaauasxxdssu Table of Contents
|
Upload User Manual
Have you got an user manual for the Alto Professional Zephyr ZMX52 5-Channel Compact Audio Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAlto Professional ZMX52 Specs | Input | 1 x balanced XLR
2 x balanced stereo 1/4" TRS
1 x stereo RCA aux in | | Output | 2 x 1/4" stereo
1 x 1/4" headphone out
1 x stereo RCA aux out | | Frequency Response | All inputs: 20 to 22,000 Hz (±1 dB) | | THD + N | All inputs: ≤0.005% (at 4 dBu, 1,000 Hz) | | Gain Range | Mic inputs (Channel 1): 0 to 44 dB
Line input (Channel 1): 12 to 30 dBu
Line inputs (Channels 2 to 5): 0 dBu | | Maximum Voltage Gain | 74 dB (mic input to main mix output and aux output)
80 dB (mic input to phones output)
30 dB (line input to main mix output) | | SNR | All inputs: ≥110 dBu | | Impedance | Mic inputs: 3.9 kΩ
All other inputs: ≥10 kΩ
Aux output : 1 kΩ
All other outputs: 120 Ω | | Equalization | High: ±15 dB at 12,000 Hz
Low: ±15 dB at 80 Hz | | Crosstalk | Adjacent inputs: ≤-80 dB @ 1 kHz
Inputs to outputs: ≤-75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right) | | Main Output | Aux output, Phones output: 0 dBu, unbalanced, 1/4" jacks
Max output: +22 dBu, unbalanced, 1/4" jacks
Bus noise: ≤-90 dB at 20 to 22,000 Hz (channel and main mix levels at 0 dB, others at minimum) | | Phantom Power | 18 V | | Power Supply | 18 V, 500mA | | Power Consumption | 9 W | | Dimensions (W x D x H) | 5.1 x 8 x 1.5" (128 x 204 x 38 mm) | | Weight | 1.65 lb (0.75 kg) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.8 x 10.3 x 1.8" |
